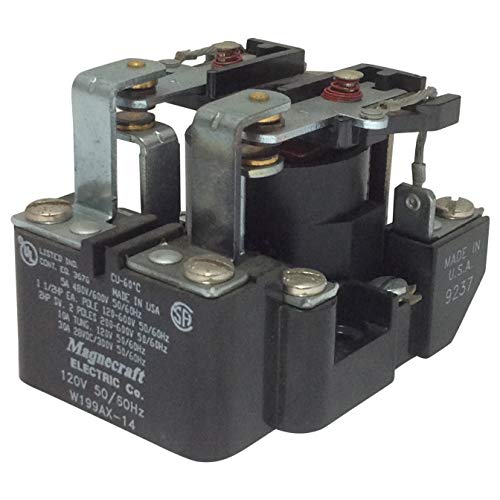

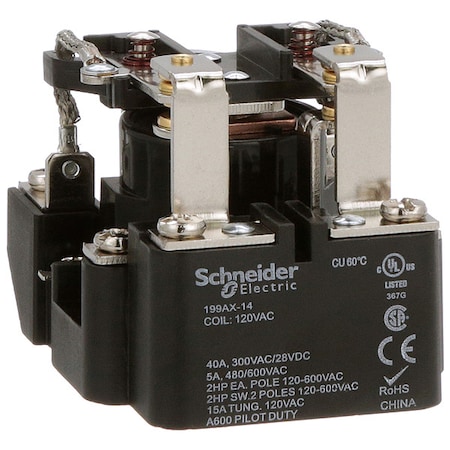

Magnecraft Power Relay DPDT 30A 120VAC W199AX-14

Magnecraft Power Relay DPDT 30A 120VAC W199AX-14zoom

Attributes

Key Value
AC Contact Rating - Rel.40A @ 300V
Alternate Mfr Part Numb.P991097E
Amperage Rating40A
Body Depth3.13 in
Body Depth - Relay3.12 in
Body Height3.13 in
Body Height - Relay2.31 in
Body Width2.5 in
Body Width - Relay2.5 in
BrandSchneider Electric
Coil Current40 A
Coil Resistance290 Ohms
Coil TypePower
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts120V AC
Contact Current Rating40 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy, Gold Flas.
Contact OperationDPDT
Contact TerminationScrew Terminals
Contact Voltage Rating300 VAC
Control Voltage120
Country of Origin00 - Unknown
Current Rating40 A
Current Stock197
DC Contact Rating - Rel.40A @ 28V
Dielectric Rating2200 V (RMS) (Coil to C.
Dimensions2.31"H, 2.50"W, 3.12"D,.
Electrical ConnectionScrew
Electrical Connection -.Screw
FunctionGeneral Purpose
Height58.67 mm
HP @ 120V1 1/2
Hz50/60
In-stock2000
International ShippingNo
ItemOpen Power Relay
Item - RelayOpen Power Relay
Length79.2 mm
Maximum Operating Tempe.50 ?C
Minimum Operating Tempe.-40 ?C
MountingPanel
Mounting - RelaySurface
Mounting StyleChassis
Mounting TypePanel Mount
Mpn199AX-14
Number of Pins - Relay8
Overall Depth2.31 in
Overall Height - Relay2.31 in
Part # Aliases199AX-14
Power Consumption10 VA/4 W
Power Consumption - Rel.10.0 VA
Primary TypePower Relays
Product CategoriesGeneral Purpose / Indus.
Product Header199 Series Open Style P.
Relay TypeElectromechanical
RoHs StatusLead free/RoHS Compliant
Series199 Series, W199
SKUZO-G3232941
StandardsUL ; CSA ; CE
SubCategoryElectrical
Switching Voltage600 V
TerminationScrew
TypePower Relays
Voltage Rating277 V
Width63.5 mm
