- mpnPANBSN18-C
- brandname: Panduit
- manufacturername: Panduit

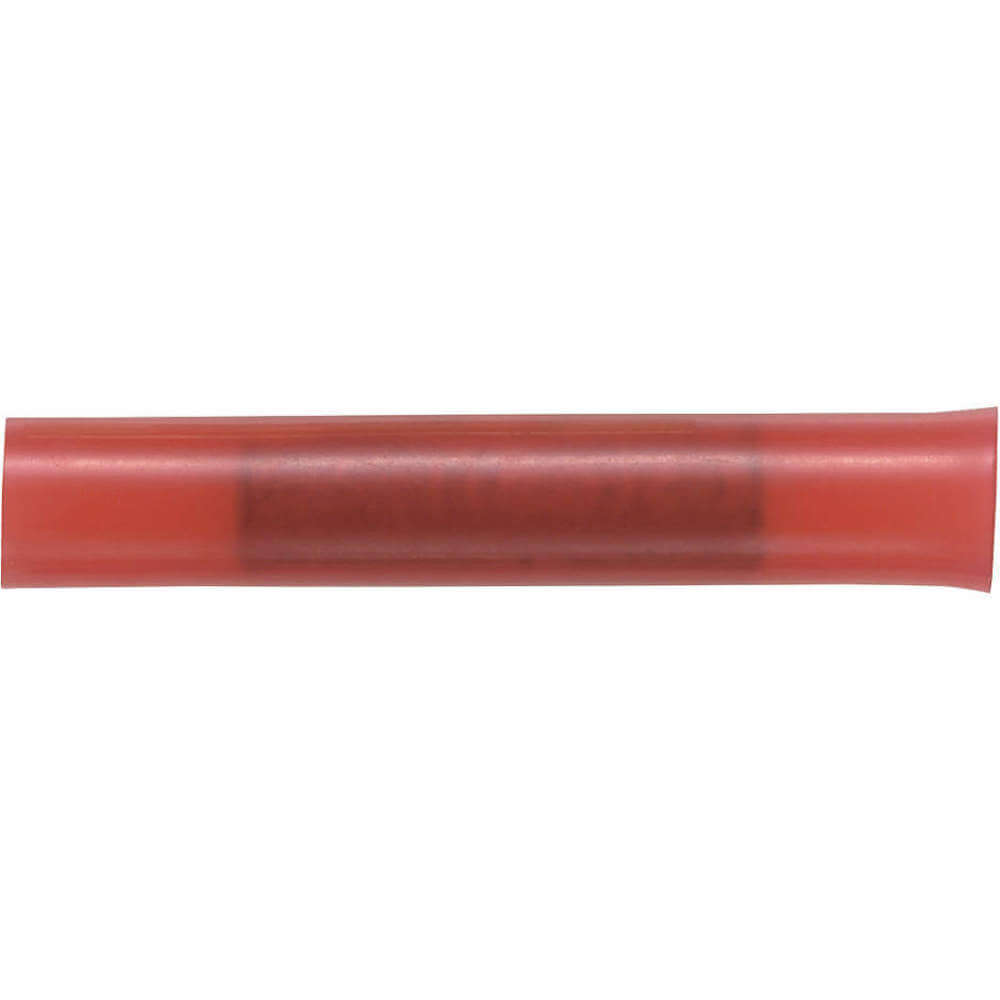

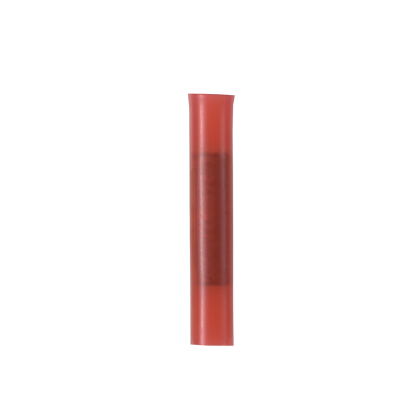

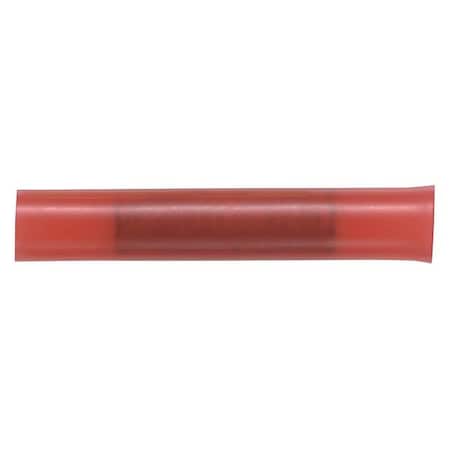

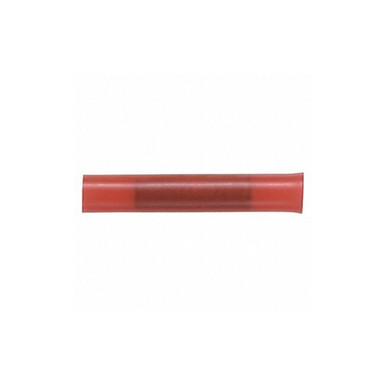

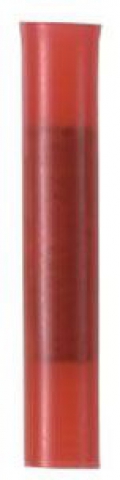

Panduit BSN18-C Butt Splice, Nylon Insulated, 22 - 18 AWG Wire Range, 1.15-Inch Length, Red (100-Pack)
- Brand: Panduit
- PartNumber: BSN18-C
- Model: BSN18-C
- Color: Red
- Size: 100-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Alternate Part No. | 644-BSN18-C |
| Angle | Straight |
| Application | RoHS Directive is not a. |
| Approval | Approval |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Inner Diameter | Barrel Inner Diameter |
| Barrel Inside Dia. | 0.13 in |
| Barrel Inside Diameter | 0.13 in |
| Barrel Outer Diameter | Barrel Outer Diameter |
| Barrel Outside Diameter | 0.2 in |
| Barrel Type | Standard |
| Base Material | Copper |
| Base Product Number | BSN18 |
| Body Material | Copper |
| Brand | Pan-Term?, Panduit, Pan. |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Carton | 100 |
| Catalog Number | BSN18-C |
| Category | Connectors, Interconnec. |
| Category Description | Terminals |
| class | One Way |
| Classification | Terminals |
| Color | Red |
| Color Code | Red |
| Color Family | Red |
| Conductor Range | 22 AWG - 18 AWG |
| connection | Standard |
| Connection | Standard |
| Connection Material | Tin-Plated Copper |
| Connection Type | Crimp |
| connector | RoHS Directive is not a. |
| Connector Type | Butt Splice |
| Copper Conductor Size (. | #22 - #18 |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin 2Digit | MX |
| CSA Temperature Rating . | 105 |
| CSA Temperature Rating . | 221 |
| Current Stock | 42 |
| Description | BSN18C Nylon-Ins Butt S. |
| EAN | 00074983830008 |
| ECCN | EAR99 |
| extra long description | PAN BSN18-C Pan-Term? B. |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Fixture Type | 600 |
| For Maximum Wire Insula. | 0.115 in |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| Gross Weight | 0.005 lbs |
| GTIN | 00074983830008 |
| GTIN Carton | 50074983830003 |
| GTIN Package | 00074983830008 |
| Hazardous Material Flag | N |
| Insulated | Insulated |
| insulation | Nylon |
| Insulation | Fully Insulated, Insula. |
| Insulation Color | Red, Insulation Color |
| Insulation Diameter | 0.115 " |
| Insulation Material | Nylon |
| Insulation Type | Insulation Type, Nylon |
| International Shipping | No |
| Item | Splice Connector |
| Item Number | BSN18-C |
| Item Type | Butt Splice |
| Lead Content Indicator | N |
| Length | 29.21 mm |
| Long Description | Panduit BSN18-C Nylon I. |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part No. | BSN18-C |
| Manufacturer Part Number | BSN18-C |
| Manufacturers Part Numb. | BSN18-C |
| Material | Copper, Nylon |
| Max Temp | 221 ?F |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Copper Conducto. | #18 |
| Maximum Copper Conducto. | #18 |
| Maximum Insulation Diam. | Maximum Insulation Diam. |
| Maximum Metric Conducto. | 1 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Size | 18 AWG |
| media | Yes |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 100 |
| Min. Order UOM | Piece |
| Minimum Copper Conducto. | #22 |
| Minimum Copper Conducto. | #22 |
| Minimum Metric Conducto. | 0.5 |
| Minimum Wire Size | 22 AWG |
| Mounting | 9/32 |
| Mpn | BSN18-C |
| Net Weight | 0.005 lbs |
| Number of Wire Entries | 2 |
| Overall Length | 1.15 ", 1.15 in |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Overall Width | 0.2 in |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Package | Bulk |
| Package Quantity | 100 |
| Packaging | 100 per Package |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Part Status | Active |
| Plating Material | Tin |
| Product | Splices |
| Product Category | Terminals |
| Product Segment | IEI |
| Product Series | Pan-Term Splices |
| Product Type | Butt Splice, Pan-Term? . |
| Rated Voltage | 600V |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| Seam | Brazed |
| Series | BSN, Pan-Term BSN Serie. |
| Size | 22 - 18 |
| SKU | ZO-G0059958 |
| Standard | C22.2 No 65 |
| standard | C22.2 No 65 |
| Standard Carton Volume . | 0.0632 |
| Standard Carton Weight . | 3.4000 |
| Standard Package Volume. | 0.0063 |
| Standard Package Weight. | 0.3400 |
| Standards | CSA C22.2 No. 65, UL 48. |
| Standards Met | BSN18-C |
| Std Carton Height In | 4.4 |
| Std Carton Height MM | 111.76 |
| Std Carton Length In | 10.3 |
| Std Carton Length MM | 261.62 |
| Std Carton Width In | 4.25 |
| Std Carton Width MM | 107.95 |
| Std Ctn Qty | 1000 |
| Std Package Height In | 1.9 |
| Std Package Height MM | 48.26 |
| Std Package Length In | 4.35 |
| Std Package Length MM | 110.49 |
| Std Package Width In | 1.95 |
| Std Package Width MM | 49.53 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. UOM | Piece |
| Strip Length | 5/16 in |
| sub brand | Pan-Term?? |
| Sub Brand | Pan-Term? |
| SubCategory | Electrical |
| Temperature Rating | 221 Degrees Fahrenheit . |
| Terminal Material | Copper |
| Terminal Type | Splice - Butt, Butt Spl. |
| Termination | Crimp |
| Termination Style | Crimp |
| Type | Butt Splice, Insulated,. |
| UL Temperature Rating (. | 105 |
| UL Temperature Rating (. | 221 |
| Unit Weight | 154.221 g |
| UNSPSC | 39121409, 39121449 - Wi. |
| UOM EA PK | PK |
| UPC | 07498383000, 0749838300. |
| UPC Code | 074983830008 |
| UPC ID | UPC ID |
| Voltage Rating | 600, Voltage Rating |
| Volts | 600 V |
| Weight per each | 0.34 |
| Width | 0.2 in. |
| Wire Gauge | 18-22 AWG, 22-18 |
| Wire Range | 22 to 18 AWG, Wire Range |
| Wire Size | 22-18 AWG, 18-22 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Size Range | 22 AWG - 18 AWG |
| Wire Strip Length | 0.281 " |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
