Reelcraft D9300 OLSBW

mpnD9300 OLSBW
brandname: Reelcraft
manufacturername: Reelcraft

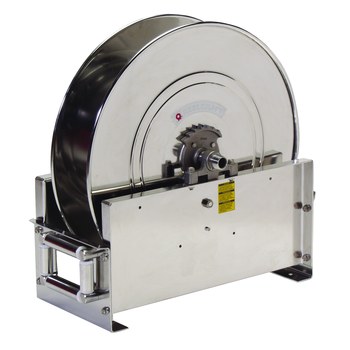

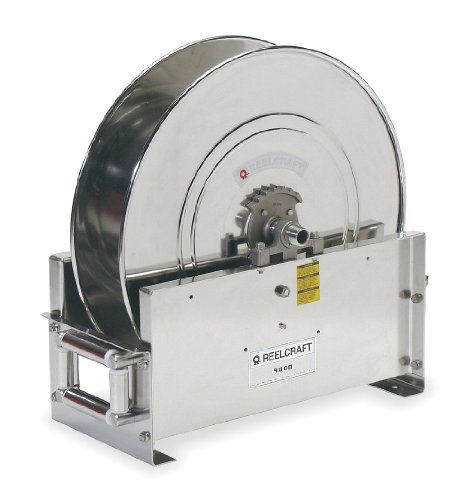

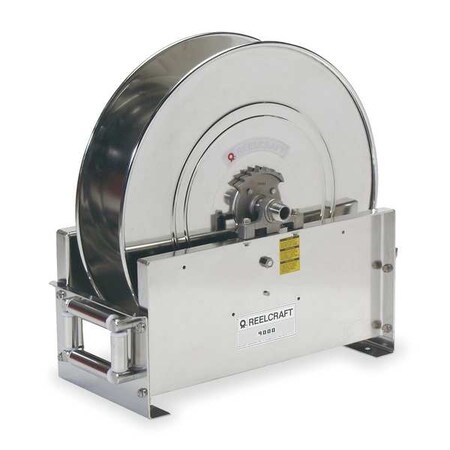

Reelcraft D9300 OLSBW Stainless Steel Reel, 75' Air/Water Hose Not Included

Brand: Reelcraft
PartNumber: D9300 OLSBW
Model: D9300 OLSBW
PackageQuantity: 1
Binding: Misc.
Manufacturer: Reelcraft
Label: Reelcraft

Attributes

Key	Value
Application	Food Processing, Pre-Ri.
Availability:	Special Order
Base Motion Type	Stationary
Bearing Construction	Permanently Lubricated
Bearings	Permanently Lubricated
Brand	Reelcraft Industries
Brand:	Reelcraft?
Color	Silver
Corrosion-Resistant	Yes
Country of Origin (subj.	UNITED STATES
Country:	UNITED STATES
Dimensions:	26-3/8 in H x 16-3/4 in.
Domestic/Import:	Domestic
Drive Type	Spring, Spring Return
Drive Type - Hose Reels	Spring Return
Drive Type:	Spring
Duty Rating	Heavy Duty
Enclosed	No
Enclosed Reel	No
Fasteners Included	No
Features	Stainless Steel Reel
Finish - Hose Reels	Stainless Steel
For Dual Hose	No
Ft	75'
Hose Capacity	75 ft (3/4 in I.D.)
Hose Capacity:	75 ft
Hose Ends	3/4 in (F)NPT
Hose Included	Hose Not Included, No
Hose Inside Dia.	3/4 in
Hose Inside Diameter	3/4 in
Hose Length	75 ft
Hose Outlet	3/4 in (M)NPT
Hose Outside Diameter	1.075 in
Hose Reel Outlet	3/4 NPT(F)
Hose Reel Primary Appli.	Oil
Hose Reel Type	Free Standing Hose Reel.
Housing Material	Stainless Steel
I.D.	3/4"
Includes Hose	No
Includes Leader Hose	No
Inlet	3/4 (F)NPTF, 3/4" NPT(F)
Item	Spring Return Hose Reel
Latch	Locking
Latch Type	Spring Loaded
Manufacturer:	Reelcraft Industries
Material	Stainless Steel
Max. Pressure	500 psi
Max. Temp.	210 Degrees F
Maximum Operating Press.	500 psi
Maximum Operating Tempe.	210 Degrees F
Maximum Working Pressure	500 psi
Media - Hose Reels	Air, Water
Minimum Operating Tempe.	-25 Degrees F
Mount Base Height	24 1/8 in
Mount Base Width	12 in
Mount Hole Diameter	7/16 in
Mounting	Bench and Truck, Ceilin.
Mounting Hole Center to.	7 3/4 in
Mounting Hole Center to.	22 1/4 in
MPN:	D9300 OLSBW
Number of Mount Holes	4
O.D.	1.188"
Outlet	3/4" NPT(F)
Overall Dimensions	26 1/4 in L x 16 3/4 in.
Overall Height	26 3/8 in
Overall Length	26 1/4 in
Overall Width	16 3/4 in
Pedestal Type	Dual Pedestal
Pressure	500 psi
Pressure Rating:	500 psi
Reel Color	Silver
Reel Diameter	15 1/2 in
Reel Diameter:	3/4 in
Reel Finish	Polished
Reel Inlet	3/4 in (F)NPT
Reel Material	Stainless Steel
Reel Width	16 3/4 in
RSPID:	21064968
RSPN:	21064968
Seal Type	Viton(R)
Series:	9000
Speed Limited Retraction	No
Swivel Inlet Gender	Female
Swivel Inlet Size	3/4 in
Swivel Inlet Thread Size	3/4 in - 14
Swivel Inlet Type	NPT
Swivel Material	Nickel Plated Steel
Swivel Outlet Gender	Female
Swivel Outlet Size	3/4 in
Swivel Outlet Thread Si.	3/4 in - 14
Swivel Outlet Type	NPT
Twin Hose Compatible	No
Type	Air/Water
UNSPSC:	40142022
UPC:	00699567002581
Weight	53 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Resourceful Supply	D9300 OLSBW	1789.2	1	In Stock		Reelcraft Industries		1789.2 @ 1
Global Industrial	B250906	2052.0	1	In Stock		Reelcraft		2052.0 @ 1
sustainablesupply.com	C1689637	2764.7	1	In Stock		Reelcraft	110.0	2764.7 @ 1
Zoro	G8532002	2920.55	1	In Stock	15	Reelcraft	110.0	2920.55 @ 1
intlairtool.com	D9300 OLSBW	3129.19	1	In Stock	49	Reelcraft	116.0	3129.19 @ 1
rshughes.com	699567-00258	3150.0	1	In Stock	14	Reelcraft Industries		3150.0 @ 1
