Square D HDA36060U33X

mpnHDA36060U33X
brandname: SquareD
manufacturername: SquareD

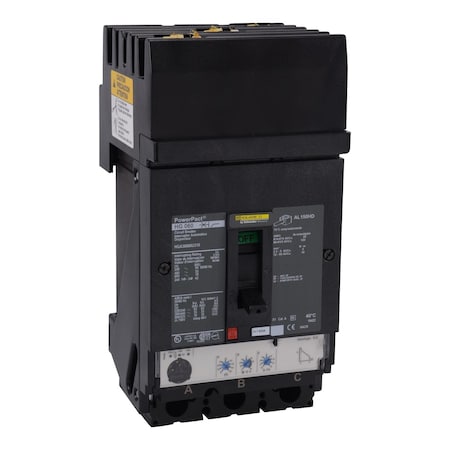

Square D HDA36060U33X Circuit Breaker, H-Frame, Micrologic 3.2S Trip, 3-Pole, 600V, 60A

Square D HDA36060U33X Circuit Breaker, H-Frame, Micrologic 3.2S Trip, 3-Pole, 600V, 60A

zoom

Brand: Square D
PartNumber: HDA36060U33X
Color: Black
PackageQuantity: 1
Manufacturer: Schneider Electric Group
Label: Schneider Electric Group

Attributes

Key	Value
Actuator Type	Toggle
Amperage	60
Amperage Rating	60
Approval	CE, UL, CSA, NEMA, NOM,.
AWG Range	AWG 14...AWG 3/0 alumin.
Brand	Square D, Square D by S.
Breaker Feature	Mercury Free, PVC Free
Catalog Number	HDA36060U33X
Color	Black
Color Family	Black
Connection	AWG 14...AWG 3/0 ALUMIN.
Connection Type	I-Line Style Plug-In
Country of Origin	United States, US - Uni.
Country of Origin (subj.	United States
Current Rating	60A
Depth	86 mm
ECCN	EAR99
Frame	D
Frame Type	HDA
Functions	LSI - Long Time, Short .
Height	4.5 in., 6.42
Interrupt Rating	14 kA
Interrupting Rating	18kAIC at 480VAC, 14kAI.
Item	Circuit breaker,PowerPa.
Item Type	CIRCUIT BREAKER
Length	16 mm, 4.8 IN
Made in USA	Yes
Manufacturer	Schneider Electric
Max Wire Size	AWG 3/0, Cu/Al
Min Wire Size	AWG 14, Cu/Al
Mounting Type	I-Line Bracket, I-Line
No. of Poles	3
Number of Poles	3
Operating Temperature	40 A Degrees C
Phase	3
Poles	3
Protection	Solid State
Rated Voltage	690V AC 50/60 Hz IEC 60.
Series	PowerPacT H, PowerPact
Special Features	I-Line
Standard	UL \|\| CSA \|\| NEMA \|\| NO.
Standards	RoHS, REACh, HACR
Temperature Rating	-2 to 70 ?C
Terminal Connection	Load Side Lug
Torque	5-5 N.m 2.5-6 mm? (AWG .
Trip Range	60 A
Trip Type	ELECTRONIC, STANDARD, M.
UNSPSC	39121616
UPC	785901674306
Voltage	600VAC
Voltage Rating	600 V AC
Width	104 mm, 4.09
Wire Gauge	AWG 14 to AWG 3/0, Alum.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	gordonelectricsupply.com	HDA36060U33X	865.0	1	In Stock	10	SQUARE D		865.0 @ 1
	Zoro	G3979890	931.08	1	In Stock	70	Schneider Electric	10.0	931.08 @ 1
	Radwell	HDA36060U33X	940.0	1	In Stock		SCHNEIDER ELECTRIC SQUARE D		940.0 @ 1
	Graybar	25641276	1065.9936	1	In Stock		Square D (Schneider Electric)		1065.9936 @ 1
	superbreakers.com	HDA36060U33X	1202.73	1	3		Square D		1202.73 @ 1
	simplybreakers.com	HDA36060U33X	1422.99	1	In Stock		Schneider Electric		1422.99 @ 1
	steinerelectric.com	PDW~11083474	1512.0	1	In Stock		Square D?		1512.0 @ 1
	crescentelectric.com	119730	1552.94	1	In Stock		Square D by Schneider Electric		1552.94 @ 1
