- mpn902B
- brandname: T.B. Woods
- manufacturername: T.B. Woods

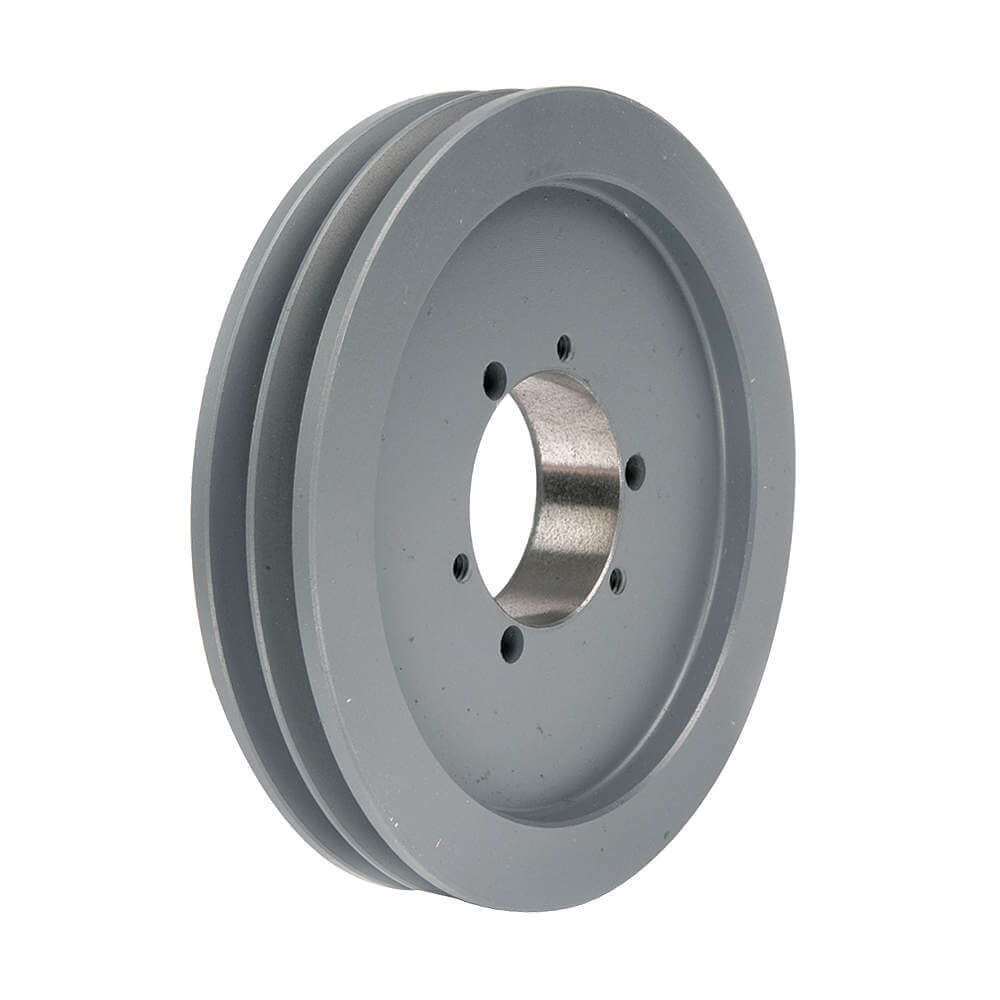

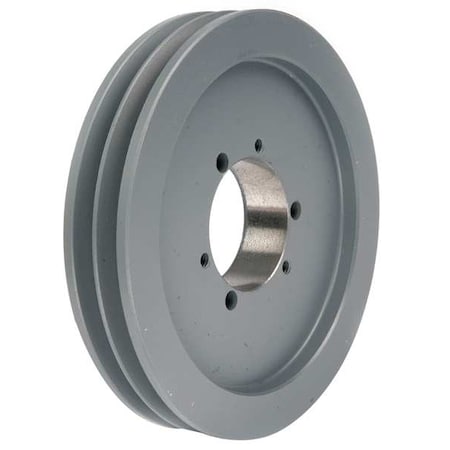

V-Belt Pulley,Detachable,2Groove,9.35"OD
- Brand: TB Woods
- PartNumber: 902B
- Model: 902B
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Tb Wood'S
- Label: Tb Wood'S
Attributes
| Key | Value |
|---|
| 3L Pitch Diameter | Not Applicable |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 8.6 in, 8.85 in |
| 4L, A, or AX Belt Pitch. | 8.6 in |
| 5L Pitch Diameter | 9.413 in, 9 in |
| 5L, B, or BX Belt Pitch. | 9 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 8.6 in, 8.85 in |
| AX Pitch Diameter | 8.6 in, 8.85 in |
| B Pitch Diameter | 9.413 in, 9 in |
| Balance | Standard, 1 plane |
| Belt section | A-B |
| Belt Section and Type (. | 4L Classical, 4L Cogged. |
| Bore type | Quick disconnect bushing |
| Brand | Tb Woods |
| Bushing | SK |
| Bushing Required | SK |
| BX Pitch Diameter | 9.413 in, 9 in |
| C Pitch Diameter | Not Applicable |
| Construction | Arm |
| Current Stock | 35 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 9 |
| Dimension | 1.88 |
| Face Diameter | 9.35 in |
| Face width | 1.75 |
| Face Width | 1.75 in |
| Fits Shaft Dia. | 1/2 in to 2-1/2 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX, 4. |
| For Bushing Size | SK |
| For Bushing Type | Quick Detachable |
| For V-Belt Section | 4L, A, AX, B, BX |
| For V-Belt Type | Banded, Classical, Cogg. |
| Hub location | 0.44 |
| I.D. | 7.62 |
| Industry Number | 902B |
| Inertia WR? | 112 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Length through Bore | 1 7/8 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | Cast Iron |
| Maximum Bore Diameter | 2 1/2 in |
| Minimum Bore Diameter | 1/2 in |
| Mpn | 902B |
| Number of Grooves | 2 |
| Number of grooves | 2 |
| Number of Steps | 2 |
| O.D. | 9.35 |
| Outside Diameter | 9.35 in |
| Overall Width | 2 in |
| Pitch diameter | 9.41 |
| Pitch Diameter | Not Applicable, 8.6 in,. |
| Pitch Diameter for V-Be. | 4L: 8.85 in / 5L: 9.413. |
| Prop 65 | Warning: This product c. |
| Pulley Bore Type | Quick Detachable Bushed. |
| Pulley Construction | Arm |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 9.35 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 2680 |
| Set Screw Included | No |
| SKU | ZO-G1399404 |
| SubCategory | Power Transmission |
| TBW group no. | 11110 |
| UPC | 698672120456 |
| Weight | 13.4 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C2682878 | 92.89 | 1 | In Stock | | TB Wood's | 13.95 | 92.89 @ 1 |
 | Zoro | G1399404 | 98.59 | 1 | 42 | | Tb Woods | 13.95 | 98.59 @ 1 |
 | Guardian | 82245259 | 109.51 | 1 | In Stock | | TB Wood's | | 109.51 @ 1 |
| grainger.ca | WWG6UDR6 | 110.18460886 | 1 | In Stock | | TB WOOD'S | 13.95 | 110.18460886 @ 1 |
 | National Supply Network | 82245259 | 114.34 | 1 | In Stock | | TB Wood's | | 114.34 @ 1 |
 | simsupply.com | ZO-G1399404 | 114.46 | 1 | 35 | | Tb Woods | | 114.46 @ 1 |
 | MRO Supply | 346015 | 137.37 | 1 | In Stock | | TB Woods | | 137.37 @ 1 |
| us.rs-online.com | 73931400 | 152.4 | 1 | In Stock | | TB Wood's (Altra) | | 152.4 @ 1 |
 | Raptor Supplies | AF2HTU | 191.3461875 | 1 | In Stock | | TB WOODS | | 191.3461875 @ 1 |
| motionindustries.com | 04670654 | 195.23 | 1 | In Stock | | TB Woods (Altra) | | 195.23 @ 1 |
