TB Woods 902C

B004KA9ZVQ

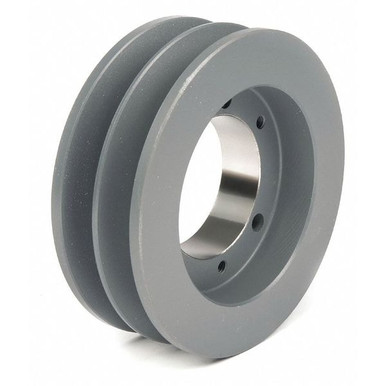

TB Woods 902C Classical V-Belt Sheave, C Belt Section, 2 Grooves, SF Bushing required, Cast Iron, 9.40" OD

TB Woods 902C Classical V-Belt Sheave, C Belt Section, 2 Grooves, SF Bushing required, Cast Iron, 9.40" ODzoom

Attributes

Key Value
3L Pitch DiameterNot Applicable
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch DiameterNot Applicable
5L Pitch DiameterNot Applicable
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch DiameterNot Applicable
AX Pitch DiameterNot Applicable
B Pitch DiameterNot Applicable
BalanceStandard, 1 plane
Belt sectionC
Belt Section and Type (.C Classical, C Cogged, .
Bore TypeBushed
Bore typeQuick disconnect bushing
BrandTb Woods
BushingSF
Bushing RequiredSF
BX Pitch DiameterNot Applicable
C or CX Belt Pitch Dia.9.0 in
C Pitch Diameter9.4 in
Component WR2 (lbs ft2)1.55
ConstructionWeb
Current Stock2
CX Pitch Diameter9.4 in
Datum diameter9
Dimension2
Dimension (E)0.13
Dimension (L)2.00
Dimension (M)0.25
Face Diameter9.4 in
Face Width2.38 in
Face width2.38
Face width (in)2.38
Fits Shaft Dia.1/2 in to 2-15/16 in
For Belt FamilyClassical, Classical Co.
For Belt Trade SizeC, CX
For Bushing SizeSF
For Bushing TypeQuick Detachable
For V-Belt SectionC, CX
For V-Belt TypeBanded, Classical, Cogg.
Groove cross section se.C
Hub location0.81
Hub location (in)0.81
I.D.7.25
Industry Number902C
Inertia WR?148
Inside diameter (in)7.25
International ShippingNo
ItemStandard V-Belt Pulley
Length through Bore2 in
MaterialCast Iron
Material typeCI
Max RPM2660
Maximum Bore Diameter2 15/16 in
Minimum Bore Diameter1/2 in
Mpn902C
Number of Grooves2
Number of grooves2
Number of Steps2
O.D.9.4
Outside Diameter9.4 in
Outside diameter (in)9.40
Overall Width2 3/8 in
Pitch diameter9.4
Pitch DiameterNot Applicable
Pitch Diameter for V-Be.C: 9.4 in
Pulley Bore TypeQuick Detachable Bushed.
Pulley ConstructionWebbed
Pulley MaterialCast Iron
Pulley Outside Dia.9.4 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit2660
Set Screw IncludedNo
SKUZO-G3467721
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672030885
Weight18.1 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3467721129.99112Tb Woods18.28129.99 @ 1
thumbzoomsustainablesupply.comC2682990165.321In StockTB Wood's18.28165.32 @ 1
thumbzoomsimsupply.comZO-G3467721167.3412Tb Woods167.34 @ 1
thumbzoombscsource.com82245606189.791In StockTB Wood's189.79 @ 1
thumbzoomNational Supply Network82245606210.161In StockTB Wood's210.16 @ 1
Grainger5YKN5212.01130TB WOOD'S212.0 @ 1
thumbzoomGuardian82245606216.161In StockTB Wood's216.16 @ 1
thumbzoomMRO Supply347657268.331In StockTB Woods268.33 @ 1
us.rs-online.com73931401297.681In StockTB Wood's (Altra)297.68 @ 1
thumbzoomRaptor SuppliesAE7HRY345.13824151In StockTB WOODS345.1382415 @ 1
motionindustries.com00701398381.331In StockTB Woods (Altra)381.33 @ 1
