TE Connectivity 326801

B00KSBSN0A

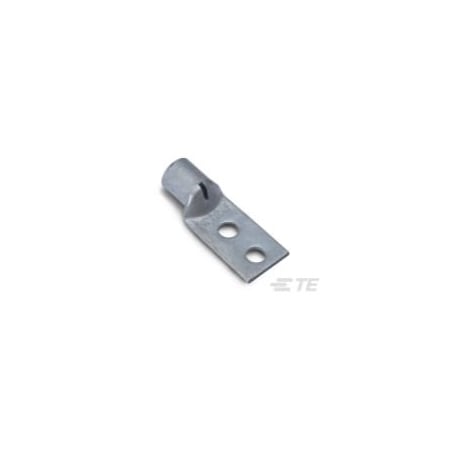

TE Connectivity Part Number 326801

TE Connectivity Part Number 326801zoom

Attributes

Key Value
Barrel Inside Dia.0.513 in
Base Product Number3268
BlindmateNo
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.109?in?]
Circuit ApplicationSignal
Color-
ConnectorPrinted Circuit Board
Connector StylePlug
Connector SystemCable-to-Board
Contact Base MaterialBrass or Beryllium Copp.
Contact Current Rating .5
Contact FinishTin
Contact MaterialCopper
Contact Plating MaterialTin
Contact Size20
Contact StylePin
DescriptionCONN TERM RECT 2/0 AWG .
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID0.513" (13.03mm)
Diameter - Barrel OD0.646" (16.41mm)
Diameter - Ring ID0.390" (9.91mm)
Digi-Key Part Number326801-ND
FeaturesInspection Slot, -
InsulationNon-Insulated
Insulation ColorGray
Insulation TypeNon-Insulated
Length - Overall3.120" (79.25mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.326801
Manufacturer Standard L.28 Weeks
Max. Temp.221 Degrees F
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Non-MagneticNo
Number of Positions37
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
Overall Length3.1201 in
PackageBulk
Package Quantity1
PCB Contact Termination.Nickel
PCB Mount OrientationRight Angle
Post Diameter.76?mm?[?.03?in?]
Power/Signal/Coax Combi.No
Product StatusActive
SealableNo
SeamStandard, Closed Barrel
SeriesAmpower Series, Ampower
Shell Size4
StandardsMIL-T-10727
Stud Size3/8 in
Stud/Tab Size3/8 Stud
Tab Thickness0.110" (2.79mm)
Terminal OrientationStraight
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue, Sta.
TerminationCrimp, Barrel
Width - Outer Edges0.970" (24.64mm)
Wire Gauge2/0 AWG
Wire Range2/0 AWG
Wire TypeStranded, Copper

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3268015.7310354TE CONNECTIVITY/AMP BRAND5.73 @ 10
Onlinecomponents.com3268018.1224131TE Connectivity / AMP8.122 @ 4
thumbzoomNewark52F49278.53250In StockAMP - TE CONNECTIVITY8.53 @ 250
Mouser571-3268018.671120TE Connectivity / AMP8.67 @ 1
thumbzoomDigi-Key2928619.1310394TE Connectivity AMP Connectors9.13 @ 10
us.rs-online.com7004236110.8225In StockTE Connectivity10.82 @ 25
thumbzoomZoroG30092709773.91In StockTe Connectivity73.9 @ 1
TE Connectivity1218440-474.081In StockTE Connectivity (TE)74.08 @ 1
AmazonSCB00FRBID2O127.711In StockTE Connectivity / AMP127.71 @ 1
