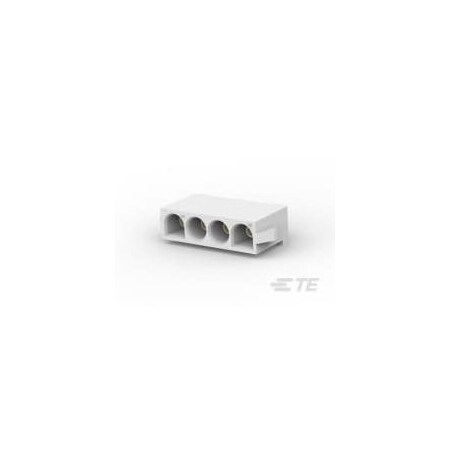

TE Connectivity 350761-5

mpn350761-5
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 350761-5

TE Connectivity Part Number 350761-5

zoom

Brand: TE Connectivity
PartNumber: 350761-5
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Application	Power
Applications	-
Color	Natural
connector gender	f
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	-
Contact Length - Post	0.155" (3.94mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.76 to 0.91 ?m
Contact Shape	Circular
Contact Type	Socket, Female Socket
current rating	19.00 a
Current Rating (Amps)	-
Fastening Type	Locking Ramp
Features	-
Flammability Rating	UL 94 V-2
For Use With	Plug Housing
Hole Center to Center	6.35 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.550" (13.97mm)
Insulation Material	Polyamide (PA), Nylon
Item	Header
item per pack	1
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-2
Max. Insulation Dia.	0.18 in
Max. Temp.	105?C
Max. Voltage	600V AC
Mfr	TE Connectivity AMP Con.
mounting type	pcb
Mounting Type	Through Hole
number of contacts	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
package	BAG
Package Quantity	1
Part Status	Active
Pitch - Mating	0.250" (6.35mm)
Row Spacing - Mating	-
Standards	CSA Certified; UL E2847.
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Solder
Termination	Solder
Voltage Rating	-
voltage rating	600.0 v

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Future Electronics	4071788	1.488	3000	80		TE Connectivity		1.488 @ 3000
	Waldom	TE CONNECTIVITY AMP BRAND 350761-5	1.51	40	4253		TE CONNECTIVITY/AMP BRAND		1.51 @ 40
	Tedss	2025009907	2.12	5	47		TE CONNECTIVITY		2.12 @ 5
	Hotenda	H1418555	2.48	1	47		TE Connectivity AMP Connectors		2.48 @ 1
	Newark	76AC6606	2.62	1	4253		AMP - TE CONNECTIVITY		2.62 @ 1
	Onlinecomponents.com	350761-5	3.72	1	3365		TE Connectivity / AMP Brand		3.72 @ 1
	AmazonTP	B07KTGYZ3T	33.14	1	47	1	TE Connectivity / AMP Brand		33.14 @ 1
	Zoro	G400939600	99.6	1	47		Te Connectivity		99.6 @ 1
