Tritan SS1603 2RS FM222

B07GCRHDVD

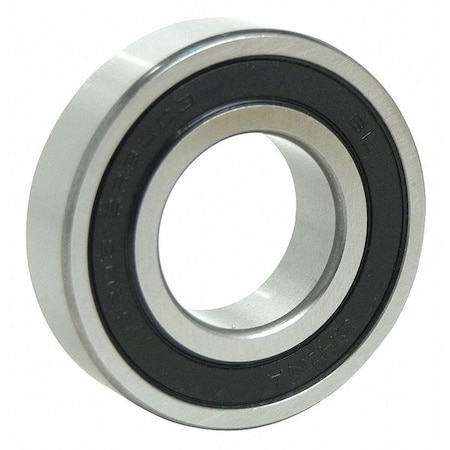

SS1603 2RS FM222 - TRITAN - Factory New!

SS1603 2RS FM222 - TRITAN - Factory New!zoom

Attributes

Key Value
ABEC Rating1
ABEC Tolerance1
Bearing Industry Number1603
Bearing MaterialStainless Steel
Bearing TypeDouble Sealed
Bore Dia.0.3125 in
Bore Diameter5/16 in
Bore Diameter Tolerance+0/-0.0003 in
Bore Tolerance+0/-0.0003 in
BrandTritan
Cage MaterialStainless Steel
Cage Material Grade304
ClosureDouble Sealed
Closure & Seal TypeDouble Sealed - Contact.
Country of Origin (subj.China
Current Stock38
Dynamic Load Capacity747 lb
Dynamic Radial Load Cap.575 lbf
Flange DiameterNot Applicable
Flange TypeNon-Flanged
For EnvironmentChemical, Food and Beve.
Includes Retaining RingNo
Industry NumberSS1603-2RS
International ShippingNo
ItemRadial Ball Bearing
Lubricant MaterialHigh Quality Food Grade.
LubricationGrease
Max. RPM19,800 RPM
Maximum Axial Load747 lbf
Maximum Speed22,000 RPM
Maximum Temperature350 Degrees F
Minimum Temperature-40 Degrees F
MpnSS1603 2RS FM222
Number of RowsOne
Outer Ring Width0.343 in
Outside Dia.0.875 in
Outside Dia. Tolerance+0/-0.0004 in
Outside Diameter7/8 in
Outside Diameter Tolera.+0/-0.0004 in
Resistance PropertiesCorrosion Resistant
Retaining Ring DiameterNot Applicable
Retaining Ring GrooveNo
Retaining Ring ThicknessNot Applicable
Ring MaterialStainless Steel
Seal MaterialRubber
Seal TypeContact
Seal/Shield TypeDouble Sealed
Single Row/Double RowSingle Row
SKUZO-G2726930
Static Load Capacity317 lb
Static Radial Load Capa.317 lbf
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range-40 Degrees to 350 Deg.
UPC888569045881
Width0.3438 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG27269309.72142Tritan0.039.72 @ 1
thumbzoomsimsupply.comZO-G272693015.62138Tritan15.62 @ 1
