Century ARB2026SV1

B007IC455O

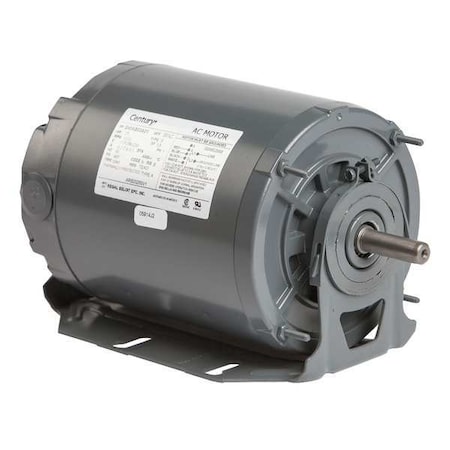

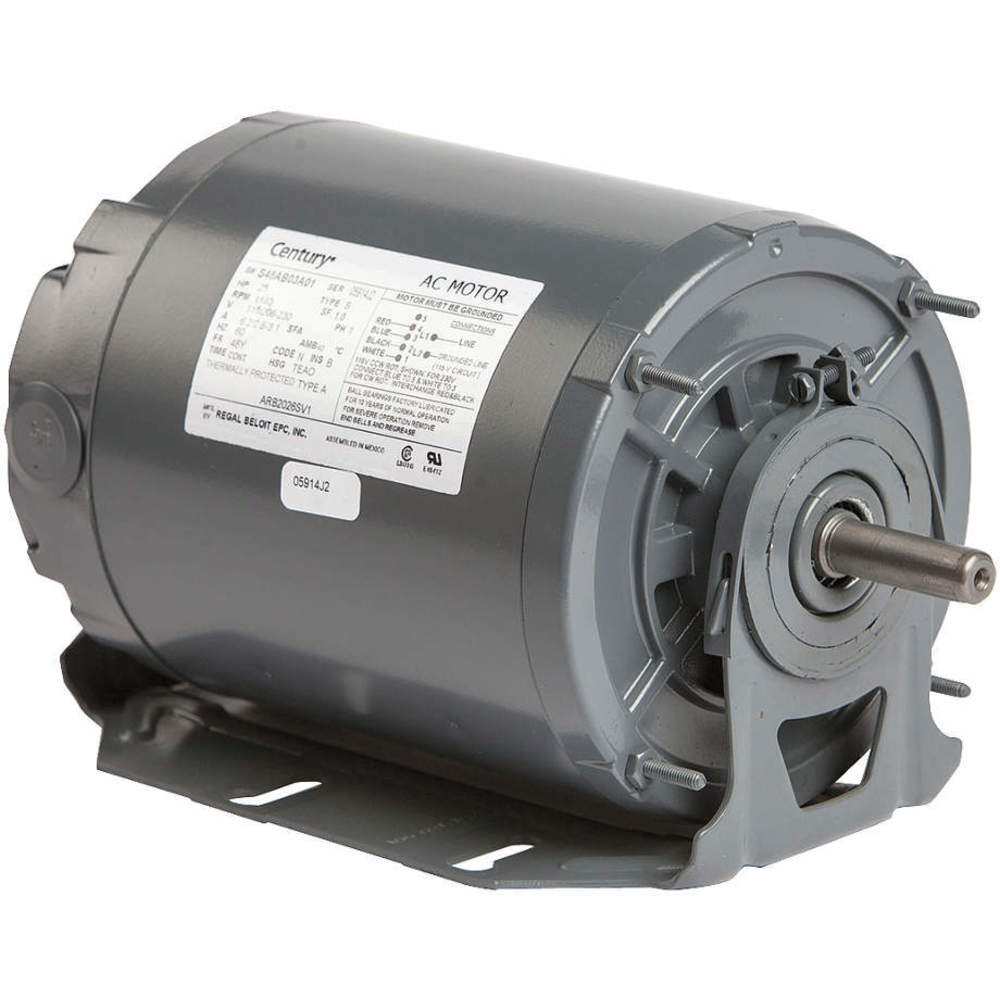

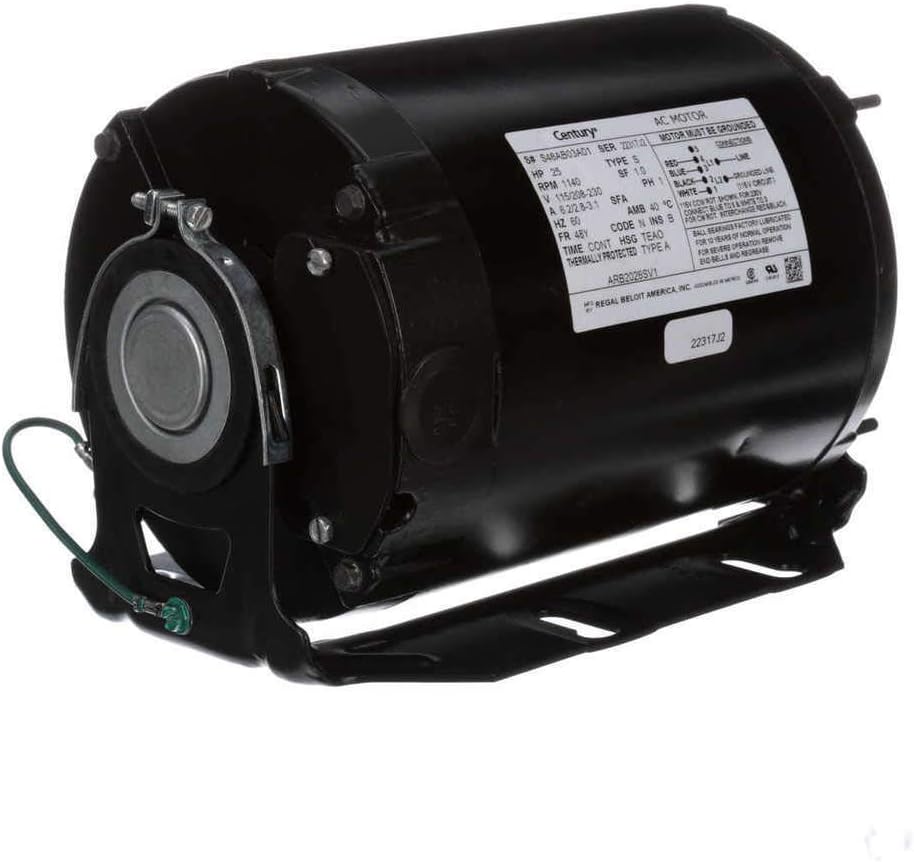

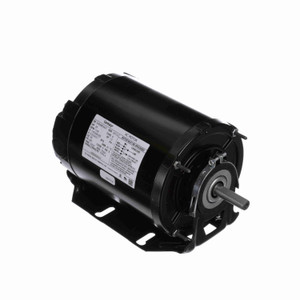

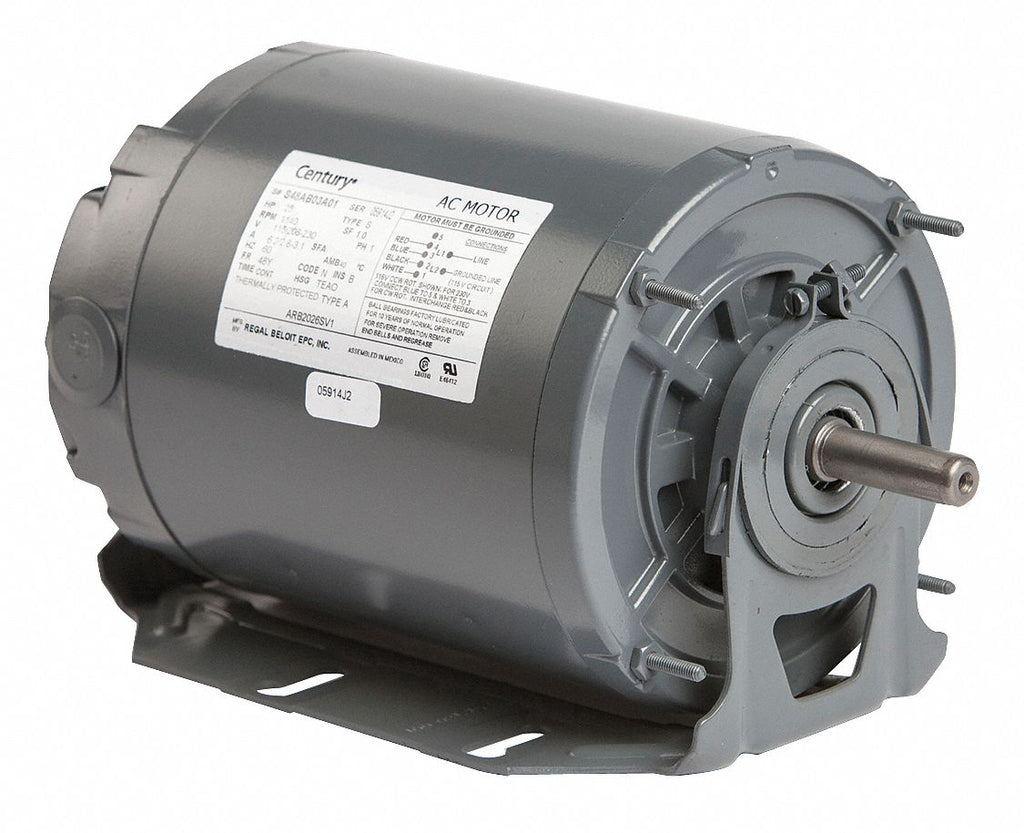

Century Motor Sp Ph 1/4 HP 1140 115/208-230V 48

Century Motor Sp Ph 1/4 HP 1140 115/208-230V 48zoom

Attributes

Key Value
Amps6.2/2.8-3.1, 6.2/2.8/3.1
ARB2026SV1 is listed in.A.O. Smith ARB2026S, A..
ASINB019W8H008
Batteries Required?No
BearingsBall
Body Dia.5 5/8 in
BrandCentury
C-Dimemsion10.15 (in.)
Catalog NumberARB2026SV1
CategoryElectric Motor
CEN
CSAY
Date First AvailableOctober 23, 2012
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Electrical TypeSplit Phase
EnclosureTEAO
Enclosure TypeTEAO (Totally Enclosed .
Frame48Y
Frame MaterialRolled Steel
Frame RemarksResilient Base
Frame Type48Y
Frequency60
GTIN696334276794
HP0.25, 1/4
Hz60
Insulation ClassB
International ShippingNo
IP Code-
ItemBelt Drive Motor
Item ConditionFACTORY NEW
Item model numberARB2026SV1
Item Package Quantity1
KVA Code-
Length Less Shaft8 1/2 in
ManufacturerCentury
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor DesignSplit-Phase
Motor Diameter5-5/8"
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Mounting TypeCradle Base
Motor Orientation-
Motor Service Factor1
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
mountingResilient Base
MountingCradle/Stud
Mounting Stud Pattern3 5/8 in x 3 5/8 in
Mounting TypeResilient Base
MpnARB2026SV1
Nameplate RPM1,140
No. of Speeds1
Number of Speeds1
ODE Bearing TypeBall
Overall Length10 1/8 in
Package Dimensions21 x 18 x 18 inches; 3..
Part NumberARB2026SV1
Phase1, Single
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
Product with faster shi.true
Resilient Ring Dia.2 1/2 in
RotationReversible
RPM1140, 1200
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
RPM Range1,101-1,200
Service Factor1
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension1.62 (in.)
Shaft Length1-5/8", 1 5/8 in
Shaft TypeFlat
Ship Weight19 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G1892466
Speeds1
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Voltage115/208-230V AC, 115/20.
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB019W8H008202.11In StockCentury Electric Motor202.1 @ 1
AmazonTPB007IC455O252.061In Stock5CENTURY252.06 @ 1
thumbzoomZoroG1892466279.9916Century19.3279.99 @ 1
thumbzoomMRO Supply5811590283.391In StockCentury283.39 @ 1
thumbzoomDealers ElectricARB2026SV1302.281In StockCentury19.0302.28 @ 1
thumbzoomsustainablesupply.comC1563130328.431In StockCentury19.3328.43 @ 1
thumbzoomemotorpro.comARB2026SV1333.091In StockCentury19.0333.09 @ 1
thumbzoomsimsupply.comZO-G1892466342.091In StockCentury342.09 @ 1
thumbzoommidwestapplianceparts.comARB2026SV1-AO-P345.951In StockAO Smith345.95 @ 1
thumbzoomDreisilkerCE-RBC-ARB2026SV1348.791In StockCentury348.79 @ 1
thumbzoomhomeessentialsdirect.comARB2026SV1355.551In StockCENTURY355.55 @ 1
thumbzoomRaptor SuppliesAE3LAF357.6637351In StockCENTURY357.663735 @ 1
thumbzoomNational Supply NetworkB2776208360.021In StockAO SMITH360.02 @ 1
thumbzoomVoomi SupplyARB2026SV1375.771In StockCentury Motors375.77 @ 1
