AO Smith RS2026

mpnRS2026
brandname: CENTURY
manufacturername: CENTURY

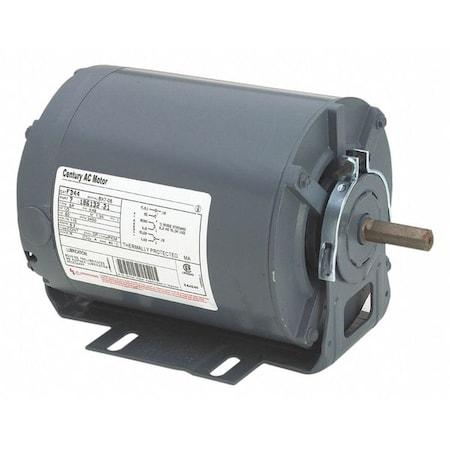

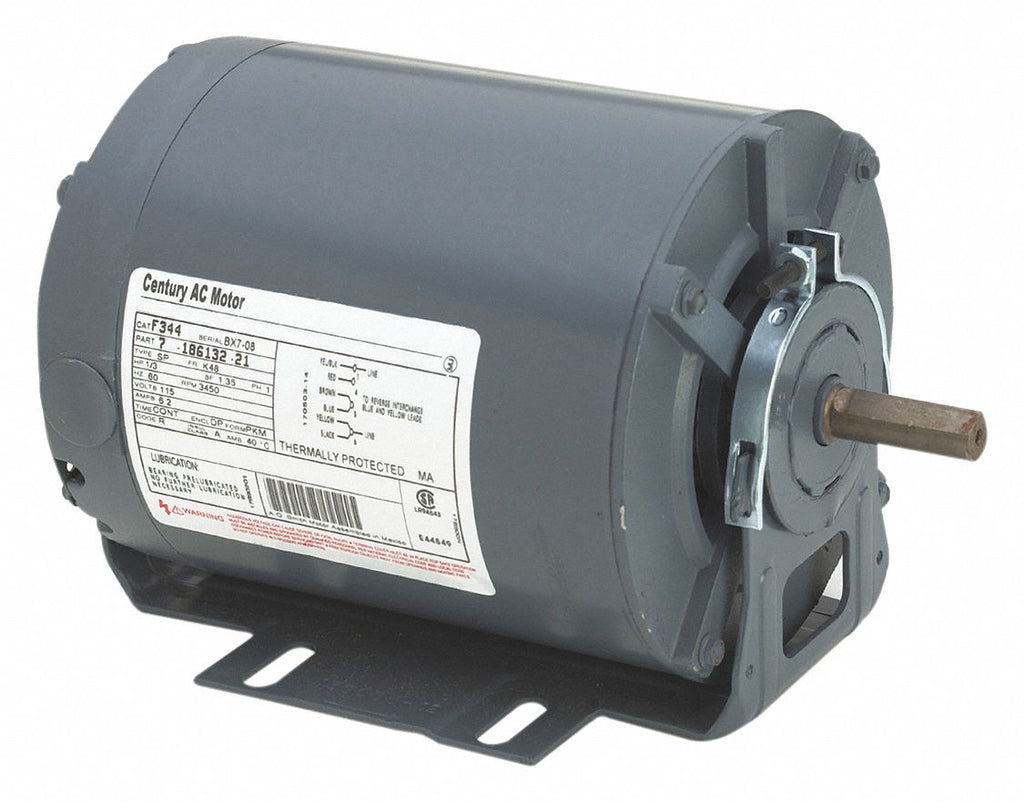

Century RS2026 1/4 hp 1725 rpm 115V Belt Drive

Brand: AO Smith
PartNumber: RS2026
Model: RS2026
Color: 8
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Fasco
Label: Fasco

Attributes

Key	Value
Amps	4.9
Bearings	Sleeve
Body Dia.	5 5/8 in
Brand	Century
C-Dimemsion	9.15 (in.)
Catalog Number	RS2026
Category	Electric Motor
CE	N
Country of Origin (subj.	Mexico
CSA	Y
DE Bearing Type	Sleeve
DEM Reference	NOHP
Duty	Continuous
Duty Cycle	Continuous
Electrical Type	Split Phase
Enclosure	OPEN
Enclosure Type	Open Enclosed, OAO (Ope.
Footnotes	307
Frame	56Z
Frame Material	Rolled steel
Frame Remarks	Resilient Base
Frame Type	56Z
Frequency	60
Full Load Amps	4.9
HP	0.25, 1/4
Hz	60
Includes	5/8 in dia Shaft Bushing
Includes Shaft Bushing	Yes
Ins. Class	B
Insulation Class	B
International Shipping	No
IP Code	-
Item	Belt Drive Motor
Item Condition	FACTORY NEW
KVA Code	-
Length Less Shaft	7 5/8 in
Manufacturer	Century
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Split-Phase
Motor Diameter	6-1/2"
Motor Enclosure Design	OPEN
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Cradle Base
Motor Orientation	-
Motor Service Factor	1.35
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Belt Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Cradle
mounting	Resilient Base
Mounting Type	Resilient Base
Mpn	RS2026
Nameplate RPM	1,725
No. of Speeds	1
Nominal Efficiency	54 %
Number of Speeds	1
ODE Bearing Type	Sleeve
Overall Length	9 1/8 in
Phase	1, Single
Product Category	HVAC/R Motors > Fan an.
Product Type	Split Phase
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	7 3/16 in
Rotation	Reversible
RPM	1725, 1800
RPM (Nameplate)	1725
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
RPM Range	1,701-1,800
RS2026 is listed in Cen.	A.O. Smith S48E45A01, D.
Service Factor	1.35
Service Factor (SF)	1.35
Shaft Dia.	5/8 in
Shaft Diameter	5/8 (in.), 1/2"
Shaft Extension	1.5 (in.)
Shaft Length	1 1/2 in, 1-7/8"
Shaft Type	Keyed
Ship Weight	12 lbs.
Shop By	Closeouts
SKU	ZO-G1934642
Speeds	1
Standards	CSA
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	No
Usable @ 200V	No
Usable @ 208V	No
Voltage	115V AC
Voltage Compatibility	115/208-230V AC, 115/23.
Volts	115
Weight	12 lb
