- mpnC54343
- brandname: CLEVELAND
- manufacturername: CLEVELAND

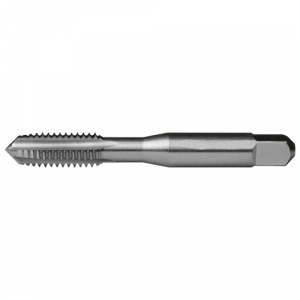

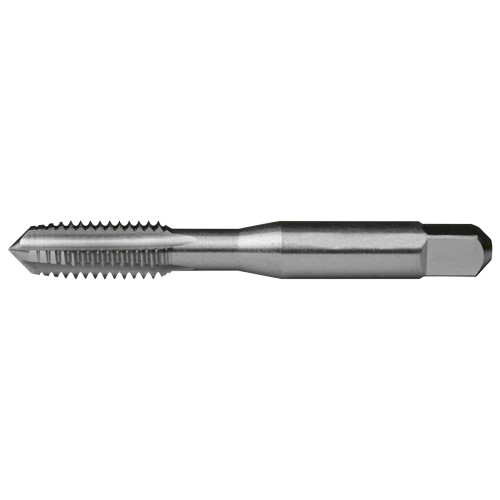

Cleveland Twist 10 32 Thread 2-Flute High Speed Steel Plug Hand Tap
- Brand: Cleveland Twist Drill
- PartNumber: C54343
- Manufacturer: Cleveland Twist Drill
- Label: Cleveland Twist Drill
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 4.25 mm |
| 65% Thread Drill Size | 4.15 mm |
| 75% Thread Drill Size | #21 |
| Brand | Cleveland |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Country of Origin (subj. | United States |
| Current Stock | 7 |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Helix Angle | 0 Degrees |
| International Shipping | No |
| Item | Straight Flute Hand Tap |
| List Number | 1002 |
| Material | HSS, High Speed Steel |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Pipe, Imperial |
| Mpn | C54343 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 2.38 in, 2-3/8" |
| Pitch Diameter Limit | H2 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Series | 1002 |
| Shank Dia. | Shank Dia.: 0.194" |
| Shank Diameter | 0.194 in |
| Shank Length | 1 1/2 in |
| Shank Type - Machining | Straight |
| SKU | ZO-G2845083 |
| Spiral Direction | Neutral |
| Square Size | 0.1520 in |
| Standards | USCTI Table 302A |
| Style | 1002 |
| SubCategory | Machining/Threading |
| Surface Condition | Bright |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | #10 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | #10-32 |
| Tap Thread Type | UNF |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 7/8", 1/2 in |
| Thread Limit | H2 |
| Thread Limit / Class of. | H2 / 2B |
| Thread Pitch | 32 |
| Thread Size | #10-32 |
| Thread Standard | Ground/UNF, UNF |
| Threads per Inch | 32 |
| Tool Size | #10-32 UNF |
| Type | General Purpose Standard |
| UPC | 697334543435 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120187 | 5.72 | 7 | 2 | | Cleveland | | 5.72 @ 7 |
 | usmegastore.com | C54343 | 6.03 | 1 | 2 | | Cleveland | | 6.03 @ 2 |
 | Megadepot | C54343 | 6.9 | 1 | 2 | | Cleveland | | 6.9 @ 2 |
 | Zoro | G2845083 | 7.79 | 1 | 2 | | Cleveland | 0.02 | 7.79 @ 2 |
 | sustainablesupply.com | C2974886 | 8.68 | 1 | 2 | | Cleveland | 0.02 | 8.68 @ 2 |
 | simsupply.com | ZO-G2845083 | 13.3 | 1 | 7 | | Cleveland | | 13.3 @ 2 |
 | bscsource.com | C54343 | 13.59 | 1 | 2 | | Cleveland | | 13.59 @ 2 |
 | National Supply Network | 40202947 | 13.835 | 1 | 2 | | Cleveland | | 13.835 @ 2 |
 | Guardian | 40202947 | 14.73 | 1 | 2 | | Cleveland | | 14.73 @ 2 |
