- mpn328444
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

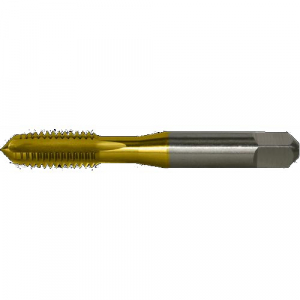

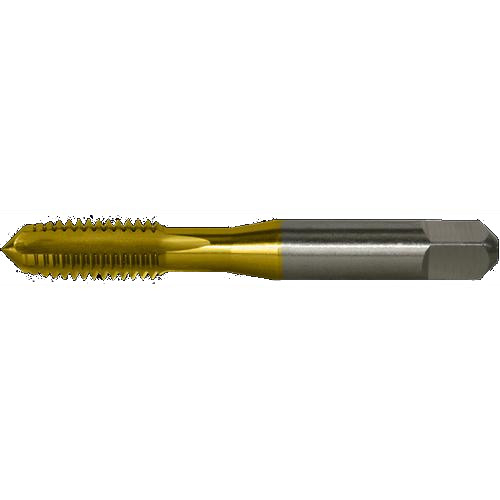

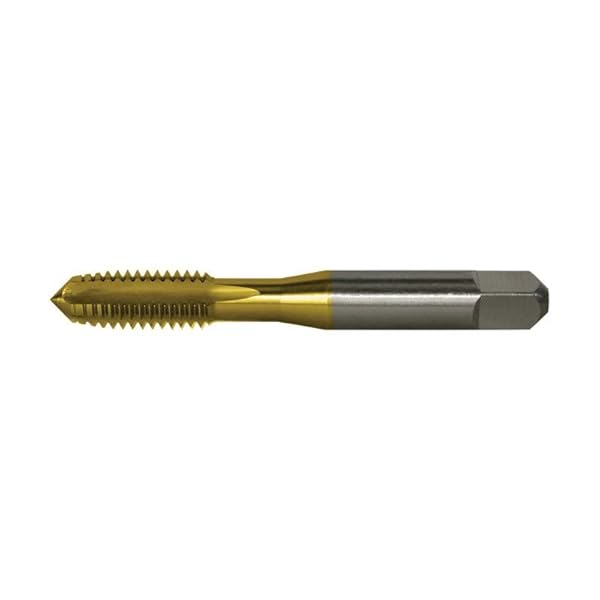

Hand Tap,Bottoming,M6-1.00 Thread,TiN
- Brand: Greenfield Threading
- PartNumber: 328444
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 5.25 mm, 5.25mm |
| 65% Thread Drill Size | 13/64 in, 13/64" |
| 75% Thread Drill Size | 5.00mm, 5.00 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Diameter | 0.2362" |
| Extended Neck | Yes |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Item | Bottom Tap, Straight Fl. |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 2.5", 63.5 mm, 2.5 in, . |
| Overall Length (Metric) | 63.5mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | D5 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 6.48mm |
| Shank Diameter | 0.255 in |
| Shank End | Square |
| Shank Length | 1-1/2", 1 1/2 in |
| Shank Size | 0.255", 0.255 in |
| Shank Size (Metric) | 6.48mm |
| Shank Square Length | 0.3125" |
| Shank Square Length (Me. | 7.94mm |
| Shank Square Width | 0.191" |
| Shank Square Width (Met. | 4.85mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 4.85mm, 4.85 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D5 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M6 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M6-1.00 |
| Tap Thread Type | Metric Fine |
| Thread | M6x1 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1 in, 1", 25.40mm |
| Thread Length (Metric) | 25.4mm |
| Thread Limit | D5 |
| Thread Limit / Class of. | D5 / 2B |
| Thread Pitch | 1,00 mm, 1.0 |
| Thread Size | M6, M6x1 |
| Thread Standard | Ground/Coarse, Metric F. |
| Thread Tolerance | 2B |
| Tool Size | M6x1.0 |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6108260 | 8.57 | 7 | In Stock | | Greenfield Threading | | 8.57 @ 7 |
 | Zoro | G7684385 | 8.59 | 1 | 25 | | Greenfield Threading | 0.15 | 8.59 @ 1 |
 | usmegastore.com | 328444 | 8.61 | 1 | In Stock | | Greenfield Threading | | 8.61 @ 1 |
 | Megadepot | 328444 | 8.61 | 1 | In Stock | | Greenfield Threading | | 8.61 @ 1 |
 | heavydutydepot.com | 328444 | 8.61 | 12 | In Stock | | Greenfield Threading | | 8.61 @ 12 |
 | rshughes.com | 933672-84442 | 9.44 | 6 | In Stock | | Greenfield Industries | | 9.44 @ 6 |
 | sustainablesupply.com | C2782855 | 13.27 | 1 | In Stock | | Greenfield Threading | 0.15 | 13.27 @ 1 |
| grainger.ca | GNF328444 | 15.5685387 | 1 | In Stock | | GREENFIELD THREADING | 0.15 | 15.5685387 @ 1 |
