- mpn328720
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

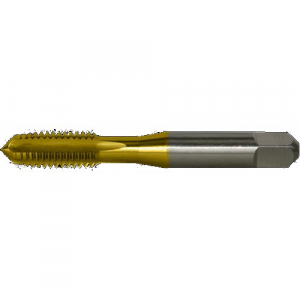

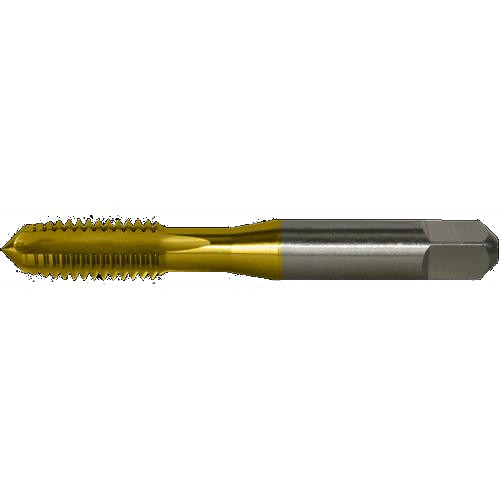

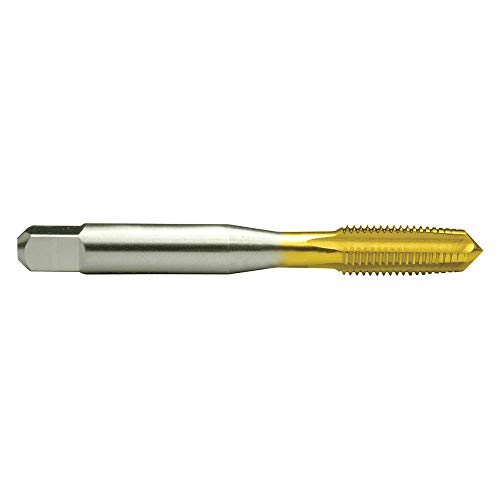

Greenfield Threading Hand Tap Bottoming M24-3.00 Thread TiN
- Brand: Greenfield Threading
- PartNumber: 328720
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 55/64 in |
| 65% Thread Drill Size | 27/32 in |
| 75% Thread Drill Size | 53/64 in |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Current Stock | 1 |
| Cutting Direction | Right Hand |
| Diameter | 0.9449" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| International Shipping | No |
| Item | Straight Flute Hand Tap |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Mpn | 328720 |
| Number of Flutes | 4 |
| Overall Length | 124.62mm, 4.9062", 4.90. |
| Overall Length (Metric) | 124.62mm |
| Package Quantity | 1 per case |
| Pitch Diameter Limit | D8 |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 19.30mm |
| Shank Diameter | 0.76 in |
| Shank End | Square |
| Shank Length | 2 21/32 in |
| Shank Size | 0.76 in, 0.76" |
| Shank Size (Metric) | 19.30mm |
| Shank Square Length | 0.75" |
| Shank Square Length (Me. | 19.05mm |
| Shank Square Width | 0.57" |
| Shank Square Width (Met. | 14.48mm |
| SKU | ZO-G7684069 |
| Square Size | 14.48 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Metric |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D8 |
| Tap Material | High Speed Steel |
| Tap Size | M24 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M24-3.00 |
| Tap Thread Type | Metric Coarse |
| Thread | M24x3 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 2.2188", 56.36mm, 2.218. |
| Thread Length (Metric) | 56.36mm |
| Thread Limit | D8 |
| Thread Pitch | 3.0 |
| Thread Size | M24, M24x3 |
| Thread Standard | Ground/Coarse |
| Thread Tolerance | 2B |
| Tool Size | M24x3.0 |
| Type | General Purpose Standard |
| UPC | 093367287207 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 328720 | 85.71 | 1 | In Stock | | Greenfield Threading | | 85.71 @ 1 |
 | heavydutydepot.com | 328720 | 85.71 | 2 | In Stock | | Greenfield Threading | | 85.71 @ 2 |
 | MRO Supply | 6108302 | 88.48 | 1 | In Stock | | Greenfield Threading | | 88.48 @ 1 |
 | usmegastore.com | 328720 | 90.51 | 1 | In Stock | | Greenfield Threading | | 90.51 @ 1 |
 | Zoro | G7684069 | 95.78 | 1 | 1 | | Greenfield Threading | 0.58 | 95.78 @ 1 |
 | simsupply.com | ZO-G7684069 | 111.21 | 1 | 1 | | Greenfield Threading | | 111.21 @ 1 |
 | rshughes.com | 933672-87207 | 112.54 | 1 | In Stock | | Greenfield Industries | | 112.54 @ 1 |
 | sustainablesupply.com | C2887589 | 135.68 | 1 | In Stock | | Greenfield Tap | 0.58 | 135.68 @ 1 |
