CAI - HUBBELL WIRING DEVICE-KELLEMS PH3004PA005

B07J5TVD8J

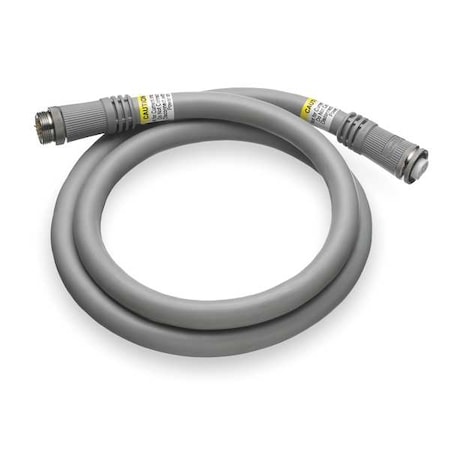

Hubbell Wiring Device-KELLEMS 4-Wire Double Ended Cable, 30 Amps AC

Hubbell Wiring Device-KELLEMS 4-Wire Double Ended Cable, 30 Amps ACzoom

Attributes

Key Value
Amperage30 A
Amperage Rating30
Amps AC30 A
ApplicationQuick Connect/Disconnec.
ApprovalscULus
BrandHubbell Wiring Device -.
Cable length5 ft
Cable Length5 ft.
Cable TypePVC
Catalog NumberPH3004PA005
ColorGray, Green, Yellow, Bl.
Color FamilyGray
Conductor MaterialCopper, Bare Copper
Conductor Size10 AWG
Conductor typeCopper
ConnectorLinkosity
Connector ClassMini (1 in)
Connector ConfigurationMale to Female
Connector Size1-16 UN
Connector TypeDouble Ended Male/Female
ConstructionFabricated
Cord Length5 ft
Cord Length (Ft.)5 ft
Cordset EndsDouble-Ended
Cordset TypeSignal
Country of OriginUnited States, US - Uni.
Current Rating30A, 30 A
Current rating30 A
ECCNEAR99
Enclosure TypeNEMA 4X
EU RoHS indicatorYes
Family SeriesHubbell Cordsets
FeaturesDouble Ended; PVC Insul.
For Use WithMfr. No. 2XE16 and 2XE1.
Gauge/Conductor10/4
Gross Weight1.9 lbs
Indicator TypeNone
InsulationPVC
IP RatingIP67
ItemTC-ER Cable
Item NumberPH3004PA005
Item TypeAccessories For LINKOSI.
Jacket ColorGray
Jacket TypeTC-ER
Length5', 5 ft., 1.52 m
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberPH3004PA005
Max. Amps30A
Max. Voltage600VAC
Net Weight0 lbs
No. of Conductors4
No. of Wires4-Wire
Number of Conductors4-Pole, 4
Number of Pins4
Number of Wires4
Number of wires4-Wire
O.D.0.75
Outer Diameter0.75
Outside Diameter0.75
Plug EndMale/Female
Plug Type4-Wire, Linkosity
Plug typeLinkosity
Side 1 AngleStraight
Side 1 Connector1 "
Side 1 GenderMale
Side 2 AngleStraight
Side 2 Connector1 "
Side 2 GenderFemale
Special FeaturesGreen/Yellow/Black Wires
StandardUL 508A, UL 2238 and UL.
StandardsUL 2238, UL 50
StrandsMulti
StyleDouble Ended (Male/Fema.
Sub BrandLinkosity System
Temp. Range-20 Degrees to 105 Degr.
Temp. Rating-20 to 105?C
Temperature Range (C)-20-105 ?C
Temperature Rating-20 Deg C to 105 Deg C
Temperature rating-20 Deg C to 105 Deg C
TypeAccessories For LINKOSI.
UNSPSC32151902
UPC783585504681
Voltage Rating600
Wire Gauge (AWG)10
Wire Size10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1967795206.991In StockHubbell1.8206.99 @ 1
thumbzoomsustainablesupply.comC1184609251.461In StockHubbell1.8251.46 @ 1
standardelectricsupply.com2130554275.711In StockHubbell275.71 @ 1
thumbzoomMRO Supply1032950275.711In StockHubbell Wiring275.71 @ 1
thumbzoomGalcoPH3004PA005-HBBL283.821In StockHubbell1.9283.82 @ 1
thumbzoomRadwellPH3004PA005300.01In StockHUBBELL300.0 @ 1
thumbzoomcrescentelectric.com140203317.961In StockHubbell Wiring Device - Kellems317.96 @ 1
Graybar25139386353.34881In StockHubbell Wiring Device - Kellems353.3488 @ 1
kirbyrisk.com1992307437.551In StockHubbell437.55 @ 1
Newark71K9259449.741In StockHUBBELL WIRING DEVICES449.74 @ 1
thumbzoomRaptor SuppliesAC3XEX467.1640351In StockHUBBELL WIRING DEVICE-KELLEMS467.164035 @ 1
