Leeson 131463.00

B00EP3FKXU

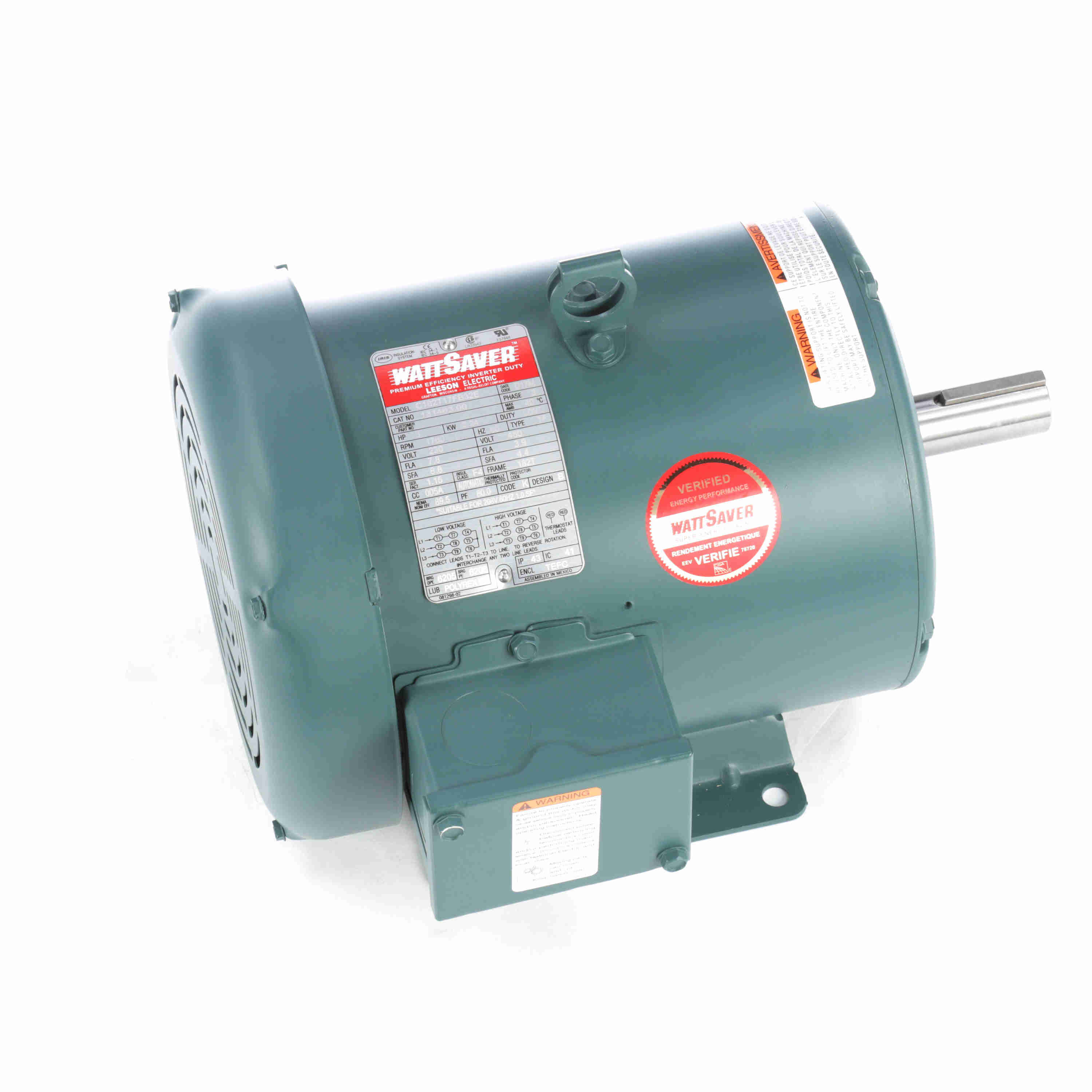

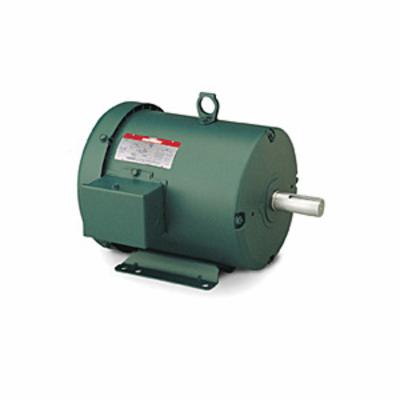

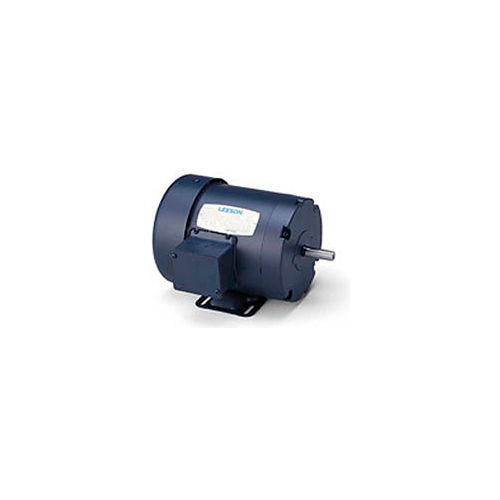

Leeson 131463.00 General Purpose Motor, 3 Phase, 182T Frame, Rigid Mounting, 3HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 131463.00 General Purpose Motor, 3 Phase, 182T Frame, Rigid Mounting, 3HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
<span style="color#ff2a00;">This motor is.
Alternate Mfr Part Numb.C182T17FB32E
Amperage Rating9.6 to 8.8/4.4 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC215T11FB11
CompositionSteel
ConstructionRolled Steel
CT Speed Range10:1
Current Rating7.8 ; 3.9 A
Description:..3HP..1800RPM.182.TEFC.
Dimensions14.96 in L
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency89.5 %
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight80.00
Family SeriesLeeson Motors, Three Ph.
FL Amps7.8/3.9
FL Efficiency89.5
Frame182T, 180
Frame MaterialRolled Steel
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower3 hp
Horsepower Rating3 hp
HP3
Hz60
Insulation ClassClass F
Insulation TypeClass F
Item ConditionFACTORY NEW
Item Number131463.00
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number131463.00
MaterialRolled Steel
MFG Part #:131463.00
Model NumberC215T11FB11
MountingFoot Mount
mountingRigid Base
Mounting TypeRigid, Foot Mount, Rigi.
NEMA Frame182T
Net Weight80 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Notes***Replacement for #116.
Number of Poles6
Number of Speeds1
Overall Length14.96 "
Overall Length (includi.13.96"
Part Number131463.00
Phase3, 3 Phase
Product SeriesThree Phase TEFC
Product TypeGeneral Purpose
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15, 1.149
Shaft DiameterUL;CSA
Shaft Size1-1/8 in Dia
Ship Weight83 lbs.
Special FeaturesService Factor - 1.15, .
Speed1760 RPM
Speed (RPM)1760
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Induction.
UPC Code691720017326
UPC:691720017326
Voltage230V, 460V, 230
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0773SVYN1657.591In Stock3Leeson Electric657.59 @ 1
thumbzoomcshincorporated.com131463.00691.671In StockLeeson80.0691.67 @ 1
thumbzoomemotorpro.com131463.00774.851In StockLeeson83.0774.85 @ 1
thumbzoomPurvis131463LEE827.641In StockLEESON827.64 @ 1
thumbzoommotorsandcontrol.comLE-131463.00893.561In StockLeeson Electric80.0893.56 @ 1
kirbyrisk.com2080644934.111In StockLeeson934.11 @ 1
thumbzoomGalco131463.00-LEES934.81In StockLeeson80.0934.8 @ 1
thumbzoomGlobal IndustrialWBB222007942.01In Stock15Leeson942.0 @ 1
us.rs-online.com72241217957.8811Leeson957.88 @ 1
thumbzoomDealers Electric131463.00988.491In StockLeeson83.0988.49 @ 1
thumbzoomWalker Industrial131463-001012.71In Stock10Leeson1012.7 @ 1
thumbzoomRaptor SuppliesAJ2RRA1074.6895771In StockLEESON1074.689577 @ 1
kscdirect.comLEE 131463.001097.251In StockLEESON ELECTRIC CORPORATION1097.25 @ 1
thumbzoompumpproducts.com131463.001212.151In StockLeeson1212.15 @ 1
