Macromatic PMPU-FA8

mpnPMPU-FA8
brandname: Macromatic
manufacturername: Macromatic

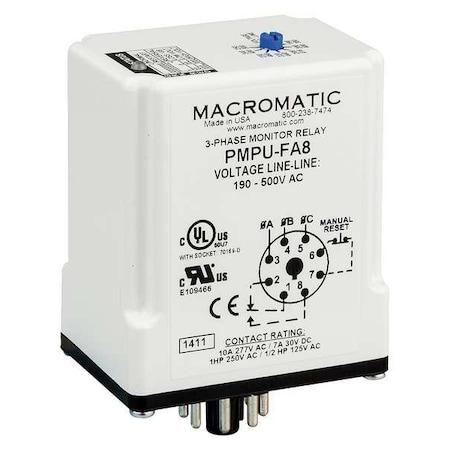

3 Phase Monitor Relay, Spdt, 500Vac, 8 Pin

3 Phase Monitor Relay, Spdt, 500Vac, 8 Pin

zoom

Brand: Macromatic
PartNumber: PMPU-FA8
Model: PMPU-FA8
PackageQuantity: 1
Binding: Misc.
Manufacturer: MACROMATIC
Label: MACROMATIC

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 277V
Approvals	cURus, UL
Base Type - Plug In Rel.	Octal
Body Depth	2.9 in
Body Depth - Relay	2.4 in
Body Height	2.4 in
Body Height - Relay	2.9 in
Body Width	1.7 in
Body Width - Relay	1.7 in
Comments	Mechanical: 10,000,000 .
Contact Failure Detect	No
Contact Form - Relay	SPDT
Current Supported	10 A
Current Unbalance Detect	No
DC Contact Rating - Rel.	7A @ 30V
Drop-Out Range	75% to 95%
Family Series	Macromatic Protection R.
Gross Weight	0.285 lbs
Hi Pwr (Over Vltg) Trip	Yes
Input or Control Voltage	190 to 500V AC
Item	Phase Monitor Relay
Item - Relay	Phase Monitor Relay
Item Number	PMPU-FA8
Line Voltage	190-500 V
Lo HP Trip Detect	No
Lo KW Trip Detect	No
Lo Pwr (Under Vltg) Trip	Yes
Manual Reset	No
Manufacturer	Macromatic
Manufacturer Part Number	PMPU-FA8
Mounting	Plug-In
Mounting - Relay	Plug In
Net Weight	0.24 lbs
Number of Phases	3
Number of Pins - Relay	8
Output Relay	SPDT, DPDT
Over Current Detect	No
Over Voltage	Fixed 110% of Line Volt.
Overall Depth	2.4 in
Overall Height - Relay	3.0 in
Phase Loss Detect	Yes
Phase Loss Sensitivity	Yes
Phase Loss Time Delay	0.1 sec
Phase Reversal	Yes
Phase Rvrse/Rotatn Dete.	Yes
Pick Up Range	190 to 500VAC
Product Series	PMPU-FA8
Rapid Cycling Detect	Yes
Restart Delay (Sec)	2 s
Type of Display	LED Status Indicator
Under Current Detect	No
Under Voltage	171 to 450V AC
Var Restart Delay	No
Variable Point Trip	No
Voltage Supported	250 V, 30 V, 125 V, 277.
Voltage Unbalance %	6 %
Voltage Unbalance Detect	Yes

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G3623356	75.55	1	286		Macromatic	0.47	75.55 @ 3
	sustainablesupply.com	C1212547	92.72	1	3		Macromatic	0.47	92.72 @ 3
	blackhawksupply.com	PMPU-FA8	115.16	1	3		Macromatic		115.16 @ 3
	Walker Industrial	PMPU-FA8	118.12	1	3	17	Macromatic		118.12 @ 3
	Galco	PMPU-FA8-MCRM	134.23	1	3		Macromatic	0.285	134.23 @ 3
	AmazonTP	B017W7HA06	194.13	1	3	15	MACROMATIC CONTROLS		194.13 @ 3
	Newark	40T1796	254.08	1	3		MACROMATIC CONTROLS		254.08 @ 3
