MAGNECRAFT 750XBXRC-24A

mpn750XBXRC-24A
brandname: Magnecraft / Schneider Electric
manufacturername: Magnecraft / Schneider Electric

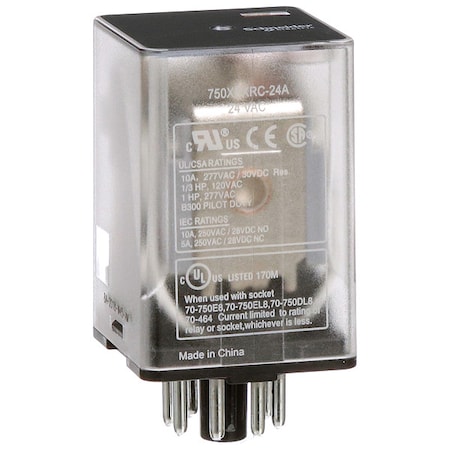

Plug in Relay, 8 Pins, Octal, 24VAC

Plug in Relay, 8 Pins, Octal, 24VAC

zoom

Brand: MAGNECRAFT
PartNumber: 750XBXRC-24A
Model: 750XBXRC-24A
PackageQuantity: 1
Binding: Misc.
Manufacturer: MAGNECRAFT
Label: MAGNECRAFT

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 277V, 10 A @ 277V
Base Type	Octal
Base Type - Plug In Rel.	Octal
Body Depth - Relay	1.40 in, 1.4 in
Body Height - Relay	2.09 in
Body Width - Relay	1.38 in
Brand	Schneider Electric
Coil Voltage	24 VAC
Coil Volts	24V AC
Contact Current Rating	10 A
Contact Form	DPDT
Contact Form - Relay	DPDT
Contact Material	Silver Alloy, Gold Flas.
Contact Rating	10A @ 277VAC/30VDC
Contact Voltage Rating	300 VAC
Control Voltage	24
Country of Origin (subj.	China
Current Rating	10 A
Current Stock	197
DC Contact Rating - Rel.	10 A @ 28V, 10A @ 28V
Family Series	Schneider Miscellaneous
Features	Clear Cover
Function	General Purpose
Green Environmental Att.	RoHS 2011/65/EU Complia.
Gross Weight	0 lbs
HP @ 120V	1/3 hp
HP @ 240V	1/2 hp
International Shipping	No
Item	General Purpose Relay
Item - Relay	General Purpose Relay
Item Number	750XBXRC-24A
Manufacturer	Schneider
Manufacturer Part Number	C507161M
Mounting - Relay	Plug In, Plug-In
Mounting Type	Socket Mount
Mpn	750XBXRC-24A
Net Weight	0 lbs
Number of Pins	8
Number of Pins - Relay	8
Overall Height - Relay	2.09 in
Pins	8
Power Consumption - Rel.	3 VA, 3.0 VA
Primary Type	Power Relays
Promotion Restriction	Not eligible for promot.
Push To Test	No
Relay Type	Electromechanical
Series	750H Hazardous Location.
SKU	ZO-G9996673
Socket	Mfr. No. 70-750E8-1, 70.
Socket Code	A
Socket Code - Relay	A
Standards	UL, CSA, CE Marked, CE .
Status Indicator	Mechanical Flag
SubCategory	Electrical
Termination	8-Pin Octal
Voltage Rating	250 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	750XBXRC-24A	11.952	1	10		Magnecraft / Schneider Electric		11.952 @ 1
	Zoro	G9996673	15.69	1	In Stock		Schneider Electric	0.16	15.69 @ 1
	grainger.ca	WWG35KR29	18.8346657	1	In Stock		SCHNEIDER ELECTRIC	0.16	18.8346657 @ 1
	us.rs-online.com	70363903	22.94	1	92		Schneider Electric/Legacy Relays		22.94 @ 1
	Galco	750XBXRC-24A-MGCR	23.48	10	In Stock		Schneider		23.48 @ 10
	simsupply.com	ZO-G9996673	29.94	1	197		Schneider Electric		29.94 @ 1
	Raptor Supplies	AH4TMB	32.5037115	1	In Stock		SCHNEIDER ELECTRIC		32.5037115 @ 1
	Newark	36X1961	33.03	10	In Stock		SCHNEIDER ELECTRIC/LEGACY RELAY		33.03 @ 10
