Martin C448

B004BDNYIM

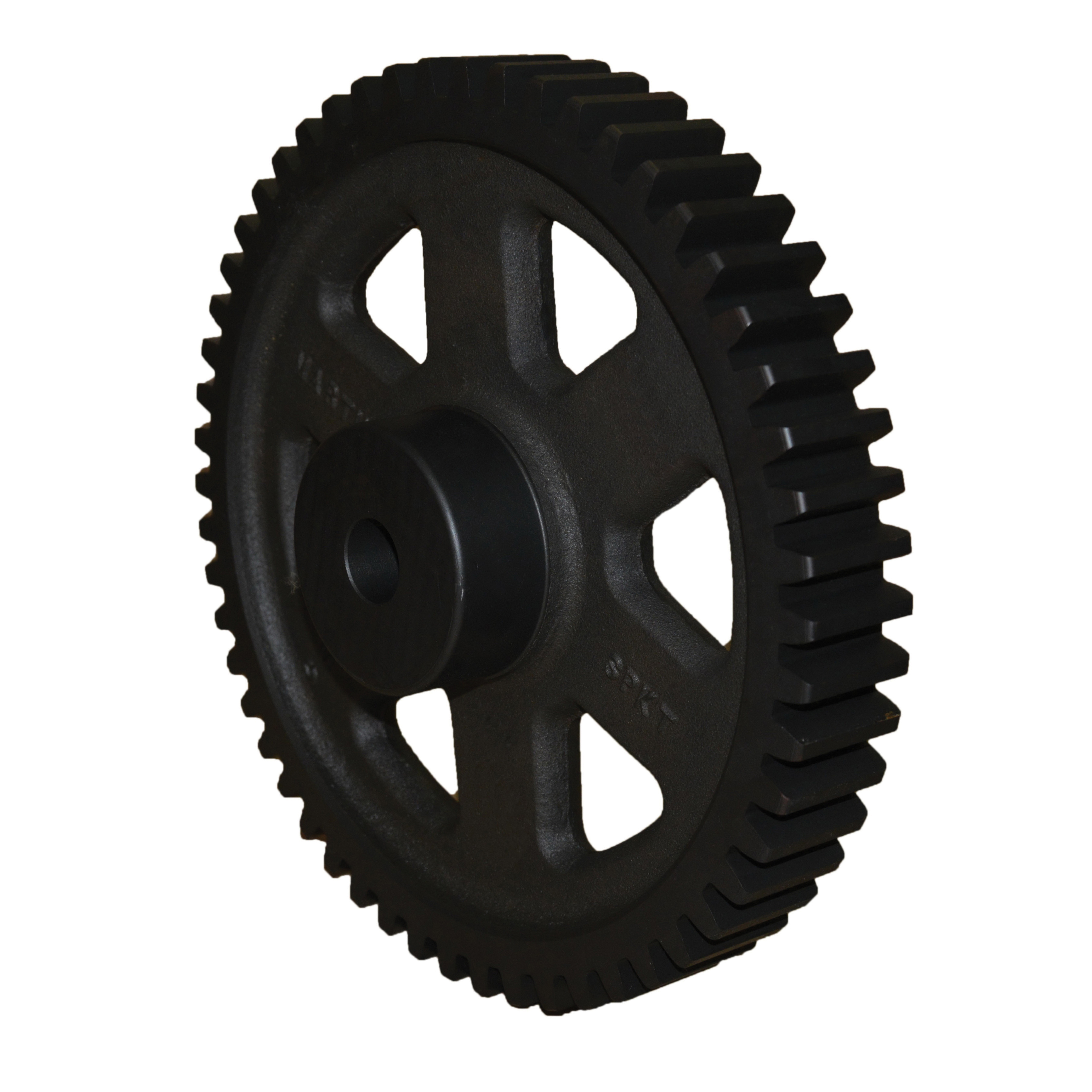

Martin C448 Spur Gear, 14.5? Pressure Angle, Cast Iron, Inch, 4 Pitch, 1-1/4" Bore, 12.5" OD, 2.000" Face Width, 48 Teeth

Martin C448 Spur Gear, 14.5? Pressure Angle, Cast Iron, Inch, 4 Pitch, 1-1/4" Bore, 12.5" OD, 2.000" Face Width, 48 Teethzoom

Attributes

Key Value
Bore Diameter1.25 in ; 31.8 mm
Bore TypeReboreable
Class6
Diametral Pitch4
External Length1.5" (38.1mm)
Face Width (In.)2
Gear TypeB3
Hub Dia. (In.)3.9845
Hub Outside Diameter3.9845" (101.2mm)
Hub Projection (In.)1.5
Hub StyleB
Length through Bore3.5
Length Through Bore3.5" (88.9mm)
MaterialCast Iron
Max. Bore2.5
Maximum Bore Diameter2.5" (63.5mm)
Min. Bore1.25
Number of Teeth48
Number Of Teeth48
Outer Diameter12.5" (317.5mm)
Outside Dia12.500"
Outside Dia. (In.)12.5
Pitch4
Pitch Dia. (In.)12
Pitch Diameter12" (304.8mm)
Pressure Angle14.5 Degrees PA
Pressure Angle (Deg.)14.5
Storage Height3.5
Storage Length12.5
Storage Width12.5
StyleB
UPC Code697950053967
Weight38.4 lbs. (17.4 kg), 38.
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comC448604.031In StockMartin1.0604.03 @ 1
us.rs-online.com72332475677.361In StockMartin Sprocket & Gear38.4677.36 @ 1
thumbzoomMRO Supply250831684.131In StockMartin Sprocket684.13 @ 1
thumbzoomapexindustrialautomation.comC448773.361In StockMartin Sprocket773.36 @ 1
thumbzoomPurvisC448885.821In StockMartin885.82 @ 1
thumbzoomZoroG3367781897.131In Stock14Martin Sprocket & Gear38.4897.13 @ 1
