MICROCHIP TECHNOLOGY AT28C256-15JU

B073RQJ9TV

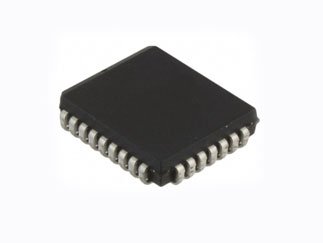

MICROCHIP TECHNOLOGY AT28C256-15JU AT28C256 Series 256 Kb (32 K x 8) 5.5 V 150 ns Paged Parallel EEPROM - PLCC-32 - 32 item(s)

MICROCHIP TECHNOLOGY AT28C256-15JU AT28C256 Series 256 Kb (32 K x 8) 5.5 V 150 ns Paged Parallel EEPROM - PLCC-32 - 32 item(s)zoom

Attributes

Key Value
Access Time150 ns
Address Hold Time50 ns
Address Setup Time0 ns
Base Product NumberAT28C256
CategoryIntegrated Circuits (IC.
Current, Input, Leakage10 ?A
Current, Output, Leakage10 ?A
Data Retention10
Density256K
DescriptionIC EEPROM 256KBIT PAR 3.
Detailed DescriptionEEPROM Memory IC 256Kbi.
Digi-Key Part NumberAT28C256-15JU-ND
Digi-Key ProgrammableNot Verified
Dimensions11.506 x 14.046 x 3.556.
Height0.14" (3.556mm)
Input Capacitance4 pF
InterfaceParallel Bus
Length0.452" (11.506mm)
ManufacturerMicrochip Technology
Manufacturer Product Nu.AT28C256-15JU
Manufacturer Standard L.52 Weeks
Maximum Operating Tempe.+85 ?C
Memory Capacity256 kbit
Memory FormatEEPROM
Memory InterfaceParallel
Memory Organization32K x 8
Memory Size256Kbit
Memory TypeParallel EEPROM, Non-Vo.
MfrMicrochip Technology
Minimum Operating Tempe.-40 ?C
Mounting TypeSurface Mount
Number of Bits per Word8 bit
Number of Pins32
Operating Current50 mA
Operating Temperature-40?C ~ 85?C (TC), -40 .
Operating Voltage RangeMaximum of 5 V
Organization32768 x 8
Output Capacitance8 pF
PackageTube
Package / Case32-LCC (J-Lead)
Package TypePLCC
Power Dissipation440 mW
Product HeaderPaged Parallel EEPROM M.
Product StatusActive
Programmable Voltage5 V
SeriesAT28 Series, -
Supplier Device Package32-PLCC (13.97x11.43)
Supply Voltage5 V
TechnologyEEPROM
Temperature Operating R.-40 to +85 ?C
Voltage - Supply4.5V ~ 5.5V
Voltage, Input, High Le.2 V
Voltage, Input, Low Lev.0.8 V
Voltage, Output, High L.2.4 V
Voltage, Output, Low Le.0.45 V
Width0.553" (14.046mm)
Write Cycle Time - Word.10ms

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics60471708.52322284Microchip8.52 @ 32
us.rs-online.com701237489.215Microchip Technology Inc.9.2 @ 5
thumbzoomDigi-Key100850711.3915Microchip Technology11.39 @ 5
thumbzoomNewark58M382811.8516MICROCHIP11.85 @ 5
RS Delivers127-6569P14.11215Microchip14.112 @ 5
AmazonTPB082X4WC3914.73152Microchip14.73 @ 5
thumbzoomTMEAT28C256-15JU244.4415MICROCHIP TECHNOLOGY244.44 @ 5
