PIC16F616-E/SL

mpnPIC16F616-E/SL
brandname: Microchip Technology Inc.
manufacturername: Microchip Technology Inc.

8-bit Microcontrollers - MCU 4KB Flash 128 RAM (50 pieces)

8-bit Microcontrollers - MCU 4KB Flash 128 RAM (50 pieces)

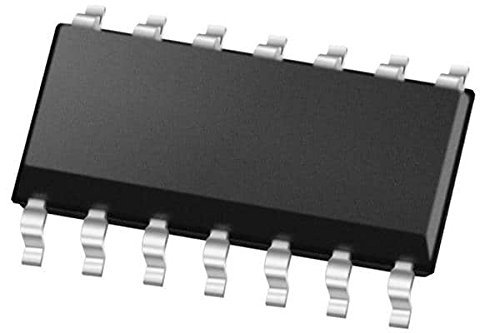

zoom

PartNumber: PIC16F616-E/SL
PackageQuantity: 50
Manufacturer: Microchip Technology
Label: Microchip Technology

Attributes

Key	Value
A/D Bit Size	10 bit
A/D Channels Available	8
ADC Resolution	10 bit
Alternate Part No.	579-PIC16F616-E/SL
Architecture	RISC
Brand	Microchip Technology
Comparator Type	2
Core	PIC
CPU Speed	5 MIPS
Data Bus Width	8 bit
Data RAM Size	128 B
Data Rate	5 MIPS
Dimensions	8.65 x 3.90 x 1.50 mm
EEPROM Memory	0 B
Family Name	PIC16
Frequency	20
Height	0.059" (1.5mm)
Input Output	11
Length	0.34 in
Manufacturer	Microchip
Manufacturer Part No.	PIC16F616-E/SL
Maximum Clock Frequency	20 MHz
Maximum Operating Tempe.	+ 125 C, +125 ?C
Memory Type	Flash
Minimum Operating Tempe.	-40 ?C, - 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of ADCs	8 x 10 bit
Number of Bits	8
Number of I/Os	11 I/O
Number of IO Ports	11
Number of Pins	14
Number of PWM Units	1
Number of Timers	3, 3 Timer
On-Chip ADC	Yes
Operating Supply Voltage	2 V to 5.5 V
Operating Voltage	2 to 5.5 V
Package Type	SOIC
Package/Case	SOIC-14 Narrow
Packaging	Tube
Processor Series	PIC16
Product Category	8-bit Microcontrollers .
Program Memory Size	3.5 kB
Program Memory Type	Flash
Programmable Memory	3.5K Bytes
Pulse Width Distortion	1 x 10 bit
PWM Channels	1
PWM Resolution	10 bit
RAM Size	128 B
Series	PIC16, PIC 16F Series
Speed	20 MHz
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2 V
Temperature Operating R.	-40 to +125 ?C
Timer Resolution	8, 16 bit
Timers	1 x 16 bit, 2 x 8 bit
Type	PIC
USB Channels	1 x Device
Voltage Range	2-5.5 V
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2319159	0.95	1	1070		Microchip Technology		0.95 @ 25
	Avnet	PIC16F616-E/SL	1.091	627	25		Microchip		1.091 @ 627
	Mouser	579-PIC16F616-E/SL	1.17	1	45		Microchip		1.17 @ 25
	Onlinecomponents.com	PIC16F616-E/SL	1.33	1	25		Microchip Tech.		1.22 @ 26
	Newark	95W8354	1.35	1	27694		MICROCHIP		1.35 @ 25
	TME	PIC16F616-E/SL	1.6	1	25		MICROCHIP TECHNOLOGY		1.6 @ 25
	swatee.com	PIC16F616-E/SL	2.03	1	271		Microchip		2.03 @ 25
	us.rs-online.com	70046035	2.38	1	25		Microchip Technology Inc.		2.38 @ 25
	AmazonTP	B07VX9CDSD	43.88	1	25	2	Microchip Technology		43.88 @ 25
