- mpn52559-3652
- brandname: Molex
- manufacturername: Molex

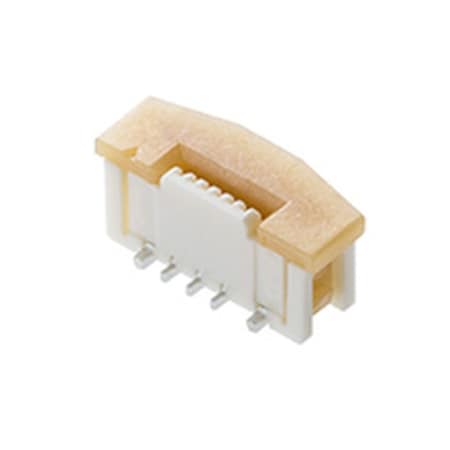

MOLEX 52559-3652 CONNECTOR, FPC, ZIF, RCPT, 36POS, 2ROW (50 pieces)
- PackageQuantity: 50
- Manufacturer: MOLEX
- Label: MOLEX
Attributes
| Key | Value |
|---|
| Actuator Color | - |
| Actuator Material | Polyphenylene Sulfide (. |
| Alternate Part No. | 538-52559-3652 |
| ASIN | B00DKYMPM4 |
| Base Product Number | 052559 |
| Body material | polyamide |
| Brand | MOLEX |
| Cable End Type | Straight, Tapered |
| Category | Connectors, Interconnec. |
| Connector series | Slider |
| Connector variant | ZIF |
| Connector/Contact Type | Contacts, Vertical - 1 . |
| Contact Finish | Gold |
| Contact Finish Thickness | 39.4?in (1.00?m) |
| Contact material | phosphor bronze |
| Contact Material | phosphor bronze |
| Contact plating | gold-plated |
| Current Rating | 500 mA |
| Current rating | 0.5A |
| Current Rating (Amps) | 0.5A |
| Description | CONN FFC VERT 36POS 0.5. |
| Detailed Description | 36 Position FFC, FPC Co. |
| Digi-Key Part Number | WM7988TR-ND - Tape & Re. |
| Electrical mounting | SMT |
| Features | Zero Insertion Force (Z. |
| FFC, FCB Thickness | 0.30mm |
| Flammability rating | UL94V-0 |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.154" (3.90mm) |
| Housing Color | - |
| Housing Material | Polyamide (PA46), Nylon. |
| Item model number | 52559-3652 |
| Locking Feature | Slide Lock |
| Manufacturer | MOLEX |
| Manufacturer Part No. | 52559-3652 |
| Manufacturer Product Nu. | 0525593652 |
| Manufacturer Standard L. | 13 Weeks |
| Material Flammability R. | UL94 V-0 |
| Mating Cycles | 20 |
| Mfr | MOLEX |
| Mounting Angle | vertical |
| Mounting Type | Surface Mount |
| Number of Positions | 36 |
| Operating Temperature | -40?C ~ 85?C |
| Operating temperature | -40...85?C |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel |
| Part # Aliases | 0525593652 |
| Pitch | 0.020" (0.50mm), 0.5 mm |
| Product Category | FFC & FPC Connectors |
| Product Status | Active |
| Product Type | Board Mount |
| Rated voltage | 50V |
| Ribbon cable pitch | 0.5mm |
| Series | Easy-On 52559, 52559 |
| Spatial orientation | vertical |
| Termination | Solder |
| Termination Style | SMD |
| Type of connector | FFC/FPC |
| Voltage Rating | 50V, 50 VAC/DC |
