Molex 87832-1010

B011NARFVM

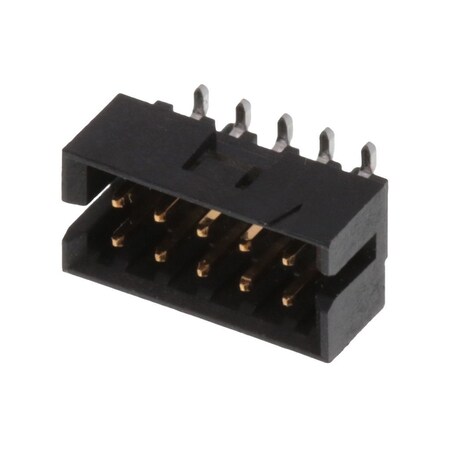

MOLEX 87832-1010 WIRE-BOARD CONNECTOR, HEADER, 10 POSITION, 2MM (10 pieces)

MOLEX 87832-1010 WIRE-BOARD CONNECTOR, HEADER, 10 POSITION, 2MM (10 pieces)zoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.141" (3.60mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Current Rating (Amps)-
Fastening TypeLatch Holder
FeaturesBoard Guide, Surface Mo.
Flammability RatingUL 94V-0
Hole Center to Center2 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.252" (6.40mm)
Insulation MaterialPolyamide (PA), Nylon, .
ManufacturerMOLEX
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage125V
MfrMOLEX
Mounting TypeSurface Mount
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
Package Quantity1
Part StatusActive
Pitch - Mating0.079" (2.00mm)
Row Spacing - Mating0.079" (2.00mm)
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com87832-10100.9412089MOLEX / WALDOM0.94 @ 25
Avnet08783210101.01711360Molex1.017 @ 25
Power and Signal Group08783210101.0902336025Molex1.0902 @ 3360
TMEMX-87832-10101.14325MOLEX1.14 @ 25
thumbzoomNewark59J18011.661629MOLEX1.66 @ 25
Mouser538-87832-10101.6913885Molex1.69 @ 25
thumbzoomDigi-KeyWM4227-ND1.707125Molex1.707 @ 25
Arrow87832-10102.141174Molex2.14 @ 25
RS Delivers670-10492.6628125Molex2.6628 @ 25
thumbzoomZoroG776916496.25125Molex96.25 @ 25
