Schneider Electric XALK178H7

B011OLN0ZK

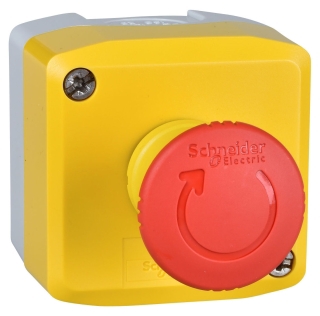

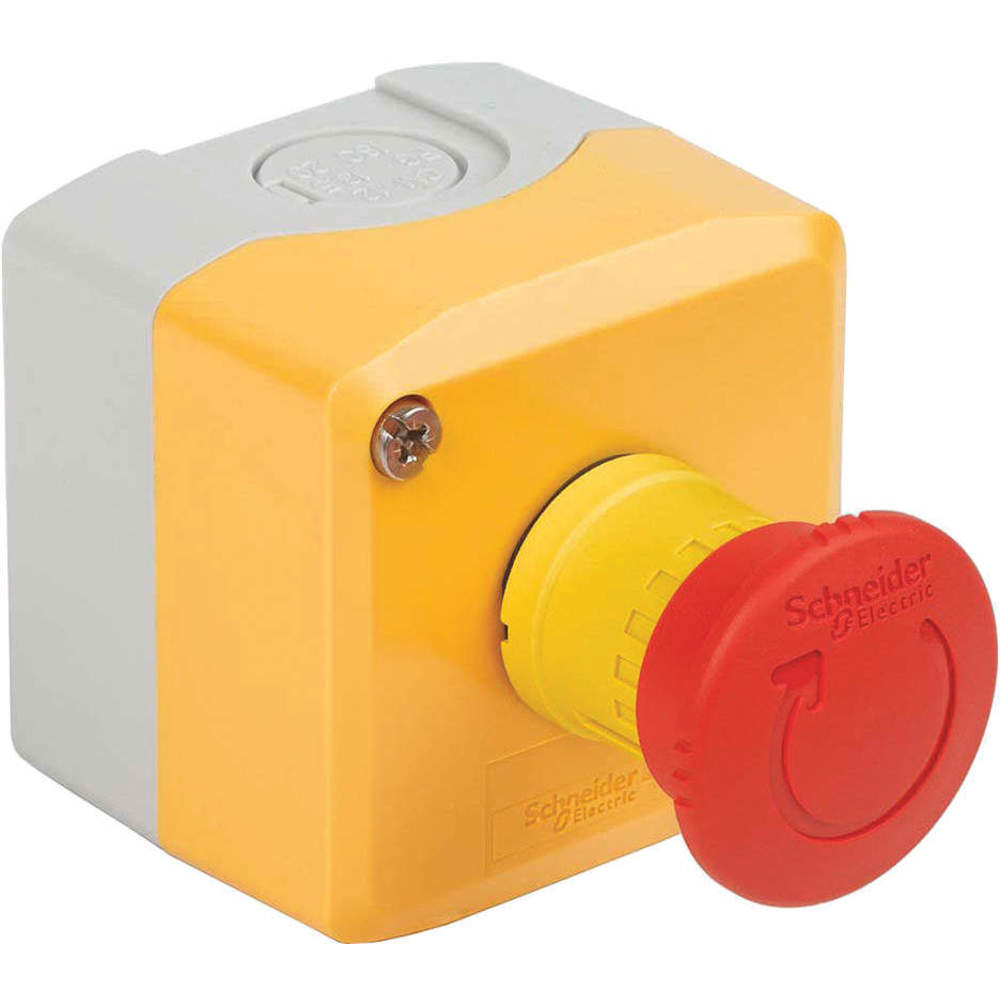

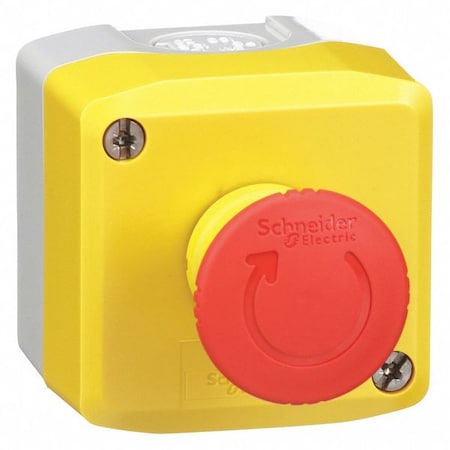

Schneider Electric XALK178H7 Push Button Enclosure 600Vac 10A Xalb Sp, Black

Schneider Electric XALK178H7 Push Button Enclosure 600Vac 10A Xalb Sp, Blackzoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.6 kV IEC 60947-1
ActionTwist-to-Release, slow-.
ActuationTwist Release
Actuator1 mushroom head ? 40 mm.
Actuator ColorRed
Actuator TypeMushroom
Ambient Air Temperature.-40-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage Rating10
Applicationfor XB5 ? 22 mm control.
ApprovalsCSA, REACh, UL
Basic MaterialPolycarbonate
BrandSchneider Electric
Button ColorRed
Cable Entry1 knock-out for cable e.
Catalog NumberXALK178H7
China Rohs RegulationX
Circularity ProfileENVEOLI1806010EN
ColorBlack, Light Gray/Yello.
Color FamilyMulti
Colour Of Base Of Enclo.light grey RAL 7035)
Colour Of Coveryellow RAL 1021)
ConnectionScrew clamp terminals,
Contact ConfigurationN.C., 1NC
Contact Form1NC
Contact Operation1NC, slow-break
Contact Rating10A @ 600V AC, 2.5A @ 2.
Contacts Materialsilver alloy (Ag/Ni)
Control Station Applica.emergency stop function.
Control Station Composi.1 mushroom head ? 40 mm.
Country of OriginCzech Republic, CZ - Cz.
Current Stock97
Depth3.6 in
Device Short NameXALK
ECCNEAR99
Electrical Durability1000000 cycles, AC-15, .
EnclosureIP65
Enclosure ColorLight Gray and Yellow
Enclosure ColourLight Gray and Yellow
Enclosure MaterialPolycarbonate
Enclosure TypeDead End
Environmental ConditionsIP66
Environmental DisclosureENVPEP1806010EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB5 Family
Family SeriesSquare D Switches
For Use WithYellow
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0.355 lbs
Head MaterialPlastic
Height2.67 in
Housing Colorlight grey RAL 7035)
HubISO M20
IEC RatingEN/IEC 60204-1; EN/IEC
Ik Degree Of ProtectionIK03 IEC 62262
IlluminatedNo
IlluminationIlluminated
Insulation600 V 3)EN/IEC 60947-1
International ShippingNo
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP RatingIP69K, 65
ItemPush Button Control Sta.
Item NumberXALK178H7
Item Typecomplete control station
Lead TimeExpected to ship in 1-2.
LegendNo Legend
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number452982
MaterialPolycarbonate
Mechanical Durability300000 cycles
Mechanical InterlockNo
Mercury FreeYes
MountingWall
MpnXALK178H7
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA RatingNEMA 13, 4X, 1, 12, 13,.
Net Weight0.194 kg, 0.325 lbs
Number of Buttons1
Number of Operators1
Number of Pilot Lights0
Number of Poles1
Number of Positions2
Number of Pushbuttons1
Number of Selector Swit.0
Operating Force44 N
Operating Temperature-25 TO +70 DEGREES C
Operating Travel1.5 mm NC changing elec.
Operator ColorRed
Operator ColourRed
Operator Profile1 mushroom head push-bu.
Operators Descriptionred unmarked 1 NC
Overvoltage Categoryclass II IEC 60536
Positive Openingwith IEC 60947-5-1 appe.
Product CertificationsCSA || UL Listed
Product Destinationfor XB5 ? 22 mm control.
Product Or Component Ty.complete control station
Protective TreatmentTH
Range Of ProductHarmony XALK
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Resetturn to release
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
RoHSYes
Rohs Exemption Informat.Yes
SeriesHarmony XALK Series
Shape Of Screw Headcross Philips no 1 || c.
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Size22MM, 22 mm
SKUZO-G8581395
Special Featurescomplete control station
StandardUL FILE NUMBER E42259 C.
StandardsCSA C22.2 N.14, EN/IEC .
Sub BrandXALK
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Tightening Torque0.8-1.2 N.m IEC 60947-1
Total Number of Devices1
Toxic Heavy Metal FreeYes
TypeEmergency Stop
Type of Operator40mm Mushroom Head, 40 .
UNSPSC39122216
UPC785901728382
UPC Code785901728382
Vibration Resistance5 gn 12-500 Hz)IEC 6006.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width2.67 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXALK178H731.781In StockSCHNEIDER ELECTRIC31.78 @ 1
industrialautomationparts.comPIL-0560-E46.251In StockSCHNEIDER ELECTRIC46.25 @ 1
grainger.caSQDXALK178H7119.569280441In StockSCHNEIDER ELECTRIC0.35119.56928044 @ 1
thumbzoomZoroG8581395141.991119Schneider Electric0.35141.99 @ 1
us.rs-online.com70243940142.53131Schneider Electric142.53 @ 1
standardelectricsupply.com2233465145.361In StockSchneider Electric145.36 @ 1
thumbzoomblackhawksupply.comXALK178H7146.141In StockSquare D146.14 @ 1
thumbzoomGalcoXALK178H7-SQD153.0120Square D0.355153.0 @ 1
AmazonTPB011OLN0ZK153.481In Stock2SCHNEIDER ELECTRIC153.48 @ 1
thumbzoomgordonelectricsupply.comXALK178H7160.091In Stock10SQUARE D160.09 @ 1
thumbzoomsimsupply.comZO-G8581395176.42197Schneider Electric176.42 @ 1
thumbzoommayerelectric.comSQDXALK178H7178.321In StockSQUARE D0.4268178.32 @ 1
thumbzoomNewark80C6335182.7613SCHNEIDER ELECTRIC182.76 @ 1
thumbzoomsustainablesupply.comC1190282199.61In StockSchneider Electric0.35199.6 @ 1
Graybar25421281205.52114Square D (Schneider Electric)205.52 @ 1
thumbzoomNational Supply Network69677102213.741In StockSchneider Electric213.74 @ 1
thumbzoomcrescentelectric.com6349229.6218Schneider Electric229.62 @ 1
thumbzoomRaptor SuppliesAG3FDQ275.01335551In StockSCHNEIDER ELECTRIC275.0133555 @ 1
