Sealmaster RFP 407

B008FCXI4A

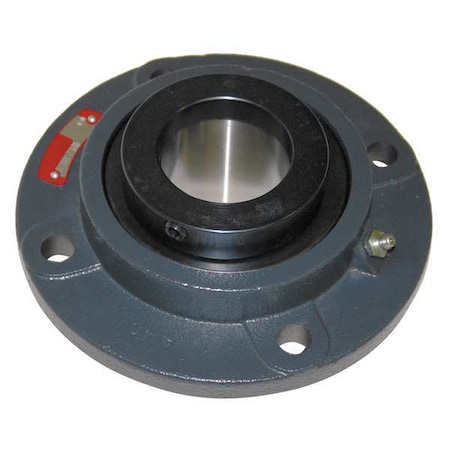

Sealmaster RFP 407 Heavy Duty Piloted Flange Unit, 4 Bolt, Regreasable, Felt Seals, Double Concentric Clamp Collars, Cast Iron Housing, 4-7/16" Bore, 13-1/2" Overall Length, 8.309" Bolt Hole Spacing Width, 1" Flange Height

Sealmaster RFP 407 Heavy Duty Piloted Flange Unit, 4 Bolt, Regreasable, Felt Seals, Double Concentric Clamp Collars, Cast Iron Housing, 4-7/16" Bore, 13-1/2" Overall Length, 8.309" Bolt Hole Spacing Width, 1" Flange Heightzoom

Attributes

Key Value
bearing type:Tapered Roller
Bolt Circle Diameter11.75 in
Bolt Size3/4 in
bolt size:0.7500 in
Bore Dia.4 7/16 in
Bore Diameter4 7/16 in
bore type:Round
Dimension A6 3/4 in
Dimension B13 1/2 in
Dimension BC11 3/4 in
Dimension C4 5/8 in
Dimension D10 1/4 in
Dimension E2 3/8 in
Dimension F2 1/32 in
Dimension G6 1/2 in
Dimension H1 in
Dimension J11 3/4 in
Dimension L6 13/32 in
Dimension N2 3/8 in
Dimension P10 1/4 in
duty type:Standard Duty
expansion type:Non-Expansion Bearing (.
finish/coating:Uncoated
flange mounting type:Four-Bolt Piloted Flange
housing construction:Solid Flange Mount
housing material:Cast Iron
Inner Ring Width6.406 in
locking device:Double Set Screw
lubrication type:Lubrication Fitting
manufacturer catalog nu.550343
Mount Hole Center-to-Ce.11.75 in
Mount Hole Center-to-Ce.11.75 in
Mounting Bolt Size3/8 in
operating temperature r.Max 250
overall depth:6.7500 in
Overall Height13 1/2 in
Overall Length13 1/2 in
Overall Width6 3/4 in
pilot diameter:10.2500 in
replacement bearing:RCI-407
seal type:Felt Seal
series:RFP Series

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply22555594094.151In StockSealMaster4094.15 @ 1
thumbzoomapexindustrialautomation.comRFP 4074679.031In StockSealmaster4679.03 @ 1
us.rs-online.com737587044821.971In StockSealmaster4821.97 @ 1
thumbzoommotionindustries.com005721375239.61In StockSealmaster5239.6 @ 1
thumbzoomZoroG02784285820.881In Stock15Sealmaster91.05820.88 @ 1
