- mpn2T885
- brandname: SIMPSON ELECTRIC
- manufacturername: SIMPSON ELECTRIC

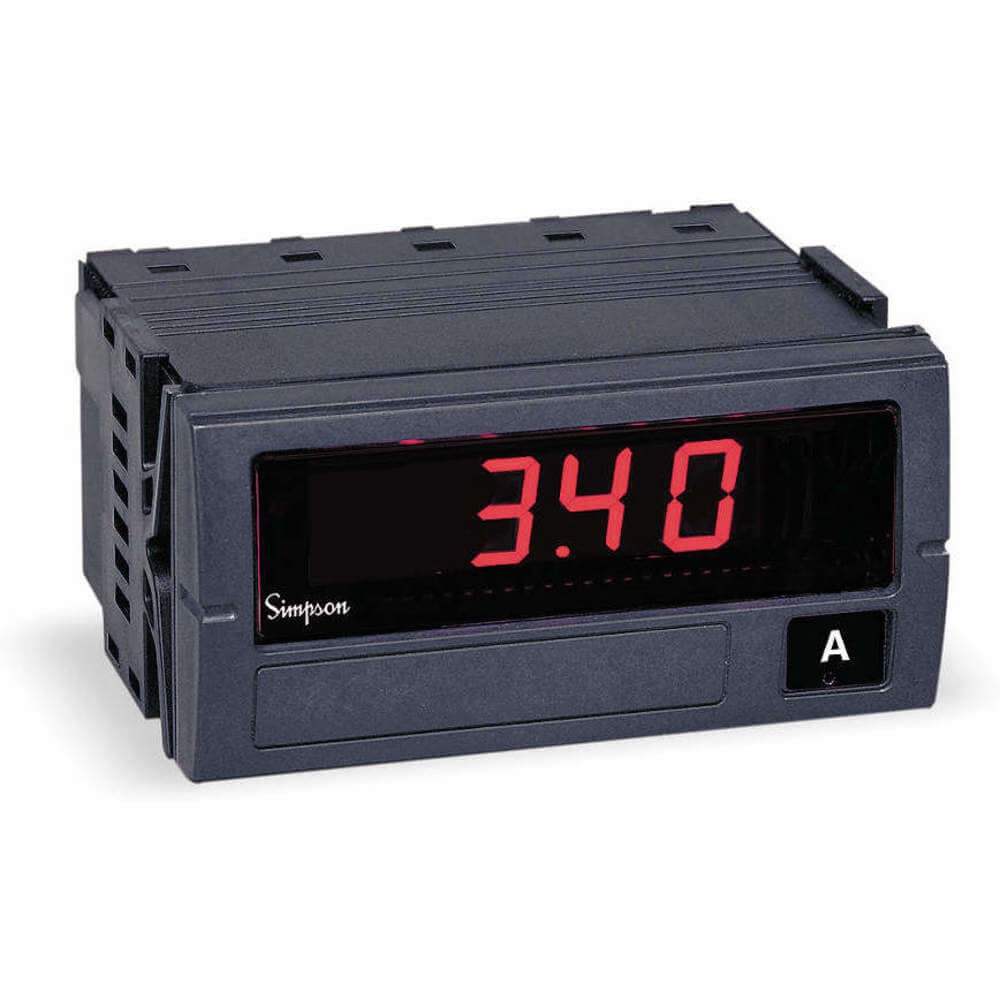

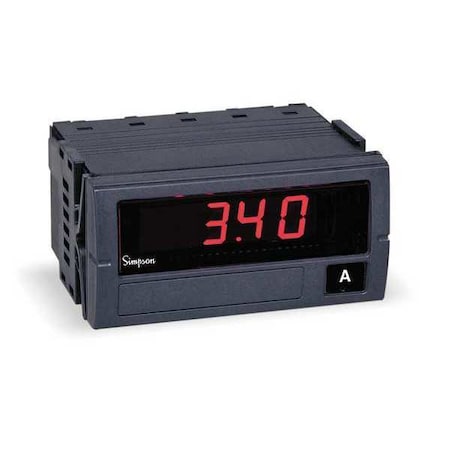

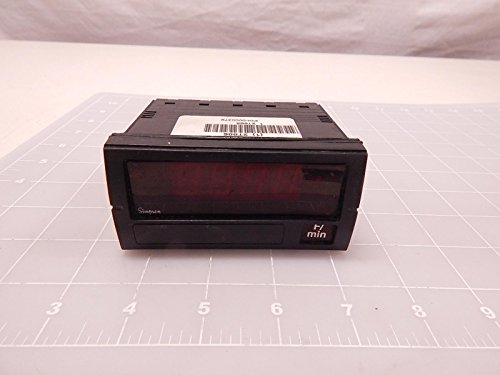

Simpson 2T885 Counter T78378
- Brand: SIMPSON
- PartNumber: 2T885
- Manufacturer: SIMPSON
- Label: SIMPSON
Attributes
| Key | Value |
|---|
| Accuracy | 0.2 %, +/-0.1% of readi. |
| Alarm Indicators | No |
| Analog Output | None |
| Approvals | NEMA 4X ; UL |
| Availability | Expected to ship in 1-2. |
| Brand | Simpson Electric |
| Casing Material | Noryl |
| Common Mode Rejection R. | 90 dB (Min.) |
| Communication | None |
| Connection Type | Screw |
| Connector Type | Screw Terminal |
| Current Stock | 3 |
| Depth | 2.94", 2.94 in |
| Dimensions | 3.78 L x 2.94 W x 1.89 . |
| Dimensions, Cutout, Inc. | 92 W x 45 H mm |
| Display | Red LED |
| Display Digit Height | 14.2 mm |
| Display Digits | 3.5, 3-1/2 |
| Display Resolution | 10 mV |
| Display Span | 0 to 100% |
| Display Type | LED |
| Excitation | None, No |
| Family Series | Simpson Electric Panel . |
| Fits | Standard 1/8 DIN Cutout. |
| Function | Process |
| Gross Weight | 1.4 lbs |
| Includes | Instructions |
| Input Impedance | 10 Megohms |
| Input Range | 0 to 10V DC, 0 to 10VDC |
| Input Voltage | 0-10 V |
| International Shipping | No |
| Item | Digital Panel Meter |
| Item Number | F35-1-73-0 |
| Manufacturer | Simpson Electric |
| Manufacturer Part Number | F351730 |
| Max Input Signal | Process 0-10 V |
| Maximum Opening Tempera. | +55 ?C |
| Measurement Range | 0 to 10 VDC |
| Measuring Range | 0 to 10 V |
| Meter Type | Digital |
| Minimum Operating Tempe. | 0 ?C |
| Mounting | Clip |
| Mpn | F35-1-73-0 |
| Net Weight | 1.4 lbs |
| Nominal Size | 1/8 DIN |
| Nominal Supply Voltage | 120 VAC |
| Number of Digits | 3.5 |
| Operating Temperature | 32-131 ?F, 0 to +55 ?C |
| Overload | 100 V (Max.) |
| Package Quantity | 1 |
| Panel Cut Out | 1?8 DIN |
| Panel Meter Type | Digital Panel Meter |
| Power Dissipation | 3 VA |
| Power Required | 120VAC, 120V AC |
| Power Supply | 120 VAC |
| Primary Type | Electronic |
| Product Header | Falcon F35 Series Digit. |
| Product Series | Falcon F35 |
| Relays | 0 |
| Response Time | 1 Sec. (Max.) |
| Series | F35 Series |
| SKU | ZO-G3424906 |
| Standards | UL Listed |
| Style | Falcon |
| SubCategory | Test Instruments |
| Supply Voltage | 120 VAC |
| Temperature Range | 0 to 55 C |
| Type | Process, Electronic |
| Type (Engineering Units) | DC Volts |
| Weight | 9 Oz. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B005T5JOJE | 194.36 | 1 | In Stock | 2 | SIMPSON ELECTRIC | | 194.36 @ 1 |
 | Galco | F35-1-73-0-SPSN | 246.42 | 1 | 2 | | Simpson Electric | 1.4 | 246.42 @ 1 |
 | Newark | 93F9487 | 261.59 | 1 | 6 | | SIMPSON | | 261.59 @ 1 |
 | Zoro | G3424906 | 261.99 | 1 | 8 | | Simpson Electric | 0.75 | 261.99 @ 1 |
 | sustainablesupply.com | C1759558 | 275.67 | 1 | In Stock | | Simpson Electric | 0.75 | 275.67 @ 1 |
 | simsupply.com | ZO-G3424906 | 300.67 | 1 | 3 | | Simpson Electric | | 300.67 @ 1 |
| us.rs-online.com | 70209582 | 305.45 | 1 | 2 | | Simpson | 0.5625 | 305.45 @ 1 |
 | Raptor Supplies | AC3FEL | 363.7085985 | 1 | In Stock | | SIMPSON ELECTRIC | | 363.7085985 @ 1 |
| grainger.ca | WWG2T885 | 384.21266416 | 1 | In Stock | | SIMPSON ELECTRIC | 0.75 | 384.21266416 @ 1 |
