Square D R889958-9422TEF10

B09Z4L1GJK

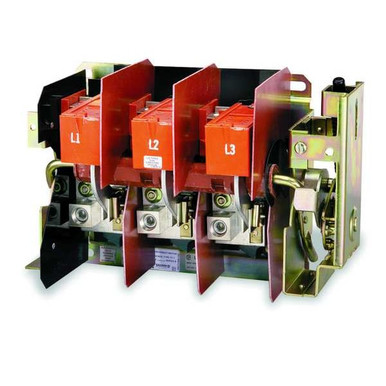

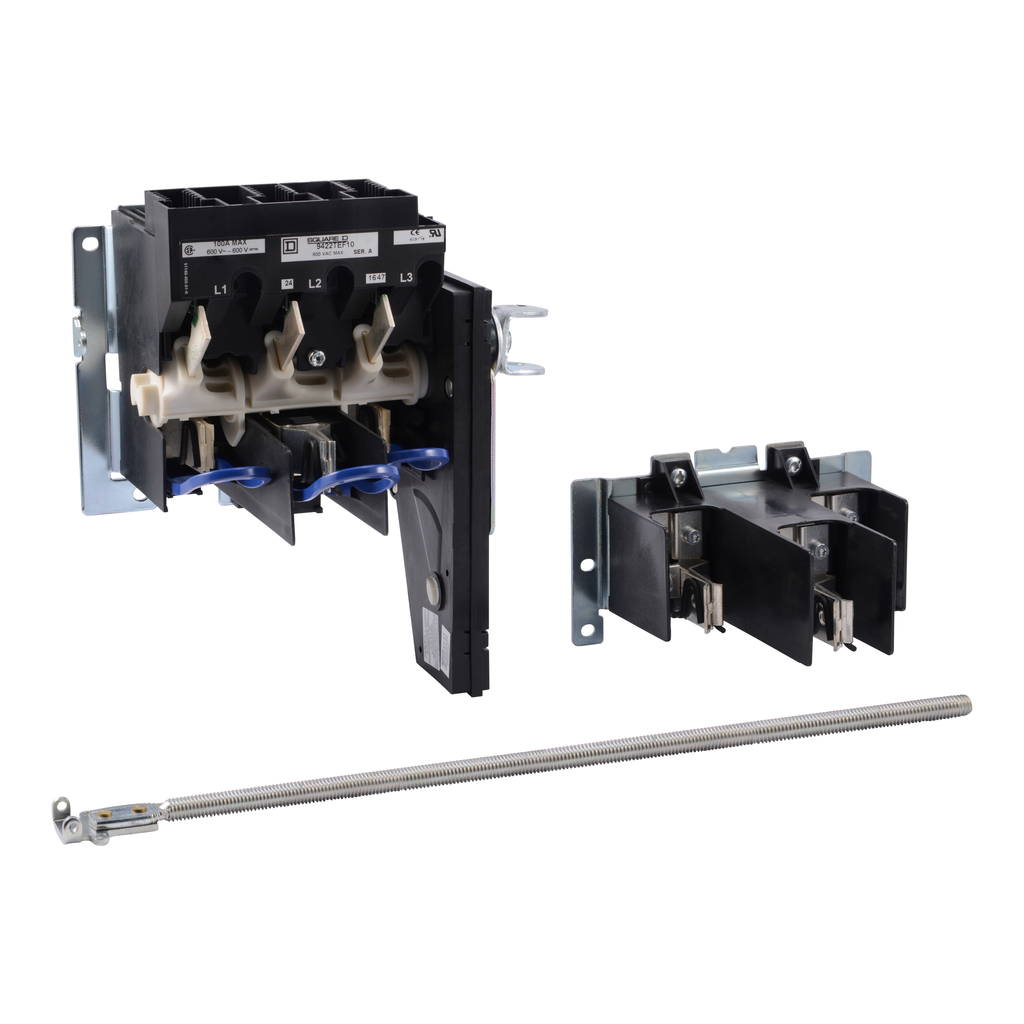

SQUARE D 9422TEF10 3P 100A AMP 600V-AC/DC FUSIBLE Disconnect Switch

SQUARE D 9422TEF10 3P 100A AMP 600V-AC/DC FUSIBLE Disconnect Switchzoom

Attributes

Key Value
Actuator9422 TYPE A HANDLE (PUR.
Amperage Rating100
Amps100 A
Amps AC100 A
ApplicationROD OPERATED - VARIABLE.
Associated Fuse Rating100 A 250/600 V
BrandSquare D, Square D by S.
California Proposition .Lead and lead compounds.
Catalog Number9422TEF10
China Rohs RegulationPro-active China RoHS d.
ConditionNew
ConnectionFLANGE MOUNT
Contact Form3PST
Country of Origin00 - Unknown, Mexico
Current Stock3
Depth2 1/2 in
Disconnector Device Typefusible disconnect swit.
DutyStandard
ECCNEAR99
EnclosureFLANGED
Estimated Lead Time (in.6
Eu Rohs DirectiveCompliant
Family SeriesSquare D Miscellaneous
Fuse ClipClass H, K, J, R Fuses
Fuse TypeJ || R || K || H
Fusible / NonfusibleFusible
Gross Weight7.035 lbs
GTIN785901879831
Height3 1/4 in
IncludesMOUNTING HARDWARE
International ShippingNo
ItemFlange Mount Disconnect.
Item Number9422TEF10
Item TypeFusible disconnect swit.
Lead TimeExpected to ship in 1-2.
Line Rated Current100 A
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number665500
Max. HP @ 208V25 hp
Max. HP @ 230V30 hp
Max. HP @ 250VDC20 hp
Max. HP @ 460V60 hp
Max. HP @ 575V75 hp
Max. Mounting Depth18.0 in
Maximum Horse Power Rat.25 hp 200 V AC || 30 hp.
Maximum Mounting Depth18 in
Mercury FreeYes
Min. Mounting Depth6.63 in
Minimum Mounting Depth6.63 in
Mountingflange rod variable dep.
Mpn9422TEF10
Net Weight7.035 lbs
Number of Poles3, 2
Number of Wires3
Phase3
Product CertificationsUL Recognized || CSA
Product Mountingflange rod variable dep.
Product Or Component Ty.Disconnect Switch
Protection MethodFusible
Provided Equipmentordered separately
Range Of Product9422T
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SKUZO-G3209394
Special FeaturesINCLUDES FUSIBLE DISCON.
StandardUL98 RECOGNIZED - CSA C.
Sub BrandSchneider Electric
SubCategoryElectrical
Toxic Heavy Metal FreeYes
Trip TypeCLASS H, K, J AND R 100.
UNSPSC39122233
UPC785901879831
Voltage600V AC/250V DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width2 1/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.com9422TEF10734.061In StockSquare D734.06 @ 1
thumbzoomindustrialrefrigerationparts.com9422TEF10769.31In StockSquare D2.0769.3 @ 1
thumbzoomsustainablesupply.comC1194761821.31In StockSquare D7.65821.3 @ 1
thumbzoommostelectric.com9422TEF10842.081In StockSQUARE D/TELEMECANIQUE842.08 @ 1
thumbzoommayerelectric.comSQD9422TEF10844.871In StockSQUARE D844.87 @ 1
thumbzoomGalco9422TEF10-SQD847.621In StockSquare D7.035847.62 @ 1
thumbzoommidwestapplianceparts.com9422TEF10-SQ-P925.411In StockSquared925.41 @ 1
thumbzoomZoroG3209394973.99111Square D7.65973.99 @ 1
thumbzoomNewark17B37061000.051In StockSQUARE D BY SCHNEIDER ELECTRIC1000.05 @ 1
thumbzoomcrescentelectric.com1432231024.01In StockSquare D by Schneider Electric1024.0 @ 1
thumbzoomsimsupply.comZO-G32093941033.1513Square D1033.15 @ 1
Graybar960739671076.8241In StockSquare D (Schneider Electric)1076.824 @ 1
thumbzoomNational Supply Network696813361182.01In StockSquare D1182.0 @ 1
grainger.caSQD9422TEF101234.871812281In StockSQUARE D7.651234.87181228 @ 1
thumbzoomRaptor SuppliesAH9JZR2168.45231851In StockSQUARE D2168.4523185 @ 1
