TB Woods 72H300

B004LB5VC6

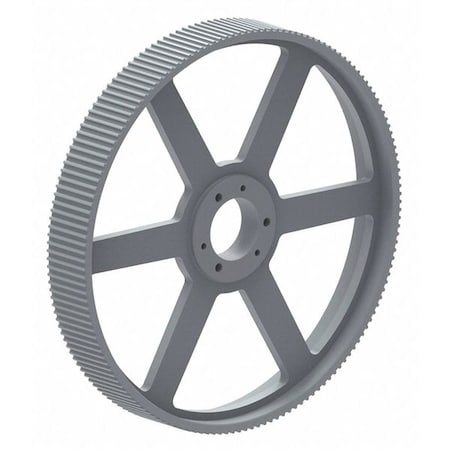

Timing Pulley,72H300-SF

Timing Pulley,72H300-SFzoom

Attributes

Key Value
belt type:H
Belt width3.000 in
Bore typeQuick disconnect bushing
bore type:QD Bushed
BushingSF
Bushing bore range1/2 - 2 15/16
bushing series:J
Dimension2
Face width3.38
face width:3.69 in
FlangesNo Flanges
Groove profileH
Hub Diameter5.25
Hub diameter5.25
hub diameter:8 in
Hub length1.25
Hub location1
I.D.10.38
Inertia WR2 (lbs ft2)3.61
Inertia WR?3.61
Inside hub projection0
ItemTiming Pulley,72H300-SF
length through bore:1 in
manufacturer upc number:698672330237
Material typeCast Iron
material:Cast Iron
Number of grooves72
Number of hubs2
number of hubs:2
Number of teeth72
O.D.11.41
O.D. (in)11.405
Outside hub projection0
Pitch1/2 in (H)
Pitch diameter11.46
pulley construction:Spoked
Rim face3.375
RPM upper limit2200
Tooth pitch1/2
with flanges:No Flanges

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply351077410.01In StockTB Woods410.0 @ 1
thumbzoomZoroG1551118470.111In Stock11Tb Woods24.0470.11 @ 1
motionindustries.com007120691826.891In StockTB Woods (Altra)1826.89 @ 1
