- mpnM18-6R/SX
- brandname: 3-M
- manufacturername: 3-M

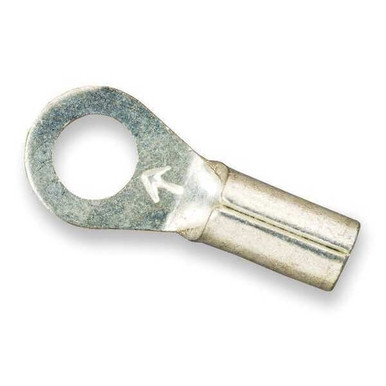

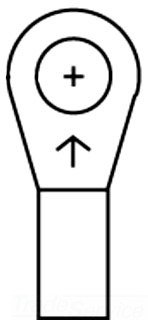

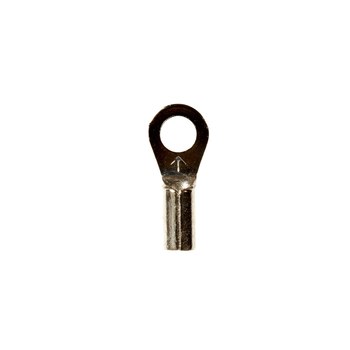

3M(TM) Scotchlok(TM) Ring Non-Insulated, 100/bottle, M18-6R/SX
- Brand: 3M
- PartNumber: M18-6R/SX
- Model: M18-6R/SX
- Size: One Size
- PackageQuantity: 1
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | M18-6R/SX |
| Allowable Gauge Range | 22 - 18 |
| Barrel Inside Diameter | 0.07 in |
| Barrel Length | 0.25 in |
| Barrel Style | Brazed |
| Brand | 3M |
| Category | Electrical Terminals |
| Clearance | 0.22 in |
| Color | Silver, Red, Metallic |
| Compatible with Product. | Building Wire, Fixtures. |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 42 |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| For Wire Sizes | 22 AWG to 18 AWG |
| Hole Spacing | 0.22 in |
| Inside Diameter | 0.07 in |
| Insulation Color | Bare |
| Insulation Coverage | None |
| Insulation Material | Non-Insulated, None |
| Insulation Type | Non-Insulated |
| International Shipping | No |
| Item | Ring Terminal |
| Manufacturer | 3M |
| Max. Temp. | 347 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Tempe. | 347 Degrees F |
| Maximum Voltage | 1,000 V |
| Maximum Wire Size | 18 AWG |
| Minimum Conductor Leg D. | 22 AWG |
| Minimum Operating Tempe. | 347 Degrees F |
| Minimum Wire Size | 22 AWG |
| Mpn | M18-6R/SX |
| Overall Length | 0.6 in |
| Overall Width | 0.25 in |
| Package Quantity | 100 per bottle, 500 per. |
| Ring Width | 0.25 in |
| Ring Width Ranges | 0.00 - 0.25 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Scotchlok Series |
| SKU | ZO-G3355247 |
| Special Features | Beveled Mouth, Corrosio. |
| Standards | CSA Certified, UL Listed |
| Stud Size | #8, #6 |
| SubCategory | Electrical |
| Terminal Connection | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Tongue Length | 0.35 in |
| Tongue Thickness | 0.03 in |
| Tongue Width | 0.25 in |
| Tongue Width - Wire Con. | 0.25 in |
| Trade Name | Scotchlok |
| Type | Ring Tongue |
| UNSPSC | 39121432 |
| UPC | 0051128586409, 05112858. |
| Wire Range | 22 to 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | MMM M18-6R/SX | 0.47 | 1 | 212 | | 3M | | 0.47 @ 1 |
 | Platt.com | 0063709 | 0.62 | 1 | 200 | | 3M | | 0.62 @ 1 |
| Dale-Electric | M18-6R/SX | 30.67 | 1 | In Stock | | 3M | | 30.67 @ 1 |
 | Zoro | G3355247 | 36.0 | 1 | 170 | | 3M | 0.9 | 36.0 @ 1 |
 | rshughes.com | 051128-58640 | 38.0 | 100 | 212 | | 3M | | 38.0 @ 100 |
 | gordonelectricsupply.com | M18-6R/SX | 39.39 | 1 | 212 | 455 | 3-M | | 39.39 @ 1 |
| us.rs-online.com | 70113360 | 39.66 | 1 | In Stock | | 3M | | 39.66 @ 1 |
 | Newark | 66W6026 | 62.31 | 1 | In Stock | | 3M | | 62.31 @ 1 |
 | simsupply.com | ZO-G3355247 | 64.48 | 1 | In Stock | | 3M | | 64.48 @ 1 |
