BELDEN WIRE & CABLE CO. 649948 8771000

B00LTMPNLO

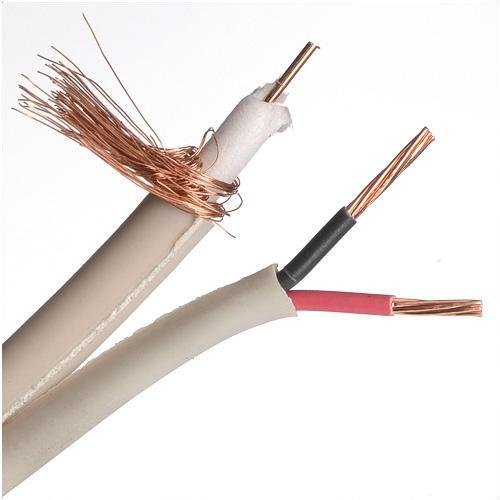

Belden Wire & Cable Co. - 1000FT - 649948 8771000 - Natural Color PTZ (CCTV+Power/Audio) Cable

Belden Wire & Cable Co. - 1000FT - 649948 8771000 - Natural Color PTZ (CCTV+Power/Audio) Cablezoom

Attributes

Key Value
AWG Size20
Base Product Number649948
Cable GroupRG-59
Cable TypeCoaxial - Plenum
CategoryCables, Wires
ColorNatural
Conductor Configuration2 Components
Conductor Count3
Conductor MaterialBare Copper, Copper, Ba.
Conductor Material and .Bare Copper - Solid
CPR EuroclassEca
DescriptionRG59 + 2C18 CMP SIAM
Detailed DescriptionCoaxial - Plenum Cable .
Dielectric Diameter0.062" (1.58mm), 0.133".
Dielectric MaterialFoam Fluorinated Ethyle.
Digi-Key Part NumberBEL8744-1000-ND
Environmental SpaceIndoor - Plenum
EU CE MarkYes
EU Directive 2015/863/EUYes
Impedance75 Ohms
Insulation MaterialFEP
JacketPVC-LS
Jacket (Insulation) Dia.-
Jacket (Insulation) Mat.Low Smoke Poly-Vinyl Ch.
Jacket ColorNatural
Length1000.0' (304.80m), 1000.
ManufacturerBelden Inc.
Manufacturer Product Nu.649948 8771000
Manufacturer Standard L.2 Weeks
Material@InnerShield01Bare Copper (BC)
Material@Insulation01PE - Polyethylene (Foam)
MfrBelden Inc.
NEC ArticlesArticle 800
Operating Temperature-20?C ~ 75?C
PackageSpool
Package Quantity1
Product StatusActive
Put-Up TypeReel
Series-
Shield Coverage95%
Shield MaterialCopper, Bare
Shield TypeBraid
ShieldingBraid(s)
Stranding@Conductor1Solid
Suitability - IndoorYes
UL FlammabilityNFPA 262
UL Temp Rating75?C
UL voltage rating300 V RMS
VoP, Velocity of Propag.84
Wire Gauge20 AWG, 18 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
alldataresource.comB649948-10001.46168Belden1.46 @ 1
thumbzoomZoroG3176416716.99168Belden716.99 @ 1
thumbzoomMarkertekBL-649948-1000757.55168Belden757.55 @ 1
thumbzoomDigi-Key8270925940.19168Belden Inc.940.19 @ 1
thumbzoomNewark87K14771053.06117BELDEN1053.06 @ 1
us.rs-online.com723945831088.09168Belden1088.09 @ 1
