A. O. Smith 7RA1016

mpn7RA1016
brandname: Century
manufacturername: Century

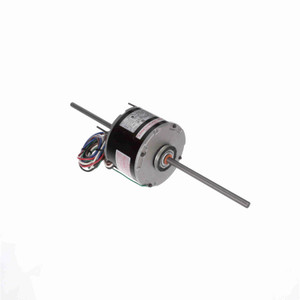

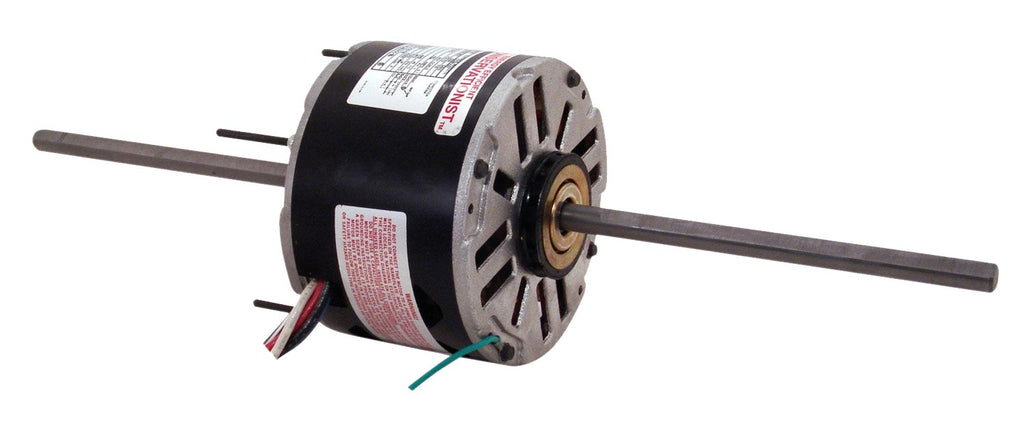

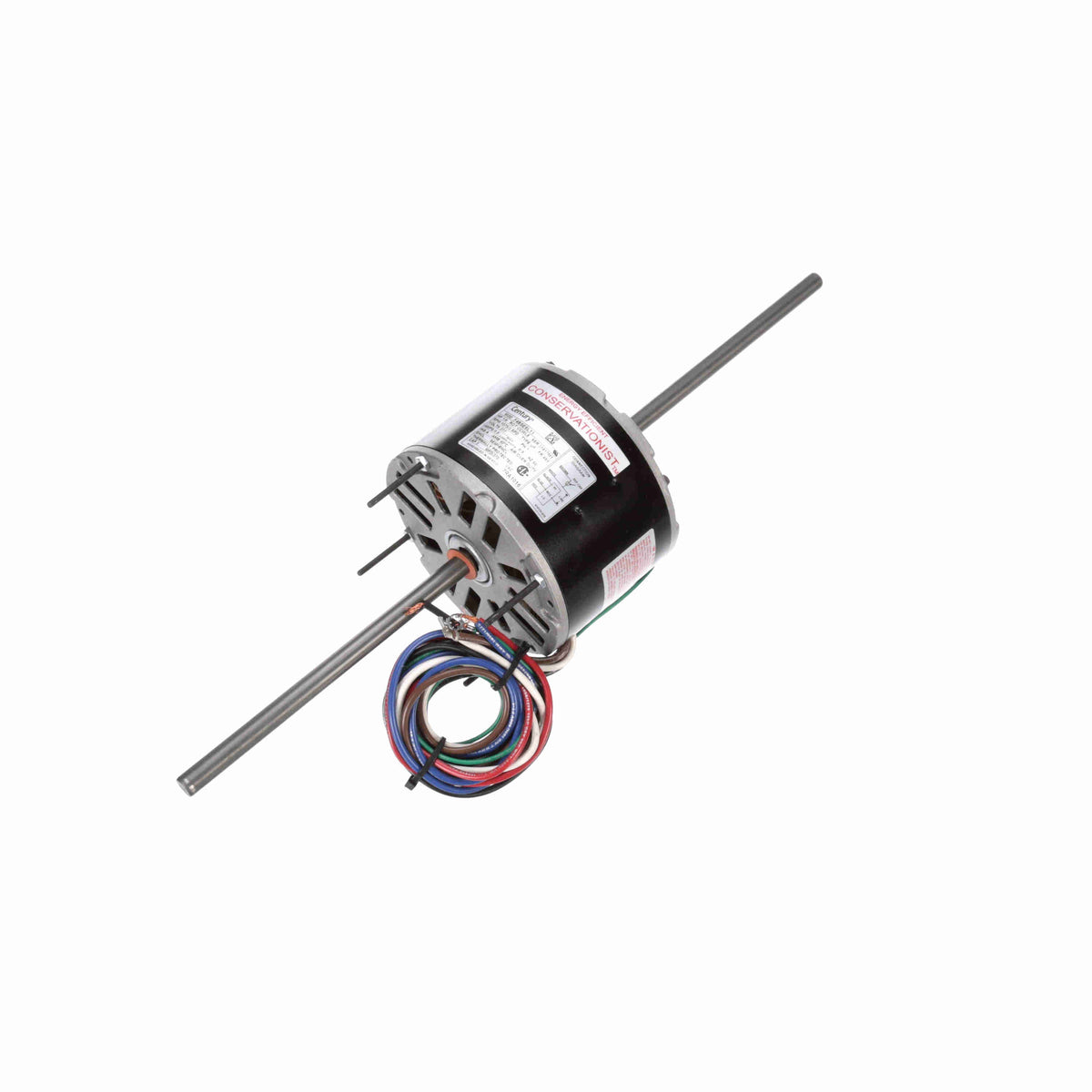

A.O. Smith 7RA1016 1/6 HP 277 Volt 1075 RPM Blower Motor 7RA1016

A.O. Smith 7RA1016 1/6 HP 277 Volt 1075 RPM Blower Motor 7RA1016

zoom

Brand: A. O. Smith
PartNumber: 7RA1016
Manufacturer: A.O. Smith
Label: A.O. Smith

Attributes

Key	Value
7RA1016 is listed in Ce.	A.O. Smith F48SE6L11, A.
Amps	0.8
Bearings	Sleeve
Brand	Century
C-Dimension	20.00 (in.)
Capacitor	5MFD @ 370VAC Required
Catalog Number	7RA1016
CE	N
Country of Origin (subj.	Mexico
CSA	Y
DE Bearing Type	Sleeve
DEM Reference	NOHP
Duty	Air Over, Continuous
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Se.
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60
HP	1/6
Hz	60
Insulation Class	A
IP Code	-
Item	5-5/8in. Dia.Dbl. Shaft.
KVA Code	-
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Mounting	Band/Ring/Stud
Mounting Type	Resilient Ring/Extended.
Number of Speeds	3
ODE Bearing Type	Sleeve
Phase	1
Product Category	HVAC/R Motors > Fan Co.
Product Type	PSC (Permanent Split Ca.
Rotation	Double Shafted, Counter.
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Service Factor (SF)	1.00
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	8.0 X.5 X8.1 (in.)
Shaft Length	8.02" x 8.12"
Shaft Type	Flat
Ship Weight	12 lbs.
Speeds	3
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Volts	277

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0789367	188.71	1	In Stock	26	Century		188.71 @ 1
	cshincorporated.com	7RA1016	213.51	1	In Stock		AO Smith / Century	12.0	213.51 @ 1
	hvacdiscountstore.com	CEN--7RA1016	213.55	1	In Stock		CENTURY MOTORS		213.55 @ 1
	emotorpro.com	7RA1016	248.6	1	In Stock		Century	12.0	248.6 @ 1
	sustainablesupply.com	C2090758	254.44	1	In Stock		Century	15.0	254.44 @ 1
	midwestapplianceparts.com	7RA1016-AO-P	258.19	1	In Stock		AO Smith		258.19 @ 1
	National Supply Network	B244555	258.81	1	In Stock		AO SMITH		258.81 @ 1
	Voomi Supply	7RA1016	271.55	1	In Stock		Century Motors		271.55 @ 1
	Global Industrial	WBB244555	274.95	1	In Stock		Century		274.95 @ 1
	patrickssupply.com	7RA1016	276.28	1	In Stock		CENTURY		276.28 @ 1
	ptacsolutions.com	7RA1016	302.8	1	In Stock		AO SMITH MAGNETEK		302.8 @ 1
	Dreisilker	CE-RBC-7RA1016	329.23	1	In Stock		Century		329.23 @ 1
