Dixon Valve & Coupling 66C-0504

mpn66C-0504
brandname: DIXON VALVE
manufacturername: DIXON VALVE

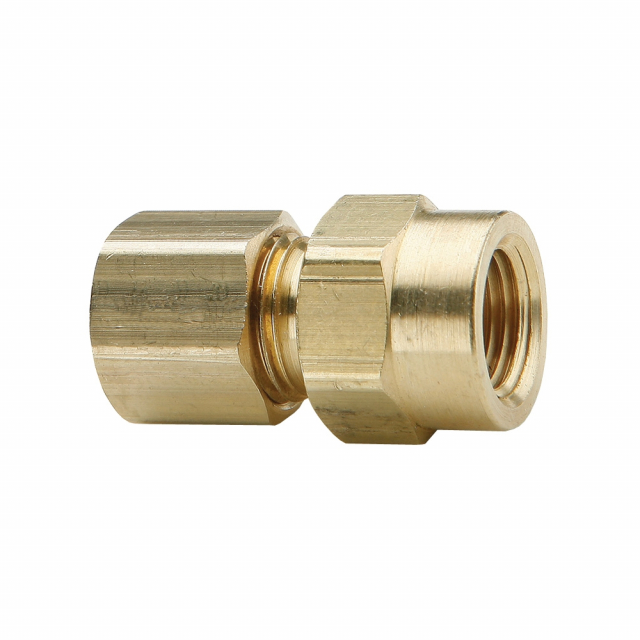

Dixon 5/16" x 1/4" Brass Female Connector Compression Fitting (66C-0504)

Dixon 5/16" x 1/4" Brass Female Connector Compression Fitting (66C-0504)

zoom

Brand: Dixon Valve & Coupling
PartNumber: 66C-0504
Color: Brass
PackageQuantity: 1
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
Application	Use with copper, alumin.
Brand	Dixon Valve & Coupling
Brand Name	DIXON?
Case Qty	10
Construction	Underwriter's Laborator.
Data	11/16" Hex Size
Description:	5/16" x 1/4" Brass Fema.
Domestic/Import	Domestic
End Style	Tube x NPTF x UNF
Fitting/Connector Type	Adapter
Hex	11/16", 11/16 in
Hex Size	11/16 in
Interchange	No flaring, soldering o.
Length	1.29 in, 1.29"
Length (in)	1.29
Manufacturer	Dixon Valve & Coupling,.
Manufacturer Part Number	66C-0504
Material	Brass
Max Temp (?F)	250
MFG Part #:	66C-0504
Min. Temp (?F)	-65
MPN	66C-0504
Nominal Size	5/16 in x 1/4 in x 1/2-.
Package Quantity	1/Each
Pressure Rating	300 PSI
Product	Adapters & Connectors
Product Type	Simple product
PSI	300 PSI
Safety Notes	Not recommended for ste.
Series	Compression Fittings, 6.
Standard Approvals	SAE J512/060103 BA
Supplier:	Dixon Valve & Coupling .
Temperature Range	-65?F to +250?F (-54?C .
Temperature range	-65F to 250F (-54C to 1.
Temperature Rating	-65 to 250?F, -65 to 25.
Thickness	0.032 in
Thread	NPTF UNF, NPTF x UNF
Thread Size	1/4" x 1/2"-24
Tube Size	5/16"
Tube size	5/16 in
UPC	697464422280
UPC:	697464422280
WARNING!	This product contains a.
Weight	0.074000
Weight Lb	0.0740
Working Pressure	300 PSI
Working pressure (psi)	300

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	andersonprocess.com	66C-0504	10.49	1	In Stock	26	Dixon Valve & Coupling	0.074	10.49 @ 1
	toolfetch.com	DIX-66C-0504	11.1	1	In Stock		DIXON VALVE		11.1 @ 1
	industrialzone.com	66C-0504	12.49	17	In Stock		Dixon	0.1	12.49 @ 17
	usmegastore.com	66C-0504	12.92	1	In Stock		Dixon Valve	0.074	12.92 @ 1
	Megadepot	66C-0504	12.92	1	In Stock		Dixon Valve	0.074	12.92 @ 1
	heavydutydepot.com	66C-0504	12.92	8	In Stock		Dixon		12.92 @ 8
	kscdirect.com	DIX 66C-0504	14.36	1	In Stock		Dixon Valve & Coupling Co		14.36 @ 1
	MRO Supply	105557	16.09	3	In Stock		Dixon		16.09 @ 3
	hanessupply.com	66C-0504-10639	18.55	1	In Stock		Dixon Valve & Coupling		18.55 @ 1
	Wilson	66C-0504	30.26	1	In Stock		Dixon		30.26 @ 1
