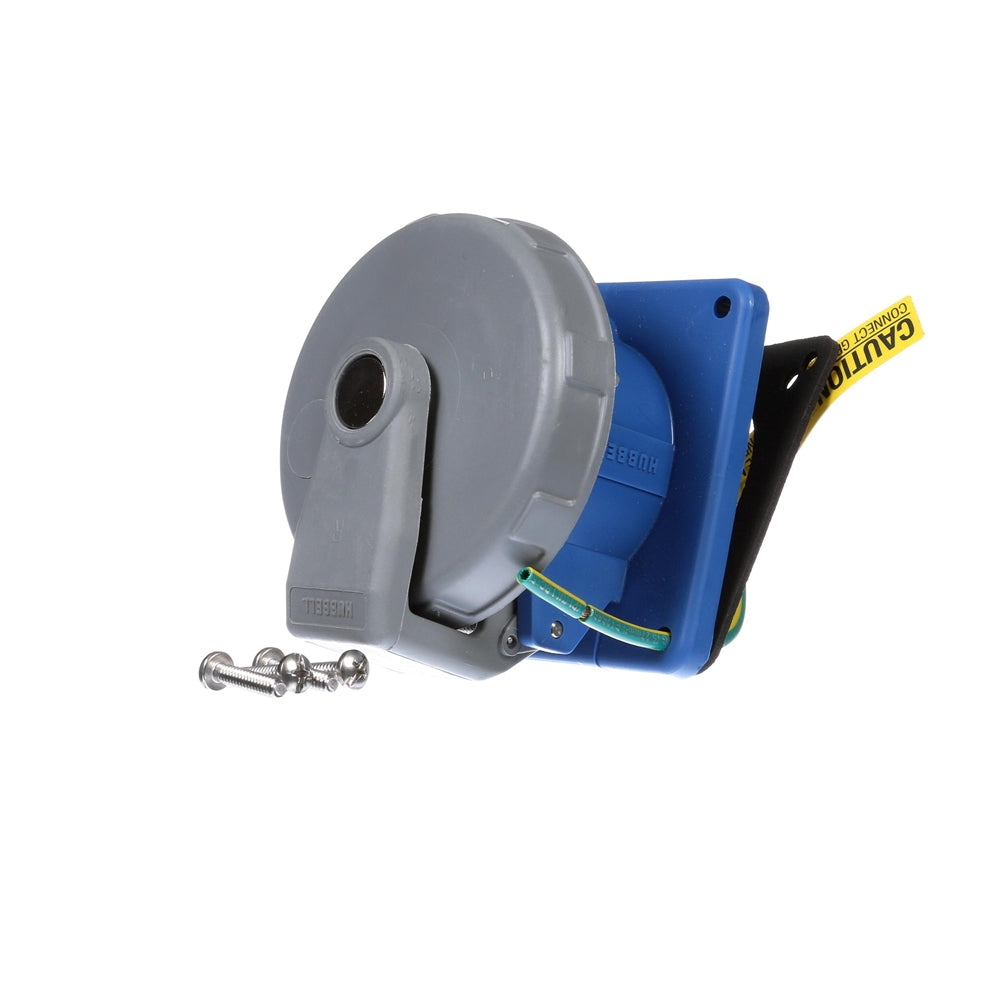

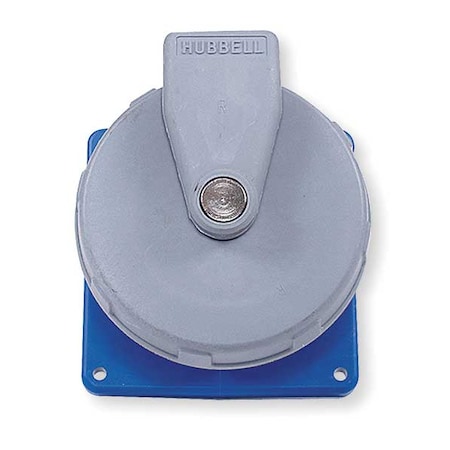

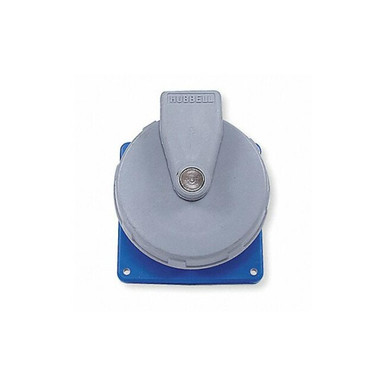

Kellems HBL330R6W

B00E2XL8SY

KELLEMS HBL330R6W R, 250V/32A 220-240V, IP67, Receptacle, IEC, 30A, PS, 2P3W

KELLEMS HBL330R6W R, 250V/32A 220-240V, IP67, Receptacle, IEC, 30A, PS, 2P3Wzoom

Attributes

Key Value
Amperage30A
Amperage Rating30A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Watertigh.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#12 AWG to #8 AWG
Body MaterialZytel 101 Nylon
Body Material - Pin and.Zytel 101 Nylon
BrandHubbell
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Case MaterialNon-Metallic
ColorBlue, Orange
Color - Plugs and Recep.Blue
Color FamilyBlue
Connection DescriptionWater Resistant
Connection OrientationStraight
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating30 A
Current Stock47
Display TypeStandard Sized Product
ECCNEAR99
Face Diameter3.6 in
Family SeriesHubbell Plugs & Recepta.
FeaturesColor Coded
Flange TypeFlanged
Gross Weight1.35 lbs
GroundingGrounded
Grounding StyleIEC
Horsepower Rating2 hp
Housing ColorOrange
Housing MaterialThermoplastic
Housing Material GradeZytel 101
Housing Material TypeNon-Metallic
HP2 hp
Hub Type Stand-InStraight
International ShippingNo
IP RatingIP67
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL330R6W
Lead TimeExpected to ship in 1-2.
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBL330R6W
MarketIndustrial
MaterialThermoplastic
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size1/0 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size3 AWG
Mounting Box Hub TypeReceptacle Only
MpnHBL330R6W
NEMA Enclosure Rating4X
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of Poles3, 2
Number of Poles & Wires3 Pole / 4 Wire
Number of Wires3, 4
PhaseSingle
Phase - Electrical1
Pin & Sleeve StandardsIEC 60309, UL 1682
Pin & Sleeve Standards`IEC 60309
Power Indicating LightNo
Product SeriesIEC Watertight
Rated Voltage250V AC
Resistance PropertiesImpact Resistant, Moist.
Reverse ServiceNo
ShroudedYes
SKUZO-G2298161
StandardCSA StandardC22.2 No. 1.
StandardsCSA Certified C22.2 No..
StyleStandard Service
SubCategoryElectrical
Switch RatedNo
Temperature Range (F)-40-167 ?F
Terminal TypeScrew
TypeWatertight Receptacle
UL 94 Flammability Rati.HB
UNSPSC39121406
UPC783585403625
Voltage250V, 250 V, 250VAC
Voltage - Plugs and Rec.250V AC
Voltage Color CodeBlue
Voltage Rating250 VAC
Wire Connection TypeScrew Terminals
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomglobalcommercialparts.comHBL_HBL330R6W129.291In StockHUBBELL129.29 @ 1
AmazonTPB00NGPTUFW131.351In Stock2Hubbell131.35 @ 1
Onlinecomponents.comHBL330R6W159.912HUBBELL159.9 @ 1
thumbzoomZoroG2298161195.01In StockHubbell1.3195.0 @ 1
thumbzoomKelly HayesHBL330R6W220.18110Hubbell Wiring Device-Kellems220.18 @ 1
thumbzoomsustainablesupply.comC1208871239.241In StockHubbell1.3239.24 @ 1
thumbzoomsimsupply.comZO-G2298161254.52147Hubbell254.52 @ 1
thumbzoomgordonelectricsupply.comHBL330R6W268.251In StockHUBBELL268.25 @ 1
standardelectricsupply.com2288164281.431In StockHubbell281.43 @ 1
thumbzoomMRO Supply1022138281.431In StockHubbell Wiring281.43 @ 1
thumbzoomGalcoHBL330R6W-HBBL289.711In StockHubbell1.35289.71 @ 1
thumbzoomRadwellHBL330R6W320.013HUBBELL KELLEMS320.0 @ 1
steinerelectric.com26976344.871In StockHubbell Wiring Device-Kellems344.87 @ 1
Graybar88126677352.06081In StockHubbell Wiring Device - Kellems352.0608 @ 1
us.rs-online.com71992817356.0711Hubbell Wiring Device-Kellems356.07 @ 1
Newark50F7938358.541In StockHUBBELL WIRING DEVICES358.54 @ 1
kirbyrisk.com1828708423.571In StockHubbell423.57 @ 1
thumbzoomRaptor SuppliesAE7YYW454.03517251In StockHUBBELL WIRING DEVICE-KELLEMS454.0351725 @ 1
