Ingersoll Rand 2475N5-P-460/3

B0098PA0UI

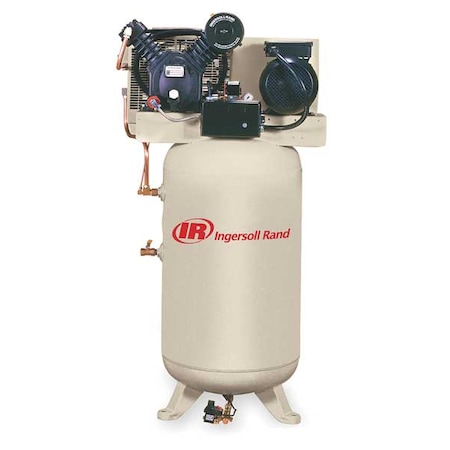

Electric Air Compressor,2 Stage,16.8 cfm

Electric Air Compressor,2 Stage,16.8 cfmzoom

Attributes

Key Value
Air Tank Size80 gal
Air Tank StyleVertical
ASME TankYes
BrandIngersoll Rand
Compressor Package TypeFully Packaged
Compressor TypeTank Mounted
Control TypePressure Switch
Current Rating6.25 A
Cylinder MaterialCast Iron
Duty CycleContinuous
Enclosure RatingNEMA 1
Enclosure TypeOpen Dripproof
FinishPowder Coated
Free Air CFM @ Max. Pre.16.8
Free Air Flow Rate @ Ma.16.8 cfm
Frequency60 Hz
HP5
IncludesAir Cooled Aftercooler;.
Inlet Size3/4 in
Input Voltage480V AC
International ShippingNo
ItemElectric Air Compressor
Life Expectancy15,000 hr
Lubrication TypeSplash Lubricated
Max. Pressure175 psig
Max. Pressure - Air Com.175 psi
Maximum Operating Press.175 psi
Maximum Speed1,040 RPM
Motor TypeOpen Dripproof
Mpn2475N5-P-460/3
Number of Stages2
Off Pressure Switch Set.175 psi
On Pressure Switch Sett.135 PSI
Outlet GenderFemale
Outlet Size3/4 in
Outlet TypeNPT
Output Power5 hp
Overall Height70.12 in, 70 1/8 in
Overall Length38 1/8 in, 38.12 in
Overall Width24 in
Phase3, Three
Pump LocationTop Mount
Pump Oil Capacity41.6 fl oz
Pump StyleSimplex
Pump TypeReciprocating
SKUZO-G4483281
Sound Level79.4 dBA
StandardsASME, California Code, .
Style - Air CompressorSimplex
SubCategoryPneumatics
Tank Size80 gal.
Tank Size - Air Compres.80 gal
Tank TypeVertical
Thermal ProtectionThermal Overload Relays.
UPC094721709632
Voltage460V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG44832813935.017Ingersoll-Rand597.03935.0 @ 1
thumbzoomsimsupply.comZO-G44832814917.561In StockIngersoll Rand4917.56 @ 1
grainger.caIRG2475N5P4605227.777392321In StockINGERSOLL RAND597.05227.77739232 @ 1
