Intermatic EK4436SM

B01IXUYB9E

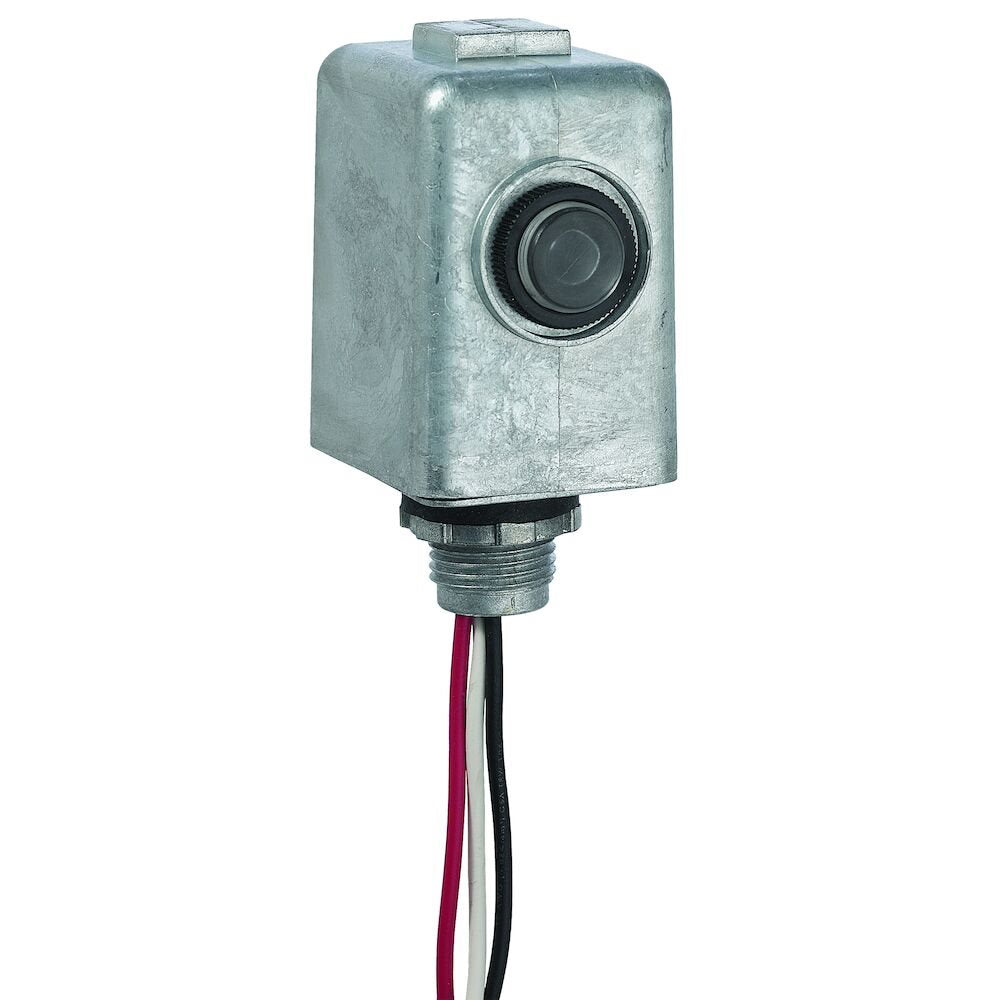

Intermatic EK4436SM Die Cast Metal Stem Mount Electronic Photo Control

Intermatic EK4436SM Die Cast Metal Stem Mount Electronic Photo Controlzoom

Attributes

Key Value
-40 Deg. FStart Temp. (Min)
078275148406UPC
1000 WattsWatts Tungsten
105-305VACVoltage (V)
158 Deg. FStart Temp. (Max)
18 AWGWire Gauge
8-year Limited 8-yearWarranty
Accessory TypePhotocontrol
Activation Off4.5 fc
Activation On1.5 fc
Amperage Rating6 Amp Ballast
Application Compatibili.LED; Incandescent; HID
ApplicationsOutdoor Lighting Control
Ballast Fluorescent1800 VA
Ballast Load1800 VA
Brand NameIntermatic
Certification AgencyPROP65
Certification NumberWARNING: Cancer and Rep.
ColorGray
Conductor Size18 AWG
ConstructionDie Cast Zinc
Contact ConfigurationSPST
Contact FormSPST
Country of OriginCN - China, Mexico
Country Of OriginChina
Country of Origin (subj.Mexico
Cover ColorGray
cULus , CSAUL Listed
Degree of ProtectionNo
Depth2 1/4 in
Description/Special Fea.10,000 ON/OFF Switching.
Description:PHOTOCONTROL, ELECT,
Dimensions1.75 in W x 2.25 in D x.
ECCNEAR99
EK4436SMStock Code
Electronic Ballast Load.6 A, 120 VAC, 50 Hz; 6 .
Electronic Ballast Load.6 A, 120-277 VAC, 50/60.
EnclosureRaintight
Enclosure TypeRaintight
Energy Star FlagNo
Environmental Conditions-40 to 158 deg F Operat.
Expected Lifetime Opera.10000
Expected Lifetime Years15
Fail ModeON
Family SeriesIntermatic Miscellaneou.
Fix Mount Electronic Ph.Family
Foot Candles Off2.25
Foot Candles On1.5
For Use WithFlood Lights and Securi.
Frequency Rating50/60 Hz
Gross Weight0.6 lbs
GTIN50078275148401
Housing MaterialDie-Cast Metal, Die-Cas.
IncludesLock Nut and Light Shie.
Input Voltage Ranges120-277 VAC, 50/60 Hz (.
IntermaticBrand
ItemPhotocontrol
Item NameElectronic Photocontrol
Item NumberEK4436SM
Length2 11/16 in
Length (Straight Wirewa.2 11/16 in
ManufacturerIntermatic
Manufacturer NameIntermatic
Manufacturer Part NumberEK4436SM
Manufacturers Warranty .8 yr
MaterialDie Cast Zinc
Max. Ballast Amps15.0 to 6.5
Max. Incandescent Amps15.0
Max. Wattage1,800
Maximum Load CapacityInductive: 1800 Watt, 1.
MFG Part #:EK4436SM
MountingStem, 1/2"-14 NPSM Thre.
Mounting TypeStem Fixed
Net Weight0.6145 lbs
Operating Cycles10000 Cycles
Operating Temperature M.158?F; 70?C
Operating Temperature M.-40?F; -40?C
Operating Voltage Ranges102-305 VAC
Other CertificationsTitle 20;Ansi C136.24
PDF Standards And Certi.RoHS; Title 20; UL
Photocontrol Photocell .Silicon Diode
Photocontrol Sensor Loc.Side
Photocontrol StyleStem Mount
Photocontrol Switch TypeRelay
Photocontrol TypeElectronic
Product Depth2.1875 in; 55.6 mm
Product Height2.6875 in; 68.3 mm
Product SeriesNightFox
Product TypePhotocontrol
RoHS CertificationYes
RoHS FlagContact manufacturer
Sensitivity1.5 fc ON/2.25 fc OFF
Sensor Time DelayInstant ON; 2 sec to 5 .
Sensor TypeSilicone
SettingDusk to Dawn
StandardsCalifornia Proposition .
Stem MetalType
Supplier:Intermatic
Surge Protection Techno.255 J MOV, 5, 000 A Sur.
Temp. Range-40 Degrees to 158 Deg.
Temperature Rating-40 to 70 deg C
Time Delay2 - 5 sec
Timing RangeDusk On/Dawn OFF
Tungsten Load Ratings1000 W
Tungsten Load Ratings R.1000 W
Tungsten Rating1000 W
UL CertificationcULus
UNSPSC39121528, 39121524
UPC078275148406, 078275148.
UPC:078275148406
Usage EnvironmentsOutdoor
VA Ballast1800
Voltage105 to 305V AC
Voltage Rating120 to 277 VAC, 105 - 3.
Volts AC120-277
Warranty Period8-Year limited
Wattage1000
Watts Tungsten1000
Width3 3/4 in
Wire Lead Length6 in; 152.4 mm
Wire Size18 AWG
Wire Size Max#18 AWG
Wiring OptionWire leads

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB01IXUYB9E27.871In Stock2Intermatic27.87 @ 1
thumbzoomturtle.comINT EK4436SM28.871In StockIntermatic28.87 @ 1
Hawk ElectronicsEK4436SM29.941In StockIntermatic29.94 @ 1
thumbzoombigfrogsupply.comEK4436SM29.941In StockIntermatic29.94 @ 1
thumbzoomZoroG541752030.611In StockIntermatic0.6130.61 @ 1
thumbzoomsustainablesupply.comC289145630.711In StockIntermatic0.6130.71 @ 1
Dale-ElectricEK4436SM32.341In StockINTERMATIC32.34 @ 1
Monarch Electric48868233.211In StockIntermatic33.21 @ 1
us.rs-online.com7179532036.221In StockIntermatic36.22 @ 1
kscdirect.comINT EK4436SM37.421In StockINTERMATIC37.42 @ 1
thumbzoomGalcoEK4436SM-TRMC38.381In StockIntermatic0.614538.38 @ 1
thumbzoomPlatt.com009933839.921In StockIntermatic39.92 @ 1
Graybar2581804043.6241In StockIntermatic43.624 @ 1
thumbzoommayerelectric.comINTEK4436SM48.0615INTERMATIC48.06 @ 1
thumbzoombulbspro.comEK4436SM53.881In StockIntermatic53.88 @ 1
thumbzoommidwestapplianceparts.comEK4436SM-IN-P59.381In StockIntermatic59.38 @ 1
kirbyrisk.com317558282.51In StockIntermatic82.5 @ 1
