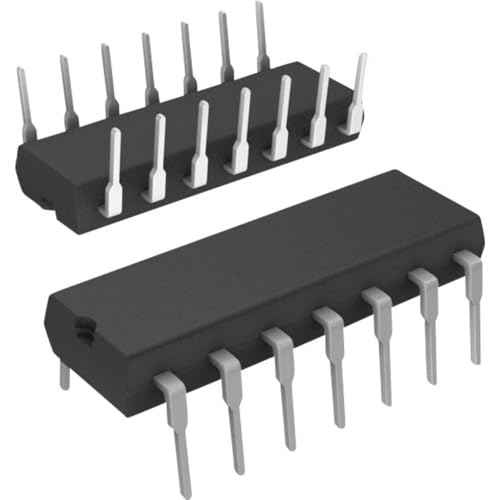

MICROCHIP PIC16F676-I/P

mpnPIC16F676-I/P
brandname: Microchip Technology Inc.
manufacturername: Microchip Technology Inc.

PIC16F676-I/P

Brand: MICROCHIP
PartNumber: PIC16F676-I/P
Model: PIC16F676-I/P
PackageQuantity: 1
Manufacturer: no manufacturer
Label: no manufacturer

Attributes

Key	Value
A/D Bit Size	10 bit
A/D Channels Available	8
ADC Resolution	10 bit
Alternate Part No.	579-PIC16F676-I/P
Architecture	RISC
Brand	Microchip Technology
Case	DIP14
Category	Integrated Circuits (IC.
Comparator Type	1
Connectivity	Brown-out Detect/Reset,.
Core	PIC
Core Processor	8-Bit
Core Size	20MHz
CPU Speed	5 MIPS
Data Bus Width	8 bit
Data Converters	Internal
Data RAM Size	64 B
Data RAM Type	RAM
Data Rate	5 MIPS
Data ROM Size	128 B
Data ROM Type	FLASH
Dimensions	0.775 x 0.280 x 0.195 in
EEPROM Memory	128 B
EEPROM Size	64 x 8
Family Name	PIC16
Frequency	20
Height	0.195" (5mm)
Input Output	12
Interface Type	RS-232, USB
Length	0.775 in
Manufacturer	Microchip, Microchip Te.
Manufacturer Part No.	PIC16F676-I/P
Maximum Clock Frequency	20 MHz
Maximum Number of UART .	1
Maximum Operating Tempe.	+ 85 C, +85 ?C
Memory Type	FLASH
Mfr	Microchip Technology
Minimum Operating Tempe.	-40 ?C, - 40 C
Mounting Style	Through Hole
Mounting Type	Through Hole, 14-DIP (0.
Number of ADCs	8 x 10 bit
Number of Bits	8
Number of I/Os	12 I/O
Number of IO Ports	12
Number of Pins	14
Number of Timers	2, 2 Timer
On-Chip ADC	Yes
Operating Supply Voltage	2 V to 5.5 V
Operating Temperature	Through Hole
Operating Voltage	2 to 5.5 V
Oscillator Type	-40?C ~ 85?C (TA)
Package	Active
Package / Case	14-PDIP
Package Type	PDIP
Package/Case	PDIP-14
Packaging	Tube
Part Status	PIC
Peripherals	1.75KB (1K x 14)
Processor Series	PIC16
Product Category	8-bit Microcontrollers .
Program Memory Size	FLASH, 1.75 kB
Program Memory Type	FLASH, 128 x 8
Programmable Memory	1.75K Bytes
RAM Size	64 B, 2V ~ 5.5V
Series	PIC16, Tube, PIC 16F Se.
SKU	390400
Speed	-, 20 MHz
Supplier Device Package	12
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2 V
Temperature Operating R.	-40 to +85 ?C
Timer Resolution	8, 16 bit
Timers	1 x 16 bit, 1 x 8 bit
Type	Integrated Circuit, PIC
USB Channels	1 x Device
Voltage - Supply (Vcc/V.	A/D 8x10b
Voltage Range	2-5.5 V
Width	0 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Win Source	PIC16F676-I/P	1.16	30	6310		Microchip Technology	1.16 @ 30
Hotenda	H2307650	1.3	1	6090		Microchip Technology	1.3 @ 5
Digi-Key	PIC16F676-I/P-ND	1.42	1	5		Microchip Technology	1.42 @ 5
Arrow	PIC16F676-I/P	1.536	1	5		Microchip	1.536 @ 5
Onlinecomponents.com	PIC16F676-I/P	1.65	1	510		MICROCHIP TECH.	1.65 @ 5
Newark	97K7348	2.09	1	296		MICROCHIP	2.09 @ 5
swatee.com	PIC16F676-I/P	2.51	1	81		Microchip	2.51 @ 5
TME	PIC16F676-I/P	2.59	1	113		MICROCHIP TECHNOLOGY	2.59 @ 5
us.rs-online.com	70045555	2.61	981	5		Microchip Technology Inc.	2.61 @ 981
RS Delivers	889-5304	3.144	1	300		Microchip	3.144 @ 5
Component Electronics	16F676-I/P-MICROCH	3.85	1	7		Microchip Technology	3.85 @ 5
Little Diode	PIC16F676-IP	5.9331285	1	5		Microchip	5.9331285 @ 5
AmazonTP	B07L465R2X	42.62	1	5	1	Microchip Technology	42.62 @ 5
