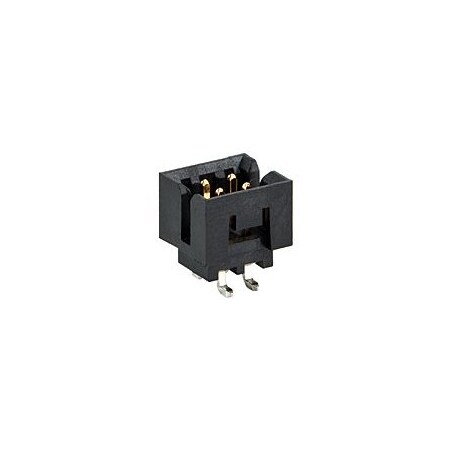

Molex / Waldom 87832-2620

mpn87832-2620
brandname: Molex
manufacturername: Molex

Molex / Waldom 87832-2620 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 87832-2620
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-87832-2620
Applications	Automotive, General Pur.
Base Product Number	087832
Brand	Molex
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Contact Material	Brass, Phosphor Bronze
Contact Plating	Gold
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Current Rating (Amps)	-
Description	CONN HEADER SMD 26POS 2.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM18718-ND
Fastening Type	Latch Holder
Features	Board Guide, Keying Slo.
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polyamide (PA), Nylon, .
Manufacturer	Molex
Manufacturer Part No.	87832-2620
Manufacturer Product Nu.	0878322620
Manufacturer Standard L.	24 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	125V
Mfr	Molex
Mounting Type	Surface Mount
Number of Contacts	26
Number of Positions	26
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Overall Contact Length	-
Package	Tube
Package Quantity	1
Packaging	Tube
Part # Aliases	0878322620
Pitch	2 mm
Pitch - Mating	0.079" (2.00mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	0.079" (2.00mm)
Series	Milli-Grid 87832, 87832
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Termination Style	SMD
Tradename	Milli-Grid
Type	Shrouded
Voltage Rating	-, 125 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	87832-2620	2.07	1	2613	MOLEX / WALDOM	2.07 @ 1
Newark	59J1830	3.14	3600	31	MOLEX	3.14 @ 3600
TME	MX-87832-2620	4.38	1	1000	MOLEX	4.38 @ 1
Digi-Key	1643325	4.66	1	573	Molex	4.66 @ 1
RS Delivers	670-1103	5.6136	1	590	Molex	5.6136 @ 1
swatee.com	87832-2620	6.09	1	88	Molex	6.09 @ 1
Zoro	G7769611	89.75	25	31	Molex	89.75 @ 25
