Molex / Waldom 87833-1020

mpn87833-1020
brandname: Molex
manufacturername: Molex

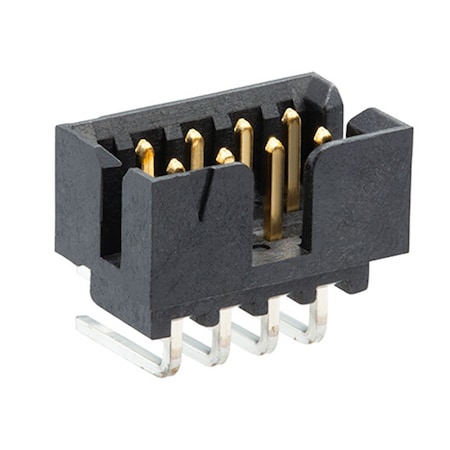

Molex / Waldom 87833-1020 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 87833-1020
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	7978818
Application	Signal ; Wire-to-Board
Applications	Automotive, General Pur.
Base Product Number	087833
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.085" (2.16mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 10POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM18861-ND
Family Name	Milli-Grid
Fastening Type	Push-Pull
Features	Surface Mount Compatibl.
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.248" (6.30mm)
Insulation Material	Polyamide (PA46), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0878331020
Manufacturer Standard L.	21 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	265?C
Max. Voltage	125V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Orientation	Right Angle
Overall Contact Length	-
Package	Tube
Package Quantity	1
Pitch	2.00 mm (0.079")
Pitch - Mating	0.079" (2.00mm)
Plating Material	Gold
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	0.079" (2.00mm)
Series	Milli-Grid 87833, 87833.
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder, Through Hole
Type	Right Angle Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	87833-1020	0.57	1	173	MOLEX / WALDOM	0.57 @ 1
Freelance Electronics	87833-1020	0.65414	1	14	MOLEX	0.65414 @ 1
Power and Signal Group	87833-1020	0.6573	3360	152	Molex	0.6573 @ 3360
Waldom	MOLEX 87833-1020	0.76	70	241	MOLEX	0.76 @ 70
jensentools.com	10197832	1.01	1	241	Molex	1.01 @ 1
RS Delivers	797-8818	1.344	1	5	Molex	1.344 @ 1
Digi-Key	679689	1.76	1	2427	Molex	1.76 @ 1
Newark	39K3707	1.79	1	55	MOLEX	1.79 @ 1
us.rs-online.com	70375129	1.8	2	15	Molex Incorporated	1.8 @ 2
Zoro	G7769602	111.3	70	55	Molex	111.3 @ 70
