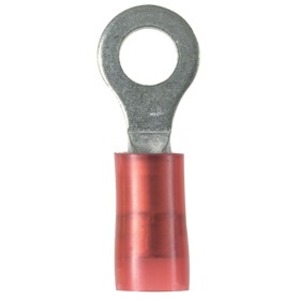

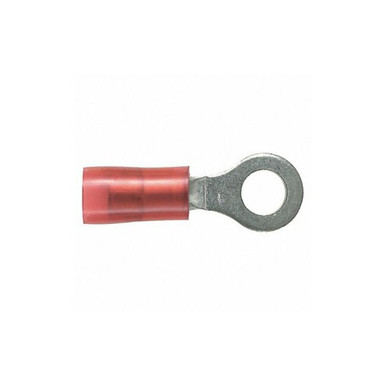

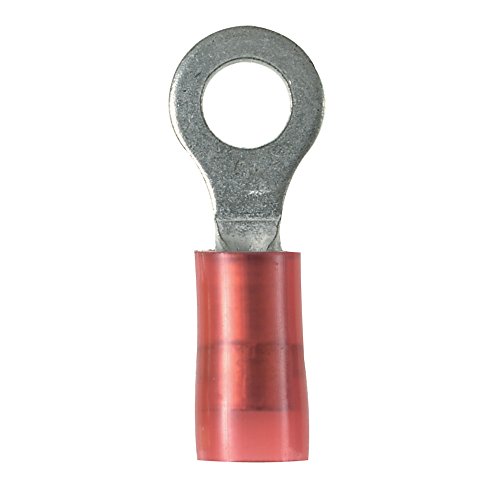

Panduit PN18-8R-C Ring Terminal, Nylon Insulated, 22 - 18 AWG, #8 Stud Size, Red (100-Pack)
- Brand: Panduit
- PartNumber: PN18-8R-C
- Model: PN18-8R-C
- Color: Red
- Size: 100-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Alternate Part No. | 644-PN18-8R-C |
| Alternate Parts | PN18-8R |
| Angle | Straight |
| Approval | Approval |
| Approvals | CSA, UL |
| AWG Range | #18 |
| Barrel Inside Diameter | 0.15 in |
| Barrel Style | Insulation Grip |
| Barrel Type | Grip Sleeve |
| Base Product Number | PN18 |
| Brand | Pan-Term?, Panduit |
| Brand Name | Panduit |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color Family | Red |
| Compatible Grainger Par. | 376T26, 376U11, 376V66,. |
| Compatible Manufacturer. | CT-100, CT-1550, CT-155. |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Details | 1 x Ring Terminal |
| Connector Plating | Tin |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| Current Stock | 35 |
| Description | CONN RING CIRC 18-22AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-15509-ND |
| ECCN | EAR99 |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| For Wire Sizes | 22 AWG to 18 AWG |
| Gender | Female |
| Green Environmental Att. | Does Not Contain PVC |
| Gross Weight | 0.002 lbs |
| Hole Diameter | 0.17 in |
| Insulated | Insulated |
| Insulation | Insulation, Insulated |
| Insulation Color | Red, Insulation Color |
| Insulation Coverage | Partial Coverage |
| Insulation Diameter | -, 0.145 " |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| International Shipping | No |
| Item | Ring Terminal |
| Item Number | PN18-8R-C |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 0.9, 21.8 mm |
| Length - Overall | 0.860" (21.84mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part No. | PN18-8R-C |
| Manufacturer Part Number | PN18-8R-C |
| Manufacturer Product Nu. | PN18-8R-C |
| Manufacturer Standard L. | 4 Weeks, 6 Weeks |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Copper, Nylon - Insulat. |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 18 AWG |
| Mfr | Panduit Corp |
| Minimum Operating Tempe. | 221 Degrees F |
| Minimum Wire Size | 22 AWG |
| Mounting Angle | Straight |
| Mounting Method | Wire |
| Mounting Type | Free Hanging (In-Line) |
| Mpn | PN18-8R-C |
| Net Weight | 0.002 lbs |
| Overall Length | 0.86 ", 0.85 in |
| Overall Width | 0.31 " |
| Package | Bulk |
| Package Quantity | 100 |
| Packaged Quantity | 100 |
| Packaging | 100 Per Bottle, Bulk Pa. |
| Plating Material | Tin |
| Product | Ring Terminals |
| Product Category | Terminals |
| Product Name | PN Terminal Connector |
| Product Series | PN, Pan-Term Terminals |
| Product Status | Active |
| Product Type | Terminal Connector |
| Rated Voltage | 600V |
| Ring Width Ranges | 0.26 - 0.50 inches |
| RoHS Compliant | Yes |
| Seam | Grip Sleeved |
| Seam Style | Grip Sleeved |
| Series | Pan-Term, Pan-Term?, Pa. |
| SKU | ZO-G0287141 |
| Special Features | Barrel, Internal Barrel. |
| Standard Package | 100 |
| Standards | CSA C22.2 No. 65, MS250. |
| Strip Length | 1/4 in |
| Stud Size | Stud Size, #8, M4 (#8) |
| Stud/Tab Size | 8 Stud, 8 (M4) |
| SubCategory | Electrical |
| Temperature Rating | Temperature Rating |
| Terminal Connection | Crimp |
| Terminal Material | Copper |
| Terminal Shape | Ring Terminal |
| Terminal Type | Ring, Terminal Type, Ci. |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.032" (0.81mm) |
| Tongue Thickness | 0.03 in |
| Tongue Width | 0.31 in |
| Tongue Width - Wire Con. | 0.31 in |
| Type | Ring Tongue, Terminals,. |
| UL 94 Flammability Rati. | HB |
| UL Standards | UL 486A-486B |
| Unit Weight | 99.790 g |
| Unspsc | Unspsc |
| UNSPSC | 39121409 |
| UPC | 074983800049 |
| UPC Code | 074983800049 |
| UPC ID | UPC ID |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Volts AC | 600 |
| Width | 0.31 in, 0.3, 0.31 in. |
| Width - Outer Edges | 0.310" (7.87mm) |
| Wire Gauge | 18-22 AWG, 22-18 |
| Wire Range | 22 to 18 AWG, Wire Range |
| Wire Size | 22-18 AWG, 18-22 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.219 " |
