Schneider Electric M9F42206

B07CSDCDT2

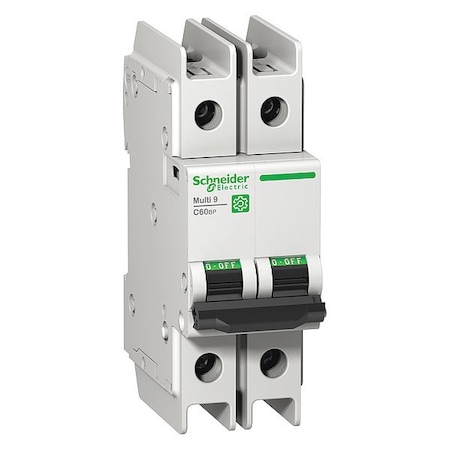

SCHNEIDER ELECTRIC M9F42206 Thermal Magnetic Circuit Breaker, C Curve, Multi 9 C60BP Series, 6 A, 2 Pole, 440 V, DIN Rail

SCHNEIDER ELECTRIC M9F42206 Thermal Magnetic Circuit Breaker, C Curve, Multi 9 C60BP Series, 6 A, 2 Pole, 440 V, DIN Railzoom

Attributes

Key Value
9 Mm Pitches4
[Ics] Rated Service Bre.4.5 kA 75 % EN/IEC 6094.
[Ue] Rated Operational .240 V AC 50/60 Hz || 41.
[Ui] Rated Insulation V.500 V AC EN/IEC 60947-2
[Uimp] Rated Impulse Wi.6 kVEN/IEC 60947-2
AC Voltage Rating240/277/480V AC
ActuatorToggle
Ambient Air Temperature.-30-70 ?C
Ambient Air Temperature.-40-80 ?C
Amps6 A
Applicationdistribution, Branch Ci.
BrandSchneider Electric
Breaking Capacity6 kA Icu 440 V AC EN/IE.
Catalog NumberM9F42206
CharacteristicC Curve
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.DIN Rail
ColorGray
ConnectionTunnel type terminal to.
Connections - Terminalstunnel type terminal to.
Contact Position Indica.yes
Control TypeToggle
Country of Origin00 - Unknown, France
Current Rating6 A
Curve CodeC
Curve TypeC
DC Voltage RatingNot Rated
Depth72 mm, 2.83 in
Device Applicationdistribution
Device Short NameC60BP
DisplayM9F42206 Multi 9 - C60B.
Earth-Leakage Protectionwithout
ECCNEAR99
Electrical Durability10000 cycles
Environmental DisclosureENVPEP1304004EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; Padlockab.
Frame Size63A/C60BP
Gross Weight0.57 lbs
Halogen Content Perform.Halogen free product
Height4.06, 103 mm
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemIEC Miniature Circuit B.
Item Typeminiature circuit-break.
Length4.06 in, 2.83
Length (Straight Wirewa.4.06 in
Length UOMInch
Line Rated Current6 A 25 ?C EN/IEC 60947-2
Local SignallingON/OFF indication
Made in USANo
Magnetic Tripping Limit8.5 x In +/- 20 % AC ||.
ManufacturerSchneider Electric
Max. AIR Rating14kA at 120/240V AC
Max. Wire Size8 AWG
Mechanical Durability20000 cycles
Mercury Freeyes
Min. Wire Size18 AWG
MountingDIN Rail
Mounting Modeclip-on
Mounting SupportDIN Rail
Mounting TypeDIN Rail Mount
Network TypeDC || AC
Number of Poles2
Number Of Protected Pol.2
Operating Altitude0...6561.68 ft (0...200.
Poles Description2P
Pollution Degree3 EN/IEC 60947-2
Product CertificationsIEC || CCC || CSA || UL
Product NameMulti9 C60
Product Or Component Ty.miniature circuit-break.
Provision For Padlockingpadlockable
RangeMulti9
Reach RegulationReference contains Subs.
Relative Humidity95-95 % 55-55 ?C
Rohs Exemption Informat.yes
SeriesC60BP, Multi 9 Series
Special FeaturesON/OFF indication
StandardEN/IEC 60947-2;GB 14048.
StandardsCSA C22.2 No 5, EN/IEC .
Sub BrandMulti 9 C60;C60BP
Suitability For Isolati.yes EN/IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionScrew Clamp
Tightening Torque2.5-2.5 N.m top or bott.
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
Tropicalisation2 IEC 60068-1
UNSPSC39121601
UPC785901693512
UPC Code785901693512
Voltage Rating240 V AC 50/60 Hz;415 V.
WeeeThe product must be dis.
Width1.42, 36 mm, 1.42 in
Wire Stripping Length14 mm top or bottom

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialautomationparts.comBRE-1527-E28.211In StockSCHNEIDER ELECTRIC28.21 @ 1
thumbzoomgordonelectricsupply.comM9F42206143.091In Stock10SQUARE D143.09 @ 1
thumbzoomblackhawksupply.comM9F42206146.811In StockSquare D146.81 @ 1
thumbzoomZoroG6526690156.991In StockSchneider Electric156.99 @ 1
thumbzoomkempstoncontrols.co.ukM9F42206159.21120151In StockSchneider159.2112015 @ 1
us.rs-online.com71041643174.21111Schneider Electric174.21 @ 1
thumbzoomGalcoM9F42206-SQD181.541In StockSquare D0.57181.54 @ 1
thumbzoommayerelectric.comSQDM9F42206181.991In StockSCHNEIDER ELECTRIC181.99 @ 1
thumbzoomNewark25AC3464190.2412SCHNEIDER ELECTRIC190.24 @ 1
Grainger482M35196.01110SCHNEIDER ELECTRIC196.0 @ 1
thumbzoomcrescentelectric.com812875238.413Schneider Electric238.4 @ 1
industrialrefrigerationparts.comM9F42206418.991In StockSchneider Electric418.99 @ 1
Graybar25876106469.41441In StockSquare D (Schneider Electric)469.4144 @ 1
