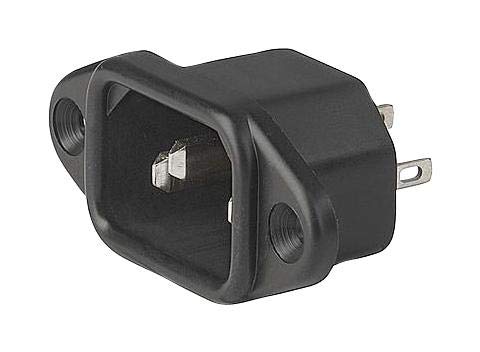

SCHURTER 6162.0046 Power Entry Connector, 6061 Series, Plug, 250 VAC, 10 A, Panel Mount, Solder

SCHURTER 6162.0046 Power Entry Connector, 6061 Series, Plug, 250 VAC, 10 A, Panel Mount, Solderzoom

Attributes

Key Value
Accomodates a FuseNo
Alternate Part No.693-6162.0046
Approval AgencycCSAus, ENEC, UL
BrandSCHURTER
Connectorsocket
Connector series6061
Connector StyleIEC 320-C14
Connector TypeReceptacle, Male Blades
Connector variantC14 (E)
Current - IEC10A
Current - UL15A
Current rating10A
Electrical mountingsoldering
Features-
Filter TypeUnfiltered - Commercial
FilteredNo
Fuse Holder, Drawer-
FusedNo
Ingress ProtectionIP20
IP ratingIP20
Kind of connectormale
ManufacturerSCHURTER
Manufacturer Part No.6162.0046
Material Flammability R.UL94 V-0
Mechanical mountingflange (2 holes),
MfrSchurter Inc.
Mounting TypePanel Mount, Flange
Number of Positions3
Operating temperature-25...70?C
Panel Cutout DimensionsRectangular - 27.30mm x.
Panel Thickness-
Part # Aliases6061X2220A140
Part StatusActive
ProductInlets
Product CategoryAC Power Entry Modules
Rated voltage250V AC
Series6061
StandardIEC 60320
Switch Features-
Switch FunctionNot Switched
TerminationSolder Eyelet
Type of connectorAC supply
Unit Weight9.370 g
Voltage - IEC250VAC
Voltage - UL250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com6162.00461.39171Schurter1.39 @ 1
Digi-Key486-3875-2-ND1.695059Schurter Inc.1.69 @ 50
thumbzoomTME6162.00461.911213SCHURTER1.91 @ 1
swatee.com6162.00462.63159Schurter2.63 @ 1
thumbzoomNewark23M20612.7135SCHURTER2.7 @ 1
