SKF F4B 100-FM

mpnF4B 100-FM
brandname: SKF Bearing
manufacturername: SKF Bearing

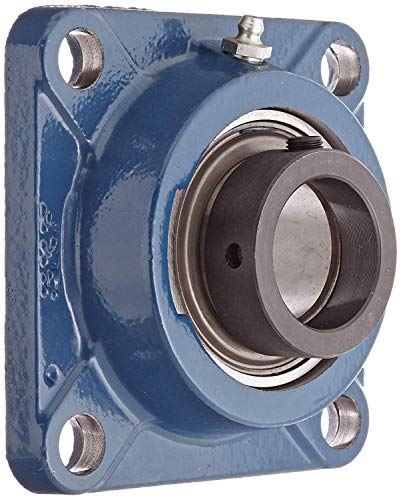

SKF F4B 100-FM Ball Bearing Flange Unit, 4 Bolts, Eccentric Collar, Regreasable, Contact Seal, Cast Iron, 1" Bore, 2-3/4" Bolt Hole Spacing, 3150lbf Dynamic Load Capacity

SKF F4B 100-FM Ball Bearing Flange Unit, 4 Bolts, Eccentric Collar, Regreasable, Contact Seal, Cast Iron, 1" Bore, 2-3/4" Bolt Hole Spacing, 3150lbf Dynamic Load Capacity

zoom

Brand: SKF
PartNumber: F4B 100-FM
Model: F4B 100-FM
PackageQuantity: 1
Binding: Misc.
Manufacturer: SKF
Label: SKF

Attributes

Key	Value
Bore Diameter	1 in
bore type:	Round
duty type:	Standard Duty
expansion type:	Non-Expansion Bearing (.
finish/coating:	Uncoated
Housing Material	Cast Iron
housing material:	Cast Iron
length through bore:	42.5 mm
Lock Type	Set Screw
locking device:	Eccentric Collar
lubrication type:	Lubrication Fitting
manufacturer upc number:	7316577343406
Material	Bearing Steel
maximum rpm:	7000 RPM
Mounting Type	Frame ; Wall Mount
mounting type:	Four-Bolt Flange
operating temperature r.	Maximum of +110
radial dynamic load cap.	3150 lbf
radial static load capa.	1760 lbf
replacement bearing:	YET 205-100
seal type:	Contact with Flinger
series:	FY
UPC Code	7316577343406

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	5830589	41.49	1	In Stock	14	SKF Bearing	1.72	41.49 @ 1
	factorysupplyoutlet.com	TU70VY	46.22	1	In Stock	25	SKF		46.22 @ 1
	us.rs-online.com	73229058	53.36	1	In Stock		SKF Bearings		53.36 @ 1
	motionindustries.com	00566799	62.29	1	In Stock		SKF		62.29 @ 1
