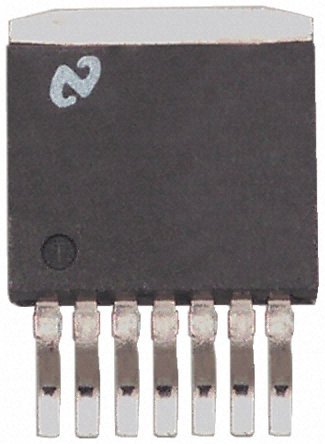

Texas Instruments TPS74401KTWR

mpnTPS74401KTWR
brandname: TEXAS INSTRUMENTS SEMI
manufacturername: TEXAS INSTRUMENTS SEMI

TPS74401KTWR

TPS74401KTWR

zoom

Brand: Texas Instruments
PartNumber: TPS74401KTWR
Model: TPS74401KTWR
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Alternate Part No.	595-TPS74401KTWR
Base Product Number	TPS74401
Brand	Texas Instruments
Category	Integrated Circuits (IC.
Control Features	Enable, Power Good, Sof.
Current - Output	3A
Description	IC REG LIN POS ADJ 3A D.
Detailed Description	Linear Voltage Regulato.
Development Kit	TPS74401EVM-118
Digi-Key Part Number	296-27069-2-ND - Tape &.
Dropout Voltage - Max	240 mV at 3 A
Input Bias Current - Max	2 mA
Input Voltage MAX	5.5 V
Input Voltage MIN	+ 0.8 V
Line Regulation	0.0005 % / V
Load Regulation	0.03 % / A
Manufacturer	Texas Instruments
Manufacturer Part No.	TPS74401KTWR
Manufacturer Product Nu.	TPS74401KTWR
Maximum Operating Tempe.	+ 125 C
Maximum Power Dissipati.	5.32 W
Mfr	Texas Instruments
Minimum Operating Tempe.	- 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Outputs	1 Output
Number of Regulators	1
Operating Temperature	-40?C ~ 125?C
Output Configuration	Positive
Output Current	3 A
Output Type	Adjustable
Output Voltage	796 mV to 3.6 V
Package	Tape & Reel (TR)
Package / Case	TO-263-8, D?Pak (7 Lead.
Package/Case	TO-263-7
Packaging	Reel
Product Category	LDO Voltage Regulators
Product Status	Last Time Buy
Protection Features	Over Current, Over Temp.
PSRR	73dB ~ 50dB (1kHz ~ 800.
Reference Voltage	0.804 V
Series	TPS74401, -
Supplier Device Package	DDPAK/TO-263-7
Voltage - Input (Max)	5.5V
Voltage - Output (Max)	3.6V
Voltage - Output (Min/F.	0.8V
Voltage Dropout (Max)	0.24V @ 3A
Voltage Regulation Accu.	1 %

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	1908299	2.64812	500	38		Texas Instruments		2.64812 @ 500
	Hotenda	H2784254	4.11526	500	38		Texas Instruments		4.11526 @ 500
	Arrow	TPS74401KTWR	6.425	1	54		Texas Instruments		6.425 @ 1
	Mouser	595-TPS74401KTWR	6.68	1	39		Texas Instruments		6.68 @ 1
	RS Delivers	661-4056P	9.18	1	38		Texas Instruments		9.18 @ 1
	swatee.com	TPS74401KTWR	12.34	1	777		Texas Instruments		12.34 @ 1
	Newark	27AJ0754	12.42	1	In Stock		TEXAS INSTRUMENTS		12.42 @ 1
