Thomson 7824157

mpn7824157
brandname: THOMSON
manufacturername: THOMSON

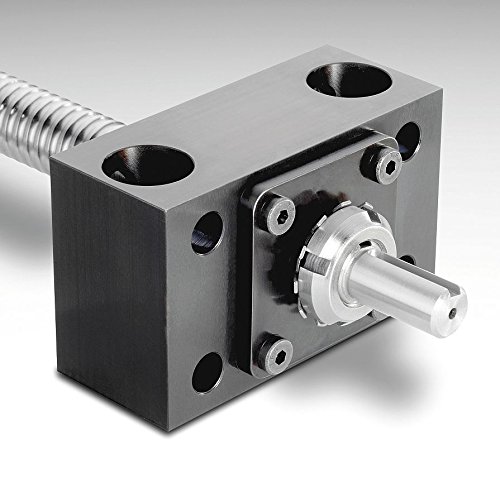

Thomson - 7824157 - Ball Nut End Block, Bore Dia 20 mm

Thomson - 7824157 - Ball Nut End Block, Bore Dia 20 mm

zoom

Brand: Thomson
PartNumber: 7824157
PackageQuantity: 1
Manufacturer: Thomson
Label: Thomson

Attributes

Key	Value
(hidden) product type b.	7824157 THOMSON
Bore Dia. (mm)	20
Dimension A	1.625 in
Dimension B	2.25 in
Dimension C	4.5 in
Dimension D	0.83 in
Dimension D1	20 mm
Dimension D2	2.2 in
Dimension F	1.87 in
Dimension G	2.4 in
Dimension H	1.625 in
Dimension J	1.75 in
Dimension K	1.438 in
Dimension L (In.)	2.75 in
Dimension M (In.)	0.469 in
Dimension N	0.656 in Thru 1.00 in C.
Dimension P	0.04 in
Dimension Q	2.7 in
Dimension R	0.938 in
For Ball Screw Dia. x L.	1.171 in x all
For Use With	2LGE6-7, 2LGF4-6, 2LGG4.
Item	Ball Nut End Block
Length through Bore (In.	2.2 in
Material	Carbon Steel
Mounting Hole Dia. (In.)	0.656/0.406
Mounting Surface to Sha.	1.44 in
Overall Height (In.)	2.75 in
Overall Length (In.)	4.5 in
Overall Width (In.)	2.7 in
Size (L x H x D)	4.5 in x 2.75 in x 2.7 .
Type	Quick Mount

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2695892	610.99	1	In Stock	11	Thomson	5.5	610.99 @ 1
	MRO Supply	1836072	621.58	1	In Stock		Thomson Linear		621.58 @ 1
	cbtcompany.com	7824157	773.86	1	In Stock		Thomson Industries		773.86 @ 1
	sustainablesupply.com	C1649857	954.68	1	In Stock		Thomson	5.5	954.68 @ 1
	motionindustries.com	07311579	982.68	1	In Stock		Thomson		982.68 @ 1
	Guardian	36695575	1071.14	1	In Stock		Thomson Industries		1071.14 @ 1
