WEG 00518ET3ECT184TF1-W2

mpn00518ET3ECT184TF1-W2
brandname: WEG
manufacturername: WEG

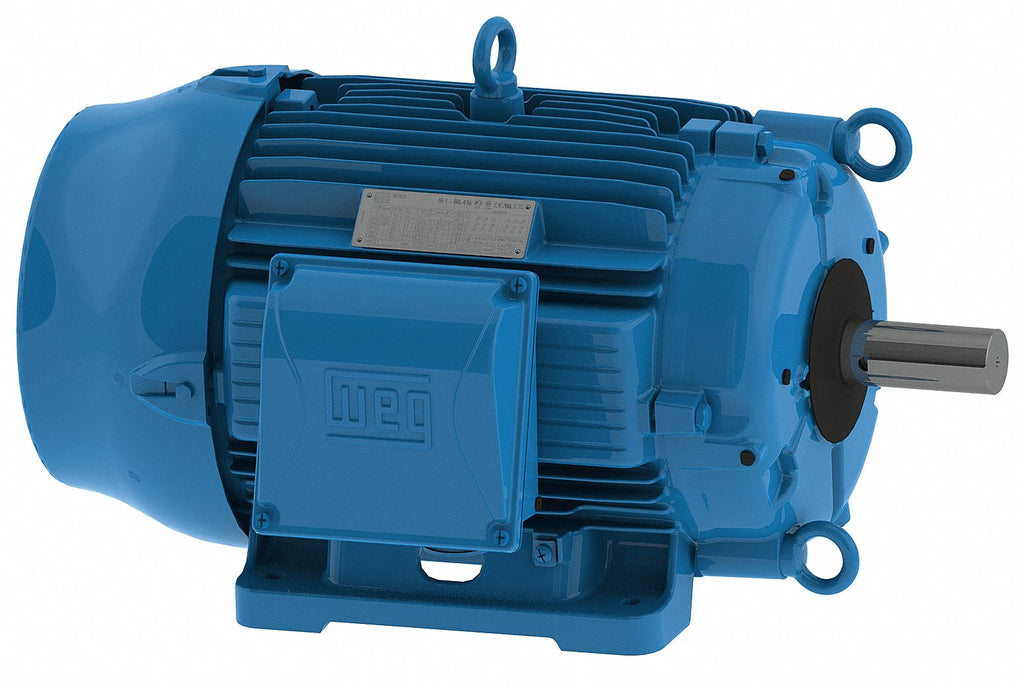

WEG CT Motor,5 HP,1755 RPM,230/460V (00518ET3ECT184TF1-W2)

Brand: WEG
PartNumber: 00518ET3ECT184TF1-W2
PackageQuantity: 1
Binding: Misc.
Manufacturer: WEG
Label: WEG

Attributes

Key	Value
Amperage Rating	14.3 to 12.9/6.45 A
Application Type	Air Handling Motors, Ch.
Bearing Type	Ball
Body Dia.	8 1/2 in
Classification	Cooling Tower
Composition	Cast Iron
Condition	New
Construction	Cast Iron
Degree of Protection	IP55
Description:	MOTOR 5HP 4P 182/4T WFF2
Dimensions	15.86 in L
Drive End Flange Type	Standard
Efficiency %	89.5 %
Enclosure	TEFC, IC411-TEFC, Total.
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	105.00
Family Series	WEG Electric Motors
FL Amps	6.45
FL Efficiency	89.5
Flanges	Without
Frame	182/4T, 184T
Frame Remarks	Footed, Cooling Tower, .
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	0 lbs
Hertz	60
Horsepower	5 hp
HP	5
Hz	60
Insulation Class	Class F
Item	Cooling Tower Motor
Item Condition	Factory New
Item Number	00518ET3ECT184TF1-W2
Length Less Shaft	13 1/8 in
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	00518ET3ECT184TF1-W2
Manufacturers Warranty .	3 yr
Material	Cast Iron
MFG Part #:	00518ET3ECT184TF1-W2
Model	11972802
Motor Application	Cooling Tower
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Iron
Motor Mounting Position	All Angle
Motor Mounting Type	Rigid Base
Motor Service Factor	1.25
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting	Foot Mount, Foot-mounte.
Mounting Type	Foot Mount, Footed
Nameplate RPM	1,755
NEMA Frame	184T
Net Weight	0 lbs
Nominal Voltage	208 VAC
Number of Poles	4
Number of Speeds	1
Output Rating	25 HP
Overall Length	15 7/8 in
Part Number	00518ET3ECT184TF1-W2
Phase	3, 3 ph
Product Type	General Purpose
Rotation	CW/CCW
RPM	1755, 1,800 RPM, 1800
RPM Range	1,701-1,800
Service Factor	1.25
Shaft Dia.	1 1/8 in
Shaft Length	2 3/4 in
Shaft Size	1-1/8 in Dia x 2-3/4 in.
Speed	1755 rpm
Speed (RPM)	1800
Standard	NEMA MG-1
Standards	CE, CSA Certified (LR38.
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	1800 rpm
Temperature Rating	-20 to 40 deg C
Terminal Box	Left position
UPC:	7909018258454
Voltage	230/460V AC, 575 V, 208.
Voltage (AC)	208 VAC
Voltage Compatibility	200-230/440V AC, 200-23.
Volts	208/230/460

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Walker Industrial	00518ET3ECT184TF1-W2	670.5	1	In Stock	17	WEG		670.5 @ 1
Square One	00518ET3ECT184TF1-W2	670.5	1	In Stock		WEG		670.5 @ 1
MRO Supply	1312748	706.03	1	In Stock		WEG		706.03 @ 1
motorsandcontrol.com	00518ET3ECT184TF1-W2	708.34	1	In Stock		WEG Electric	105.0	708.34 @ 1
Galco	00518ET3ECT184TF1-W2-WEG	734.27	1	In Stock		WEG Electric		734.27 @ 1
kscdirect.com	WEG 00518ET3ECT184TF1-W2	760.97	1	In Stock		WEG ELECTRIC CORP		760.97 @ 1
industrialrefrigerationparts.com	00518ET3ECT184TF1-W2	771.15	1	In Stock		WEG		771.15 @ 1
Zoro	G4479562	816.99	1	16		Weg	103.0	816.99 @ 1
AmazonTP	B07D5QW946	828.55	1	In Stock	2	Weg Electric Motors		828.55 @ 1
Radwell	00518ET3ECT184TF1-W2	840.0	1	In Stock		WEG		840.0 @ 1
Dealers Electric	00518ET3ECT184TF1-W2	848.02	1	In Stock		Weg	105.0	848.02 @ 1
Purvis	00518ET3ECT184TF1-W2	908.3	1	In Stock		WEG		908.3 @ 1
sustainablesupply.com	C1544402	1175.08	1	In Stock		WEG	103.0	1175.08 @ 1
National Supply Network	B888140	1200.08	1	In Stock		Weg Electric Motors		1200.08 @ 1
Raptor Supplies	AA8MCL	1495.438893	1	In Stock		WEG		1495.438893 @ 1
