- mpn8334 060100
- brandname: Belden
- manufacturername: Belden

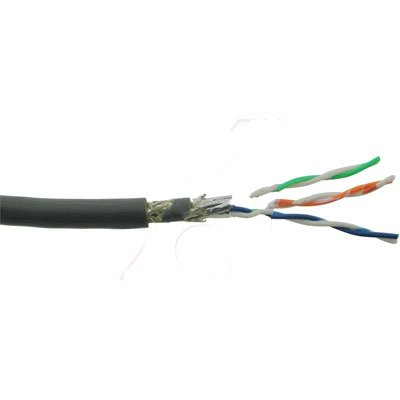

"Belden 8334 060100 Cable, Multipair; 24 AWG; 7x32; Foil Braid Shield; PVC Ins.; 4 PAIRS"
- Brand: Belden
- PartNumber: 8334 060100
- Model: 8334 060100
- PackageQuantity: 1
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Alternate Part No. | 566-8334-100-60 |
| Application | For computer and EIA RS. |
| Base Product Number | 8334 |
| Brand | Belden Wire & Cable |
| Cable Type | STP, Multi-Pair |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Strand | 7/32 |
| Configuration | 4 Pair |
| Diameter | 0.288 in |
| Features | -, Low capacitance comp. |
| Insulation Material | Polyvinyl Chloride (PVC. |
| Jacket (Insulation) Dia. | 0.272" (6.91mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0350" (0.889mm) |
| Jacket Color | Chrome |
| Jacket Colour | Chrome |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Length | 100.0' (30.5m), 100 ft |
| Manufacturer | Belden Wire & Cable |
| Manufacturer Part No. | 8334 060100 |
| Mfr | Belden Inc. |
| Number of Conductors | 8, 8 (4 Pair) |
| Number of Pairs | 4 |
| Operating Temperature | -30 to +80 ?C, -30?C ~ . |
| Outer Diameter | 0.288 in. |
| Outside Diameter | 6.91 mm |
| Package | Spool |
| Packaging | Coil |
| Part Status | Active |
| Product Category | Multi-Paired Cables |
| Product Header | Overall Foil/Braid Shie. |
| Ratings | UL Style 2464 |
| Series | 8334 Series, Classics, . |
| Shield Coverage | 100%, 65% |
| Shield Material | Aluminum; Copper, Tinne. |
| Shield Type | Foil, Braid |
| Shielding | Shielded, Braid, Foil |
| Standards | UL AWM Style 2464 ; NEC. |
| Stranding | 7 x 32, 7x32 |
| Temperature, Rating | -30 to 80 C |
| Type | Networking |
| Unit Weight | 2.313 kg |
| Usage | Computer |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire Gauge - AWG | 24 |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | BDN 8334 060100 | 3.68 | 1 | 4 | | Belden | | 3.68 @ 4 |
| swatee.com | 8334 060100 | 287.52 | 1 | 4 | | Belden Wire & Cable | | 287.52 @ 4 |
| Digi-Key | 7389194 | 305.61 | 1 | 4 | | Belden Inc. | | 305.61 @ 4 |
| us.rs-online.com | 70005610 | 477.05 | 1 | 4 | | Belden | | 477.05 @ 4 |
 | Newark | 87K1729 | 558.55 | 1 | 4800 | | BELDEN | | 558.55 @ 4 |
