CAI - BURNDY YA262N

mpnYA262N
brandname: Burndy
manufacturername: Burndy

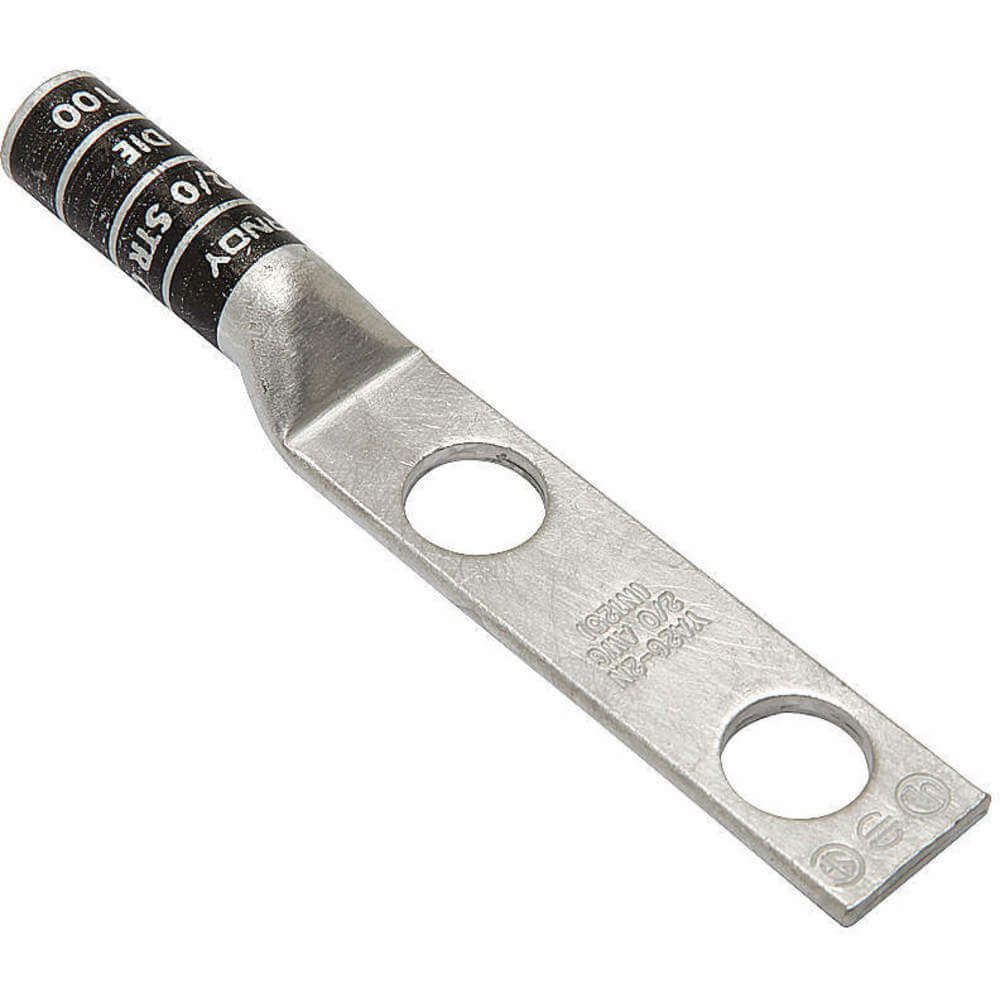

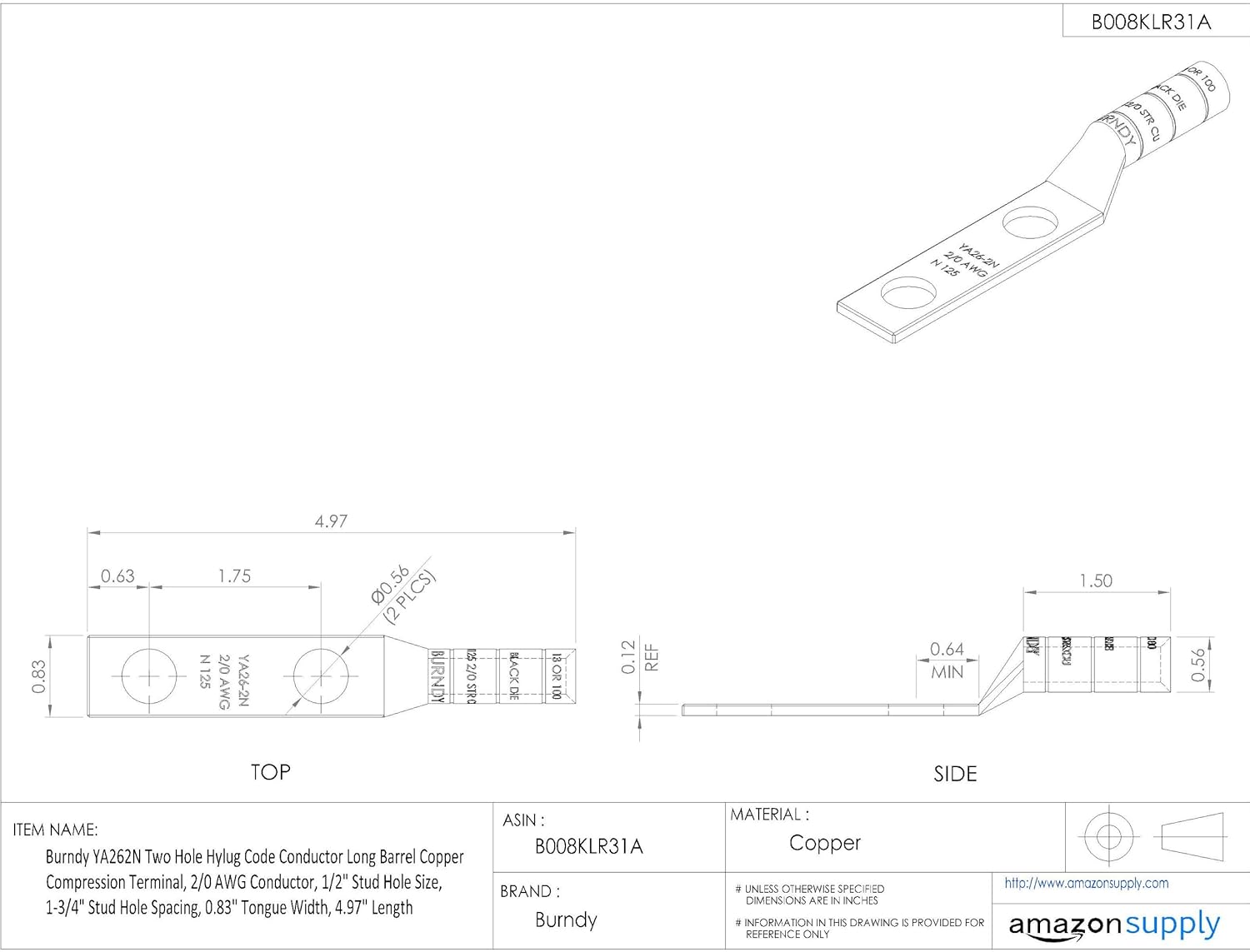

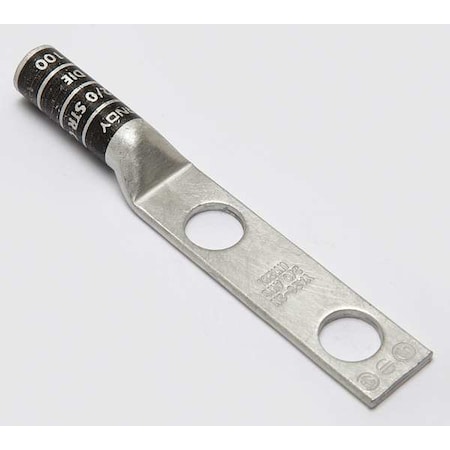

BURNDY 2/0 Two-Hole Lug Compression Connector, Straight Barrel, Black

Brand: CAI - BURNDY
PartNumber: YA262N
PackageQuantity: 1
Manufacturer: CAI - BURNDY
Label: CAI - BURNDY

Attributes

Key	Value
Application	Wire Termination
Approvals	CSA, UL
Barrel Length	Long
Barrel Outside Diameter	0.56 in
Barrel Size	Long
Barrel Style	Chamfered
Brand	Burndy-US, a Hubbell af.
Cable Size	2/0 AWG
Catalog Number	YA262N
Color	Pink
Color Code	Black
Color Family	Black
Colour Code	Black
Connector Type	Terminal, Straight Barr.
Contact Finish	Tin
Country of Origin	United States, US - Uni.
Country of Origin (subj.	United States
Cross Reference Products	CLND-2/0-12-134
Die Code	13
Die Color	Black
Die Index	13
ECCN	EAR99
Family Series	Burndy Terminals, YA Se.
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Long
Finish	Tin-Plated
For Conductor Material	Copper
For Stranded Copper Wir.	2/0 AWG
For Stranded Copper Wir.	2/0 AWG
For Stud Size	1/2 in
For Wire Size	2/0 AWG
For Wire Type	Stranded
Gross Weight	0.135 lbs
GTIN	00781810502808
Hole Center to Center	1.75 in
Hole Center to End	0.63 in
Hole Size	0.56 in
Inspection Hole	No
Insulated	Non-Insulated
Item	Two-Hole Lug Compressio.
Item Number	YA262N
Item Type	Long Barrel, Tin Plated
Length	4.97"
Length (Straight Wirewa.	4.97 in
Lug Compression Connect.	Two-Hole Lug Compressio.
Lug Wire Size	2/0 AWG
Made in USA	Yes
Manufacturer	Burndy, Burndy, a Hubbe.
Manufacturer Part Number	YA262N
Material	Copper
Max Temp	194 ?F
Maximum Operating Tempe.	194 Degrees F
Maximum Voltage	35 kVAC, 35 kV AC
Net Weight	0.135 lbs
Number of Holes	2
Overall Length	4.97 in
Overall Width	0.83 in
Peep Hole	No
Physical Attribute - Nu.	2
Physical Attribute - To.	Standard
Plate Material	Electro Tin
Plated	Y
Plating Material	Tin
Plating Type	Tin - Electro Plated
Product Series	YA
RoHS Compliant	Yes
Special Features	Terminal, Features: UL .
Standard	UL 486A-486B
Standards	CSA, UL467, UL, CSA Cer.
Strip Length	1 9/16 in
Stud Hole Spacing	1.75 in.
Stud Size	1/2 in., 1/2 in
Stud Spacing	1.75
Sub Brand	HYLUG
Terminal Material	Copper
Terminal Type	Ring
Termination Style	Crimp
Tongue Angle	Straight
Tongue Length	1.27 in
Tongue Style	Standard
Tongue Thickness	0.11 in
Tongue Width	0.81 ", 0.83 in
Tongue Width Ranges	0.76 - 1.00 inches
Trade Name	HYLUG?
Type	Long Barrel, Tin Plated
UNSPSC	39121405
UPC	781810502808
UPC Code	781810502808
Use With	Copper
Voltage Rating	35
Volts	600 V
Width	0.83"
Wire Size	1/0 AWG
Wire Size (AWG)	1/0 AWG
Wire Size Range	2/0 AWG - 2/0 AWG
Wire Strip Length	1.437 "
