Infineon IRF9Z34NSPBF

mpnIRF9Z34NSPBF
brandname: Infineon Technologies
manufacturername: Infineon Technologies

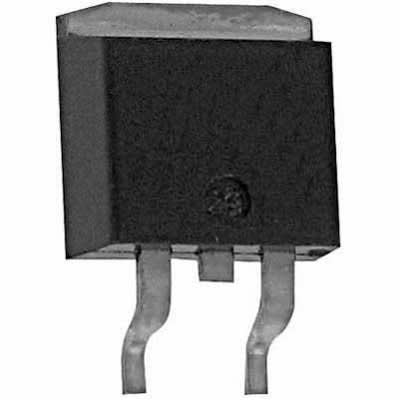

INFINEON IRF9Z34NSPBF Discretes mosfets Single P-Channel 100 V 3.8 W 35 nC Hexfet Power Mosfet Surface Mount - D2PAK-3-1 item(s)

INFINEON IRF9Z34NSPBF Discretes mosfets Single P-Channel 100 V 3.8 W 35 nC Hexfet Power Mosfet Surface Mount - D2PAK-3-1 item(s)

zoom

Brand: Infineon
PartNumber: IRF9Z34NSPBF
Model: IRF9Z34NSPBF
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: INFINEON
Label: INFINEON

Attributes

Key	Value
Channel Type	P
Configuration	Dual Drain
Dimensions	10.67 x 9.65 x 4.83 mm
Drain Current	-19 A
Drain to Source On Resi.	0.1 ?
Drain to Source Voltage	-55 V
Forward Transconductance	4.2 sec
Forward Voltage, Diode	-1.6 V
Gate to Source Voltage	?20 V
Height	0.19" (4.83mm)
Input Capacitance	280 pF @ -25 V
Length	0.42" (10.67mm)
Maximum Operating Tempe.	+175 ?C
Minimum Operating Tempe.	-55 ?C
Mounting Type	Surface Mount
Number of Elements per .	1
Number of Pins	3
Package Type	D2PAK
Polarization	P-Channel
Power Dissipation	68 W
Product Header	Hexfet? Power MOSFET
Temperature Operating R.	-55 to +175 ?C
Total Gate Charge	35 nC
Turn Off Delay Time	30 ns
Turn On Delay Time	13 ns
Typical Gate Charge @ V.	Maximum of 35 nC @ -10 V
Voltage, Breakdown, Dra.	-55 V
Width	0.38" (9.65mm)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	166-1028	0.9912	1	100		Infineon		0.9912 @ 100
	Allied Electronics	70017190	1.06341	950	100		Infineon		1.06341 @ 950
