Johnson Controls A19AAB-7C

B07GBVK76T

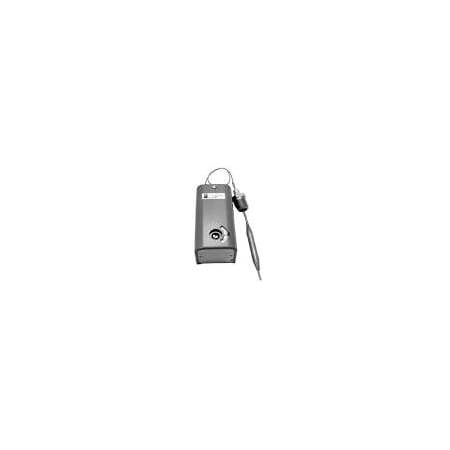

Johnson Controls A19AAB-7C Penn Series A19 High Range Temperature Control, SPST Open High Oven Thermostat Switch Action, 38-149?C Range, 3.9? Differential, 3/16" x 9-1/2", Copper 6' Capillary

Johnson Controls A19AAB-7C Penn Series A19 High Range Temperature Control, SPST Open High Oven Thermostat Switch Action, 38-149?C Range, 3.9? Differential, 3/16" x 9-1/2", Copper 6zoom

Attributes

Key Value
ApplicationHeat or Cool
Bulb Diameter1/4 in
Bulb Length9 1/2 in
Capillary Length72 in, 6 '
Capillary Length/Bulb D.6 ft Capillary, 9 1/2 i.
Changeover TypeManual
CommentsOven Thermostat
Compatible System TypeHot Water Heating Contr.
Contact Rating120V AC, 208V AC, 240V .
Contact Rating Resistiv.22 A
Contact Rating Resistiv.22 A
Contact Rating Resistiv.22 A
Contact TypeSnap Action
Control Range100 Degrees to 300 Degr.
Control TypeKnob
Country of Origin (subj.United States, Mexico
Differential7 Degrees F
Differential Temperature7 ?F
Differential TypeFixed
Electrical Connection T.Hardwired, Screw Termin.
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Family SeriesJohnson Controls Contro.
Full Load Amps @ 120V AC16 A
Full Load Amps @ 240V AC8 A
Gross Weight1.155 lbs
ItemRemote Bulb Temp Contro.
Item NumberA19AAB-7C
Locked Rotor Amps @ 120V96 A
Locked Rotor Amps @ 240V48 A
ManufacturerJohnson Controls
Manufacturer Part NumberA19AAB-7C
Max Temperature350 ?F
Maximum Control Tempera.300 Degrees F
Maximum Operating Tempe.350 Degrees F
Minimum Control Tempera.100 Degrees F
Minimum Operating Tempe.-35 Degrees F
Mounting TypeSurface Mount
Net Weight1.155 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Output1 SPST
Overall Depth1 3/4 in
Pilot Duty Rating125 VA @ 24 to 600V AC
Product SeriesA19 High Range Control
Resistive Amps @ 208V AC22 A
Sensor LocationRemote
Sensor TypeHydraulic Capillary Bul.
Setpoint Temp Range100-300 ?F
Stages1H/1C
Switch ActionOpen on Rise
Switch TypeSPST
Switch Type/ActionSPST, Open on Rise
Temperature Control Ran.100 Degrees to 300 Deg.
Temperature Differential7 Degrees F
Temperature ScaleFahrenheit/Celsius
Thermostat Switch TypeSPST
Thermostat TypeHigh-Range Indoor Singl.
Voltage120/208/240VAC, 120 to .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
alliedcontrols.comA19AAB-7C224.151In StockJohnson Controls224.15 @ 1
thumbzoomcappusa.com187298224.491In StockJohnson Controls224.49 @ 1
thumbzoomblackhawksupply.comA19AAB-7C226.491In StockJohnson Controls226.49 @ 1
thumbzoomsustainablesupply.comC2028283239.231In StockJohnson Controls2.0239.23 @ 1
hvacdiscountstore.comJOH--A19AAB-7C239.371In StockJOHNSON239.37 @ 1
thumbzoomVoomi SupplyA19AAB-7C253.981In StockJohnson Controls253.98 @ 1
thumbzoomGalcoA19AAB-7C-JHSN289.691In StockJohnson Controls1.155289.69 @ 1
thumbzoomZoroG7024824321.631In Stock26Johnson Controls321.63 @ 1
thumbzoomNational Supply NetworkB476239327.631In StockJohnson Controls Inc327.63 @ 1
KeleA19AAB-7C344.241In StockJohnson Controls344.24 @ 1
grainger.caJHCA19AAB7C358.671551021In StockJOHNSON CONTROLS1.5358.67155102 @ 1
