- mpn143TTGN7076
- brandname: Marathon Motors
- manufacturername: Marathon Motors

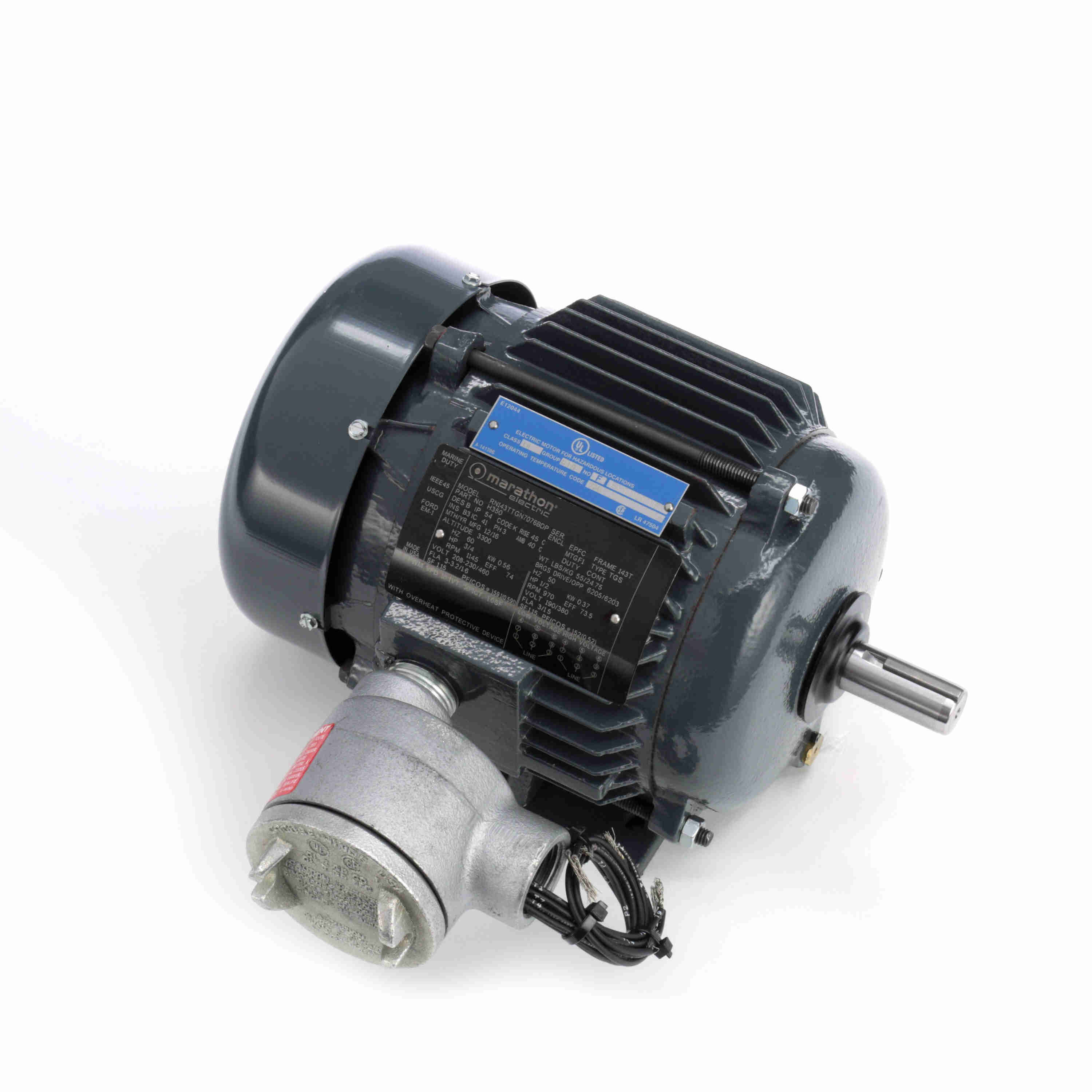

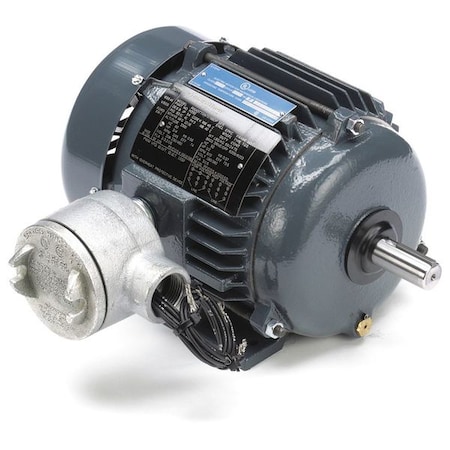

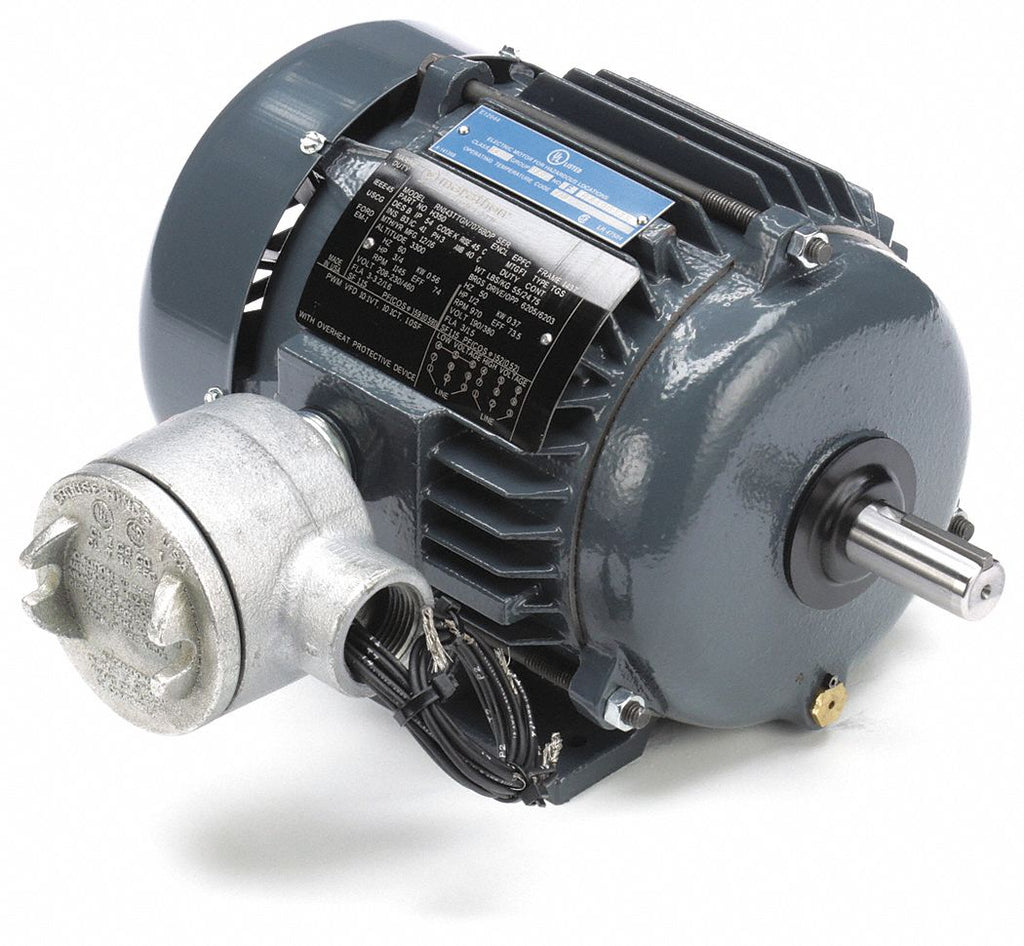

Marathon 143TTGN7076 Hazardous Duty Motor, 3 Phase, Explosion Proof, Division 1, Class I and II, Groups D, F and G, Rigid Base, Ball Bearing, 3/4 hp, 1200 RPM, 1 Speed, 208-230/460 VAC, 143T Frame
- Brand: Marathon Electric
- PartNumber: 143TTGN7076
- Model: MH350
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Application | Application |
| Approval | Approval |
| Classification | Hazardous Duty Division. |
| Composition | Cast Iron |
| Conduit Box Location | Exterior |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 74 % |
| Enclosure | XPFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 143T |
| Frame Material | Cast Iron, Frame Materi. |
| Frame Remarks | Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 3.2-3.0/1.60 |
| Gross Weight | 0 lbs |
| Hazardous Location Class | 1 D / 2 F,G |
| Hazardous Location Divi. | Division 1 |
| Horsepower | 3/4 hp |
| HP | .75, 3/4 |
| Hz | 60 |
| Includes | (11) 12 in Leads throug. |
| Ins. Class | B |
| Insulation Class | Insulation Class |
| Item | Hazardous Location Motor |
| Item Condition | Factory New |
| Item Number | 143TTGN7076 |
| Kilowatts | 0.56 kW |
| Length Less Shaft | 10 3/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | H350 |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Mounting Type | Footed |
| Nameplate RPM | 1,145 |
| NEMA Design | B |
| NEMA Frame | 143T |
| Net Weight | 55 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 74 % |
| Nominal Voltage | 208 VAC, 240 VAC, 277 V. |
| Not Inverter Duty | Not Inverter Duty |
| Number of Speeds | Number of Speeds |
| Overall Length | 12 1/2 in |
| Phase | 3, Three |
| RPM | 1,145 RPM, 1200 |
| RPM Range | 1,101-1,200 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 5/16 in |
| Speeds | Speeds |
| Standards | CSA Certified, UL Listed |
| Temp. Code | T3B |
| Unspsc | Unspsc |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage (AC) | 208 VAC, 230 VAC, 460 V. |
| Voltage Compatibility | 208-220/440V AC, 208-23. |
| Volts | 208-230/460 |
| Weight | 55 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G5629303 | 748.3 | 2 | In Stock | 70 | Marathon Motors | 55.0 | 748.3 @ 2 |
 | Galco | 143TTGN7076-MARA | 754.5 | 1 | In Stock | | Marathon Electric | 55.0 | 754.5 @ 1 |
 | Dealers Electric | 143TTGN7076 | 767.7 | 1 | In Stock | | Marathon Electric | 55.0 | 767.7 @ 1 |
 | mecampbell.com | 143TTGN7076 | 778.08 | 1 | In Stock | 33 | Marathon Motors | | 778.08 @ 1 |
 | sustainablesupply.com | C2792126 | 956.13 | 1 | In Stock | | Marathon | 55.0 | 956.13 @ 1 |
 | pumpproducts.com | 143TTGN7076 | 1143.92 | 1 | In Stock | | Marathon | | 1143.92 @ 1 |
 | Raptor Supplies | AC8GEK | 1391.592384 | 1 | In Stock | | MARATHON MOTORS | | 1391.592384 @ 1 |
